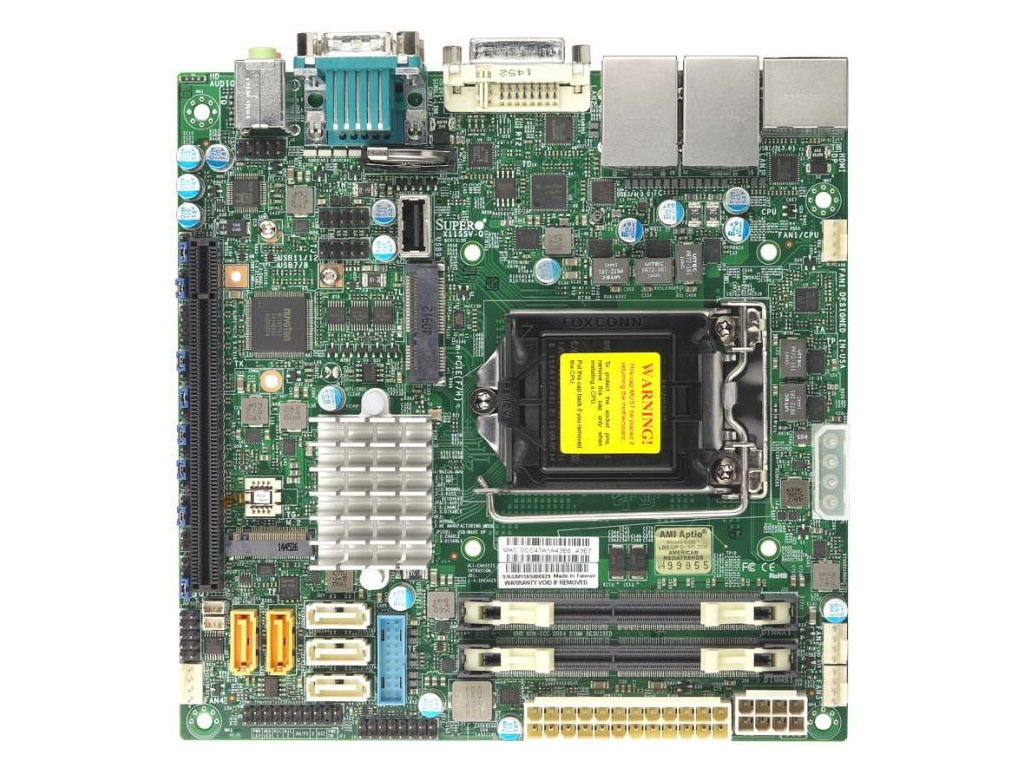

SUPERMICRO MB E3-1585v5, C236, 2xSO-DIMM DDR4 ECC, 4xSATA3, PCIe 3.0 x16, 1xM.2, DVI-A, 4x LAN, IPMI, MBD-X11SSV-M4F-O

Detailní popis produktu

Product SKUs

MBD-X11SSV-M4F X11SSV-M4F



Physical Stats

Form Factor Mini-ITX

Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)



Processor/Cache

CPU Intel® Xeon® processor E3-1585 V5
Socket FCBGA1440 supported; QPI up to 8.0GT/s; CPU TDP support 65W



System Memory

Memory Capacity
Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type 2133/1866/1600MHz ECC DDR4 SODIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C236

SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel RSTe

Network Controllers Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT
IPMI Shared LAN with I210-AT
Dual LAN with Intel® Ethernet Controller I350-AM2


Audio ALC 888S HD Audio

Graphics Aspeed AST2400 BMC
*Intel Iris Pro P580 for VHD*



Input / Output

USB 5 USB 2.0 ports (4 via header, 1 Type A)
4 USB 3.0 ports (4 rear)


Video Output 1 DVI - A
1 Aspeed AST2400 BMC
*Intel Iris Pro P580 for VHD*

Serial Port / Header
1 COM Port in RJ45 Socket


TPM 1 TPM 1.2 Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16
Mini PCI-E with mSATA support Bifurcation support on PCIE x16 slot


M.2 Interface: PCIe 3.0 x4 and SATA
Form Factor: 2242, 2280



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 5.0
DMI 2.3
PCI 3.0
Plug and Play (PnP)
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
USB Keyboard support



Management

Software IPMI2.0, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT

FAN Total of 3 fan headers supporting up to 3 fans
Fan speed control
Pulse Width Modulated (PWM) fan connectors
PWM fan speed control
Status monitoring for on/off control
System level control
Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI

LED N/A

Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, VHD, WOL



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SSV-M4F 1 X11SSV-M4F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00056-0N 1 Standard I/O Shield for X11SSV-M4



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SSV-M4F 1 X11SSV-M4F Motherboard
QRG MNL-1889-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00056-0N 1 Standard I/O Shield for X11SSV-M4



Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00066-0B -- 1U I/O Shield for X11SSV-M4 with EMI Gasket in CSE-504/505
mSATA 64GB SSD-DM064-PHI -- Supermicro mSATA 64GB MLC
mSATA 128GB SSD-DM128-SMCMVN1 -- Supermicro mSATA 128GB MLC
TPM security module AOM-TPM-9655V -- TPM Module with Infineon 9655, RoHS/REACH,PBF;
Vertical



Chassis (Optimized for X11SSV-M4F)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower

SC504-203B
SC504-203B

SC505-203B
SC505-203B



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SSV-M4F)

Server Name

SYS-5019S-TN4
