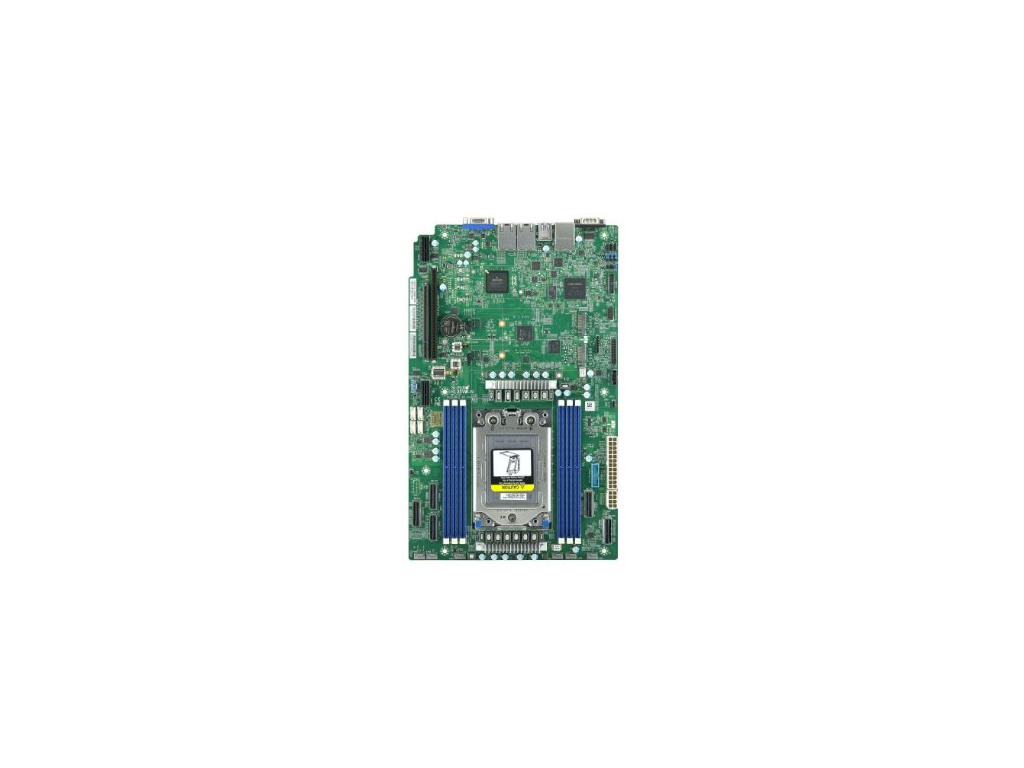

SUPERMICRO MB 1xSP6 (Epyc 8004), 6x DDR5, (3xMCIO Pcie5x8) (2xMCIOx8 Sata), 2xM.2, PCIe 5.0 (1x16 1x32) 2x1Gb,IPMI WIO, MBD-H13SVW-N-O
Kód: ALIASBSRMBDH13SVWNO
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
| Product SKUs | ||
| MBD-H13SVW-N | ||
| Physical Stats | ||
| Form Factor | Proprietary WIO | |
| Dimension | 8.15" x 13.05" (20.7cm x 33.15cm) | |
| Processor | ||
| CPU | AMD EPYC™ 8004 series Processors | |
| Single Socket SP6 supported, CPU TDP supports Up to 225W TDP | ||
| Core | Up to 64 cores, 128 threads | |
| System Memory | ||
| Memory Capacity | 6 DIMM slots | |
| Up to 576GB ECC Registered RDIMM, DDR5-4800MHz | ||
| Memory Type | 4800 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 4800MHz (1DPC) | |
| DIMM Sizes | 8GB, 16GB, 32GB | |
| Memory Voltage | 1.1V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T | |
| Single LAN with Realtek RTL8211F PHY | ||
| Input / Output | ||
| USB | 6 USB 3.0 port(s) (4 USB; 2 via header) | |
| Video Output | 1 VGA port(s) | |
| TPM | 1 TPM Header | |
| Others | 3 MCIO (PCIe 5.0 x8) Port(s) | |
| 2 MCIO (PCIe 5.0 x8/SATA3) Port(s) | ||
Expansion Slots | ||
| PCIe | 1 PCIe 5.0 x16 Right Riser Slot, | |
| 1 PCIe 5.0 x32 Left Riser Slot | ||
| M.2 | M.2 Interface: 2 PCIe 3.0 x4 | |
| Form Factor: 2280/22110 | ||
| Key: M-Key | ||
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.4 | |
| SMBIOS 3.5 or later | ||
| UEFI 2.8 | ||
| Plug and Play (PnP) | ||
| USB Keyboard support | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| PC Health Monitoring | ||
| Voltage | VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby | |
| LED | UID/Remote UID | |
| BMC/IPMI Heartbeat LED | ||
| Other Features | RoT | |
| FAN | 6x 4-pin fan headers (up to 6 fans) | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (°F - °F) | |
| Non-Operating Temperature Range | -40°C - 70°C (°F - °F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Optional Parts | ||
| Part Number | ||
| TPM security module (optional, not included) | AOM-TPM-9670V | |
Standard Parts (Parts Included) | ||
| Motherboard / Chassis | MBD-H13SVW-NT | Super H13SVW-NT Motherboard |
| Motherboard / Chassis | CSE-815BTS-R000WNP | 1U Chassis |
| Backplane | BPN-NVME5-LA15-S4 | 1U 4-Slot 3.5 |
| Cable | CBL-CDAT-0728 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 |
| Cable | CBL-MCIO-1270OT4S2-85 | MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS |
| Cable | CBL-0335L | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF |
| Cable | CBL-PWCD-0160-IS | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Fan | FAN-0163L4 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
| Front Panel | MCP-280-00033-0N | Universal Thermal sensor kit with 80cm I2C cable |
| Front Panel | FPB-FP815U | 815 UIO front control board (U) |
| Power Supply | PWS-861A-1R | 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm |
| Power Supply | MCP-250-81502-0N | SC815 Redundant Power Distributor Cover |
| Riser Card | RSC-W-66G5 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R |
| Riser Card | RSC-WR-6G5H | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS |
| Software | SFT-OOB-LIC | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P0062P-1 | 1U Passive CPU Heat Sink for AMD Socket SP6 Processors |
| *Power Distributor | PDB-PT116-SL8824 | Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths |
| *Fan Holder | CSE-PT0135 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS |
| *Fan Holder | MCP-340-00035-0B | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
| *Peripheral Drive | CSE-PT93L-B | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| *Drive Tray(s) | MCP-220-00075-0B | Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rear Window | MCP-240-00202-0N | 1U WIO rear window to support top-load riser bracket for SC815B,SC116B |
| *Rail Set | MCP-290-00016-0N | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N |
| *Rail Set | MCP-290-00054-0N | Rail set, quick/quick, optional for 1U 17.2 |
| *Air Shroud | MCP-310-81506-0B | Air block for 1U WIO SC815B with X13SEW |
| 2.5" to 3.5" Toolless Converter Tray | MCP-220-00118-0B • | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
| GPU Kit | CBL-PWEX-1240 | GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM |
| GPU Kit | CBL-0424L • | GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm |
| GPU Kit | MCP-310-81504-0B | 1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4 |
| NVMe Cable (Drive Bay 0-1) | CBL-MCIO-1235M5Y • | MCIO (x8 to 2 x4) STR,25CM,85OHM |
| NVMe Cable (Drive Bay 2-3) | CBL-MCIO-1225M5Y • | MCIO (x8 to 2 x4) STR,25CM,85OHM |
| Software | SFT-DCMS-Single | DataCenter Management Package (per node license) |
EAN: 672042909384
Doplňkové parametry
| Kategorie: | Socket SP6 |
|---|---|
| Záruka: | 3 roky |
| Hmotnost: | 1.58 kg |
| EAN: | 672042909384 |
| Kód výrobce: | MBD-H13SVW-N-O |
