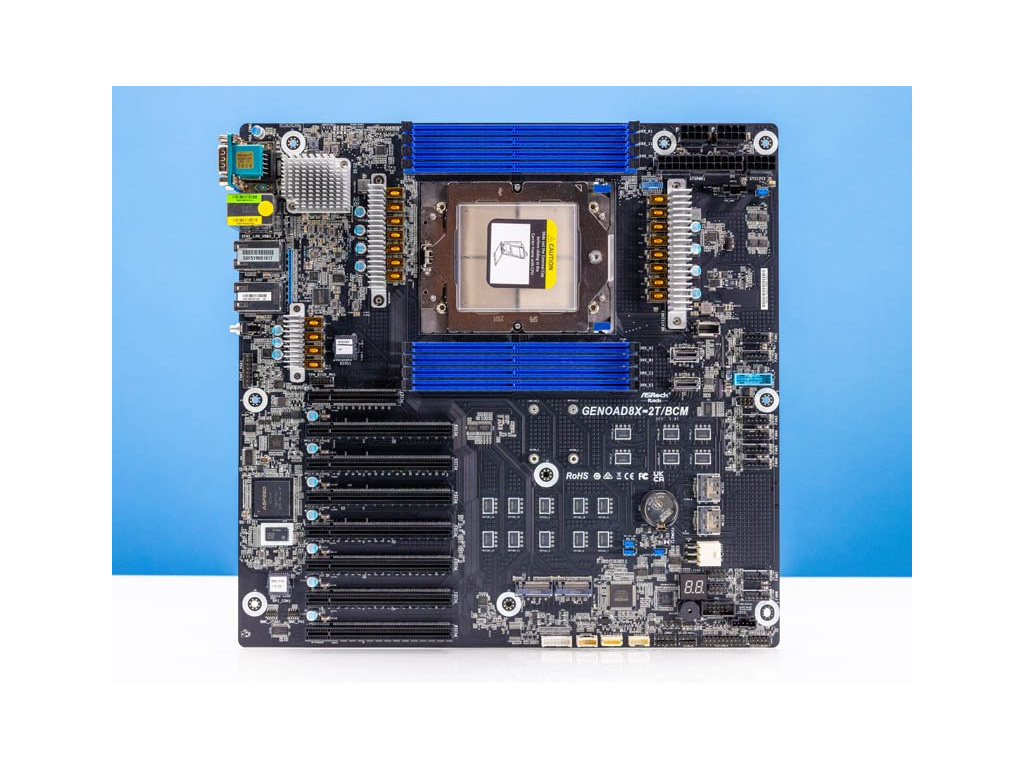

ASRock Rack GENOAD8 1x SP5, 8x DDR5 ECCreg, 16x SATA, 2x M.2(22110,2280), 7x PCIe3, 2x 10Gb LAN, IPMI, GENOAD8X-2T/BCM
Kód: ALIASBAGENOAD8X2TBCM
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
SPECIFICATIONS
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12.63" x 13" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Socket | Single Socket SP5 (LGA 6096) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 96GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | 4800 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 / CXL1.1 x16 SLOT5: PCIe5.0 x16 SLOT4: PCIe5.0 / CXL1.1 x16 SLOT3: PCIe5.0 x16 SLOT2: PCIe5.0 / CXL1.1 x16 SLOT1*: PCIe5.0 x16 SLOT0: PCIe5.0 / CXL1.1 x16 *SLOT1 shared lanes with 1 MCIO and 1 M.2. SLOT1 auto-switch to PCIe5.0 x8 when either 1 MCIO or 1 M.2 populated. |
| PCIe x 8 | SLOT7**: PCIe5.0 x8 **SLOT7 share lanes with 2 MCIO. When SLOT7 occupied, 1 MCIO will not function and 1 MCIO can be enabled by jumper setting. When selecting 1 MCIO, SLOT7 will switch to PCIex4. |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280 form factor 1 M-key* (PCIe5.0 x4), supports 22110/2280 form factor |
| Others | 2 MCIO** (PCIe5.0 x4 or 4 SATA 6Gb/s) 1 MCIO (PCIe5.0 x4 or 4 SATA 6Gb/s) 1 MCIO* (PCIe5.0 x4) |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 9004 (16 SATA 6Gb/s): 3 MCIO, 4 SATA via optional M2U2_HD_G4 M.2 device |
| Ethernet | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| VGA header | 1 |
| Speaker Header | 1 (4-pin) |
| Fan Header | 8 (6-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, TR1 Temperature sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | VCORE,VCCSA,VCCM,3V, 5V, 12V, +1.05V_PCH_AUX,+BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP |
| Supported OS | |
| OS | Microsoft® Windows: - Server 2019 (64 bit) - Server 2022 (64 bit) Linux: - RedHat Enterprise Linux Server 8.6 (64 bit) / Server 8.7 (64 bit) / Server 9.0 (64 bit) / Server 9.1 (64 bit) - SUSE SLES 15.4(64 bit) - UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit) Hypervisor:: - VMWare® ESXi/ 7.0 U3i / 8.0 - CITRIX Hypervisor 8.2.1 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
The specification is subject to change without notice in advance. ASRock Rack is the official trademark for ASRock Rack Inc., all the covers need to remain the original brand name without any modification. All other brands, names and trademarks are the property of their respective owners.
EAN: 4711430520896
Doplňkové parametry
| Kategorie: | Socket SP5 |
|---|---|
| Záruka: | 3 roky |
| Hmotnost: | 2.08 kg |
| EAN: | 4711430520896 |
| Kód výrobce: | GENOAD8X-2T/BCM |
