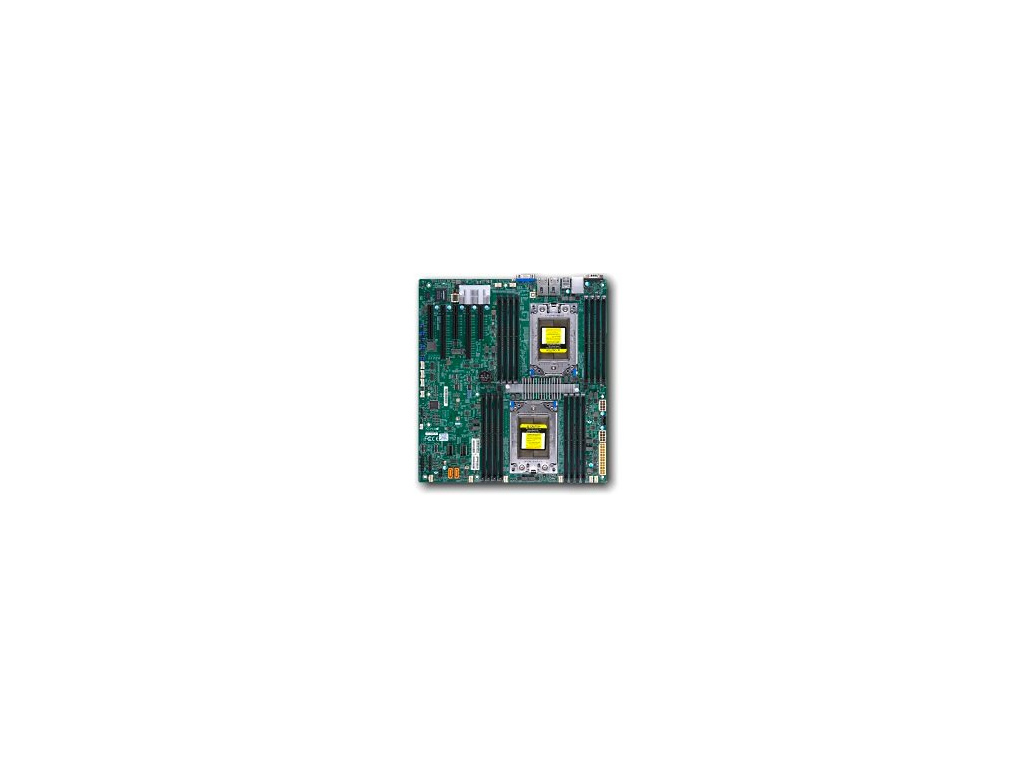

SUPERMICRO MB 2xSP3 (Epyc 7000series SoC),16x DDR4,10xSATA3, 2x NVMe, 1xM.2, PCIe 3.0 (2 x16, 3 x8), IPMI, 2x LAN, MBD-H11DSi-NT-O
Kód: ALIASBSRH11DSINT![Výdejní místa KUPSIONLINE.CZ](https://cdn.myshoptet.com/usr/www.kupsionline.cz/user/banners/places6-1.jpg?60ad8451)
Detailní popis produktu
Key Features
1. Dual AMD EPYC 7000-Series Processors; System on Chip (SoC)
2. 2TB Registered ECC DDR4
2666MHz SDRAM in 16 DIMMs
3. Expansion slots:
2 PCI-E 3.0 x16
3 PCI-E 3.0 x8
4. 10 SATA3, 1 M.2, 2 SATA DOM
5. Dual 10GBase-T LAN Ports
6. ASPEED AST2500 BMC graphics
7. Up to 2 USB 3.0 ports
Up to 4 USB 2.0 ports
8. 8 4-pin PWM Fan & Speed control
Product SKUs
MBD-H11DSi-NT-B
H11DSi-NT (Bulk Pack)
MBD-H11DSi-NT-O
H11DSi-NT (Retail Pack)
Physical Stats
Form Factor
E-ATX
Dimensions
12" x 13.05" (30.5cm x 33.1cm)
Processor/Chipset
CPU
Dual AMD EPYC™ 7000-series Processors
Socket SP3
Chipset
System on Chip
System Memory
Memory Capacity
16 DIMM sockets
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
See Detailed Memory Support Matrix
Memory Type
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Intel® X550 10G Base-T Ethernet Controller
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC
Input / Output
SATA
10 SATA3 (6 Gbps) ports
NVMe
2 Internal NVMe Ports (PCI-E 3.0 x4)
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header
Expansion Slots
PCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16
M.2
Interface: PCI-E 3.0 x2
Form Factor: 22110
Support SATA devices
Chassis ( Optimized for H11DSi-NT )
4U Chassis
CSE-745BAC-R1K28B2
System BIOS
BIOS Type
AMI 128Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Management
Software
Super Doctor 5
Watch Dog
NMI
SPM
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby
CPU switching voltage regulator
FAN
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
UID
Operating Environment / Compliance
Environmental Specifications
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
EAN: 672042286133
Doplňkové parametry
Kategorie: | Socket SP3 |
---|---|
Záruka: | 3 roky |
Hmotnost: | 2.24 kg |
EAN: | 672042286133 |
Kód výrobce: | MBD-H11DSi-NT-O |
