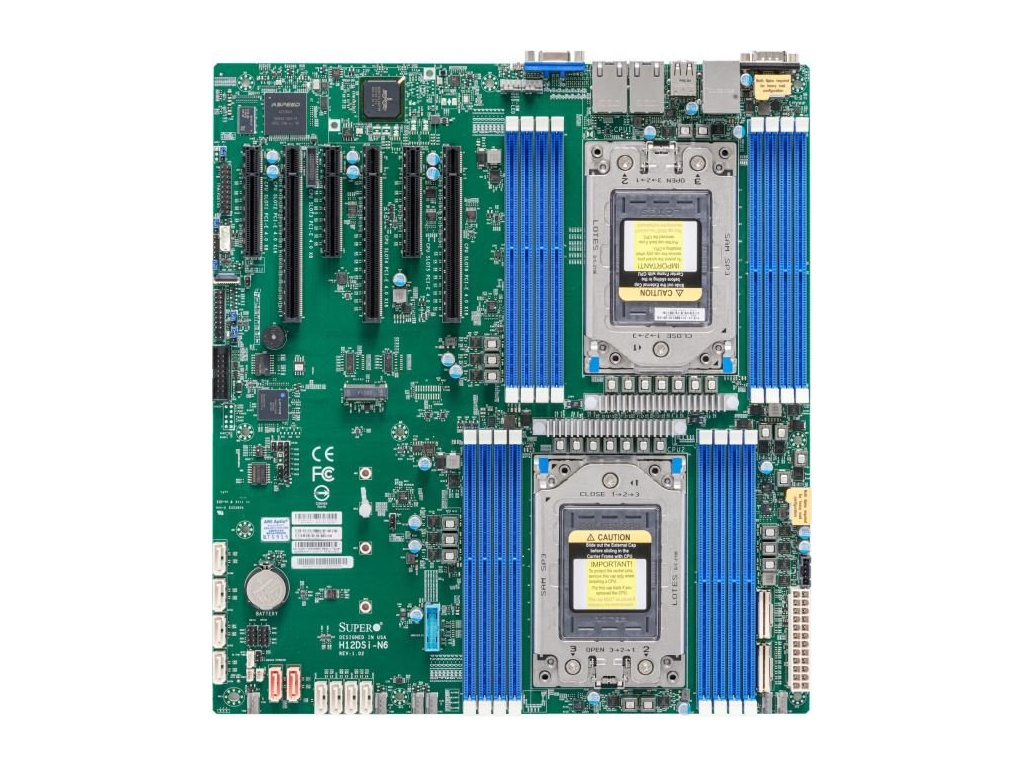

SUPERMICRO MB 2xSP3 (7002/7003),16x DDR4,10xSATA3, 4x NVMe, 1xM.2, 6xPCIe4.0 (3 x16, 3 x8), IPMI, 2x LAN, MBD-H12DSI-N6-O

Kód: ALIASBSRMBDH12DSIN6O

Neohodnoceno

SUPERMICRO MB 2xSP3 (7002/7003),16x DDR4,10xSATA3, 4x NVMe, 1xM.2, 6xPCIe4.0 (3 x16, 3 x8), IPMI, 2x LAN, MBD-H12DSI-N6-O

20 049 Kč 16 569 Kč bez DPH

Vyprodáno

Možnosti doručení
Položka byla vyprodána…

Dual AMD EPYC 7002 series and next generation processors 4 TB ECC Registered, DDR4-3200MHz SDRAM in 16 DIMMs 3x PCI-E 4.0 x16 and 3x PCI-E 4.0 x8 10 SATA3 (6 Gbps) ports Dual LAN with Broadcom BCM5720L Gigabit Ethernet Controller 1 VGA; Aspeed AST2600 BMC

Detailní informace

Ověřený obchod

Více než 23 let na trhu s IT

Sklad

20 000 produktů připraveno skladem

Široká síť výdejních míst

Více než 7 000 výdejních míst v ČR

Doprava zdarma

Při nákupu nad 10tis. Kč doprava zdarma

Detailní popis produktu


Product SKUs

MBD-H12DSi-N6	H12DSi-N6


Physical Stats

Form Factor	EATX
Dimensions	12" x 13.05" (30.5cm x 33.1cm)


Processor/Chipset

CPU	Dual AMD EPYC™ 7003/7002 Series Processors Socket SP3
Cores	Up to 64 Cores
Chipset	System on Chip


System Memory

Memory Capacity	16 DIMM slots Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v. 2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC
Network Controllers	Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA	ASPEED AST2600 BMC


Input / Output

SATA	10 SATA3 (6 Gbps) ports
LAN	2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 ports (rear) 4 USB 3.0 ports (2 rear, 2 headers)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports TPM 2.0 header


Expansion Slots

PCI-Express	3 PCI-E 4.0 x16 slots 3 PCI-E 4.0 x8 slots

M.2	Interface: 1 PCI-E 4.0 x4 Form Factor: 2280, 22110 Key: M-key


Chassis ( Optimized for H12DSi-N6)

2U	SCLA26TS-R920LPP1



Server(s) (with H12DSi-N6)

Model(s)	AS -2024S-TR AS -2024S-TRT


System BIOS

BIOS Type	AMI 256Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 6.2 USB Keyboard Support SMBIOS 3.1.1


Management

Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery


PC Health Monitoring

CPU	Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby CPU switching voltage regulator VBAT
FAN	Up to 8 fan status tachometer monitoring Up to 8x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header


Operating Environment / Compliance

Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Bulk Pack List

	Part Number	Qty	Description
Motherboard	MBD-H12DSi-N6-B	1	H12DSi-N6 Motherboard
I/O Shield	MCP-260-00042-0N	1	STD I/O SHIELD
I/O Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF


Retail Pack List

	Part Number	Qty	Description
Motherboard	MBD-H12DSi-N6-O	1	H12DSi-N6 Motherboard


Optional Parts List

	Part Number	Qty	Description
TPM security module	AOM-TPM-9655V	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
TPM security module	AOM-TPM-9665V	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;

Parametry

Rozměr	12" x 13"
Počet procesorů	2
Internetový konektor	RJ45
Socket	SP3
Max. počet slotů pro paměť	16
Max. frekvence	3200 MHz
Rychlost síťové karty Gb	1 Gb
Počet M.2	1
HDMI port	ne
TDP (W)	225
DVI port	ne
VGA port	ano

Doplňkové parametry

Kategorie:	Socket SP3
Záruka:	3 roky
Hmotnost:	2.3 kg
Formát základní desky:	E-ATX
Maximální frekvence paměti (Mhz):	3200
Patice:	Socket SP3
Počet paměťových slotů:	16
Pro procesory:	AMD
Typ paměti:	DDR4
Verze PCI-E:	4.0
EAN:	672042446018
Kód výrobce:	MBD-H12DSI-N6-O
