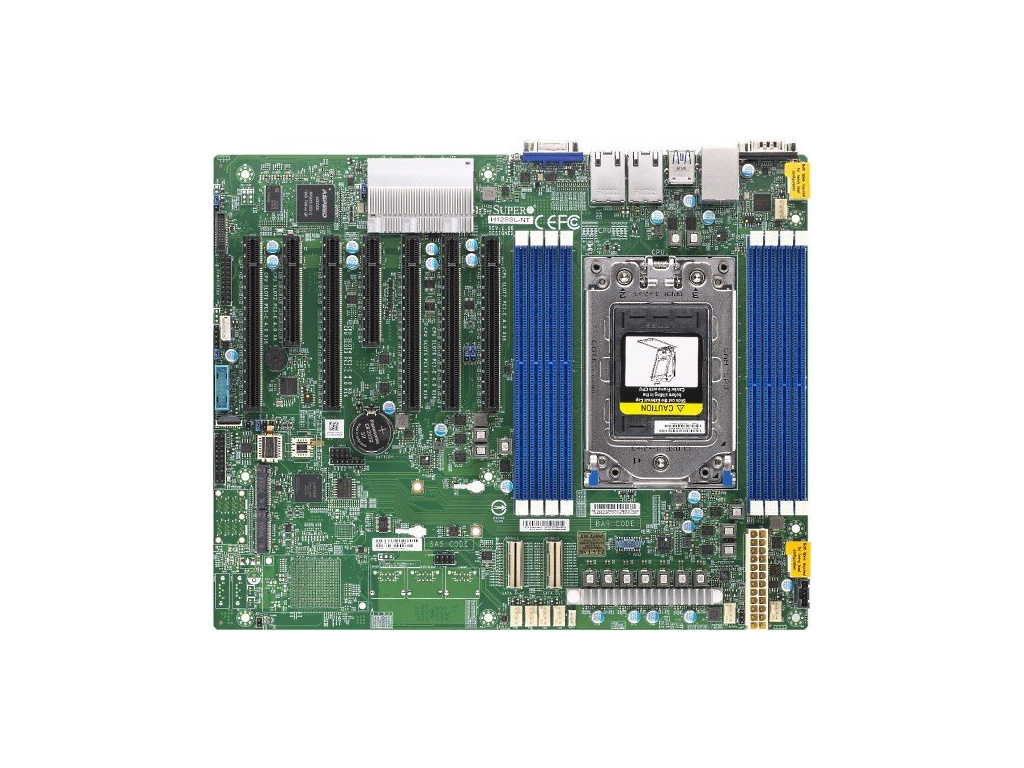

SUPERMICRO MB 1xSP3 (Epyc 7002 SoC), 8x DDR4, 2x (8x SATA nebo 2x NVMe), 2x M.2, PCIe 4.0 (5 x16, 2 x8), 2x 10Gb, IPMI, MBD-H12SSL-NT-B
Kód: ALIASBSRMBDH12SSLNTB![Výdejní místa KUPSIONLINE.CZ](https://cdn.myshoptet.com/usr/www.kupsionline.cz/user/banners/places6-1.jpg?60ad8451)
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
Product SKUs
MBD-H12SSL-NT H12SSL-NT
MBD-H12SSL-NT-O H12SSL-NT (Retail Pack)
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.5cm x 24.4cm)
Processor/Chipset
CPU Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
Socket SP3
Cores Up to 64 Cores
Chipset System on Chip
System Memory
Memory Capacity 8 DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA SATA3 (6 Gbps)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers Dual 10GBase-T LAN via Broadcom BCM57416
1 Realtek RTL8211F PHY (dedicated IPMI)
VGA ASPEED AST2500 BMC
Input / Output
SATA/NVMe Hybrid 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
LAN Dual 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 6 USB 3.0 ports
(4 rear + 2 via header)
VGA 1 VGA port
Others 1 COM port (rear)
1 TPM 2.0 header
Expansion Slots
PCI-Express 5 PCI-E 4.0 x16
2 PCI-E 4.0 x8
M.2 Interface: 2 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key
Chassis ( Optimized for H12SSL-NT )
1U SC813MFTQC-350CB2
SC813MFTQC-R407CB
2U SC213AC-R1K23LPB
SC216BE1C4-R1K23LPB
SC825MBTQC-R802LPB
SC825TQC-R802LPB
SC826BE1C4-R1K23LPB
3U SC835TQC-R802B
SC836BE1C-R1K23B
4U SC846BE1C-R1K23B
System BIOS
BIOS Type AMI 256Mb SPI Flash EEPROM
BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Management
Software Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations ACPI Power Management
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
CPU switching voltage regulator
Supports system management utility
VBAT
FAN Up to 7-fan status tachometer monitoring
Up to 7 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 7x Fan connectors
I2C Temperature Sensing Logic
LED CPU / System Overheat LED
Other Features Chassis Intrusion Detection
Chassis Intrusion Header
UID
Operating Environment / Compliance
Environmental Specifications Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
EAN: 672042423354
Doplňkové parametry
Kategorie: | Socket SP3 |
---|---|
Záruka: | 3 roky |
Hmotnost: | 1.47 kg |
EAN: | 672042423354 |
Kód výrobce: | MBD-H12SSL-NT-B |
