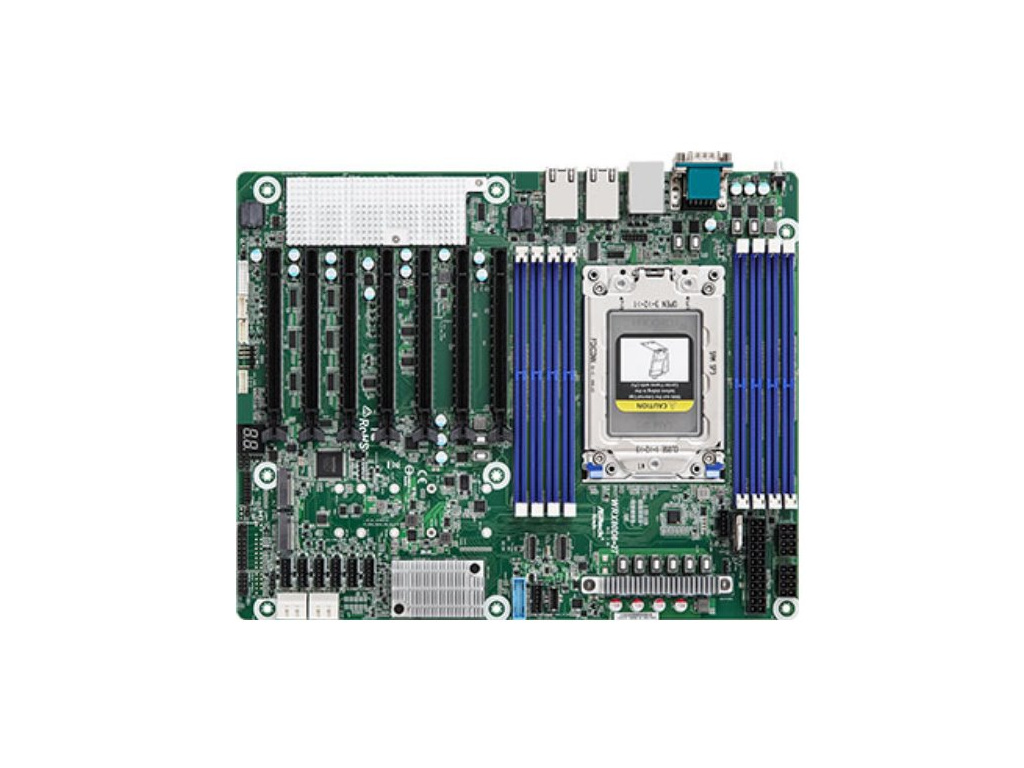

ASRock Rack WRX80D8-2T WRX8, 8x DDR4, 12x SATA, 2x M.2(22110), 7x PCIe x16, 2x 10Gb LAN, IPMI, WRX80D8-2T
Kód: ALIASBAGWRX80D82T
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
WRX80D8-2T
- ATX (12" x 9.6")
- Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX
- 8 DIMM slots (1DPC), supports ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS
- 7 PCIe4.0 x16
- 2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
- Supports 2 M.2 (PCIe4.0 x4)
- 12 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X710-AT2
- Remote Management (IPMI)
Specifications
| Physical Status | |
| Form Factor | ATX |
| Dimensions | 12" x 9.6" (305 mm x 244 mm) |
| Processor System | |
| CPU | Supports AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX |
| Socket | Single Socket sWRX8 (LGA4094) |
| Chipset | AMD WRX80 |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | ECC/non-ECC UDIMM, RDIMM, LRDIMM: up to 128GB RDIMM-3DS*: up to 256GB *RDIMM-3DS Max. memory capacity is to be validated |
| Max. DIMM Frequency | ECC/non-ECC UDIMM, RDIMM, LRDIMM, RDIMM-3DS*: max. 3200MHz *RDIMM-3DS Max. memory frequency is to be validated |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe4.0 x16 [CPU] SLOT6: PCIe4.0 x16 [CPU] SLOT5: PCIe4.0 x16 [CPU] SLOT4: PCIe4.0 x16 [CPU] SLOT3: PCIe4.0 x16 [CPU] SLOT2: PCIe4.0 x16 [CPU] SLOT1: PCIe4.0 x16 [CPU] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe4.0 x4), supports 22110/2280/2260/2242/2230 form factor [FCH] |
| OCuLink | 2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [FCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD WRX80 (12 SATA 6Gb/s): 2 OCuLink, 4 SATA 7-pin |
| Ethernet | |
| Additional GbE Controller | Intel® X710-AT2: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 DB15 |
| Serial Port | 1 DB9 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): RSTBTN, PWRBTN, HDDLED, PWRLED |
| Speaker Header | 1 (4-pin) |
| Fan Header | 7 (6-pin) |
| Thermal Sensor Header | 2 |
| TPM Header | 1 (13-pin, SPI), 1 (17-pin, LPC) |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 3.2 (Gen2) Header | 1 (Type-C, 1 USB3.2 Gen2) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, DRAM, MB, Card Side, Chipset Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
EAN: 4710483939235
Doplňkové parametry
| Kategorie: | Socket SP3 |
|---|---|
| Záruka: | 24 m |
| Hmotnost: | 1.8 kg |
| EAN: | 4710483939235 |
| Kód výrobce: | WRX80D8-2T |
