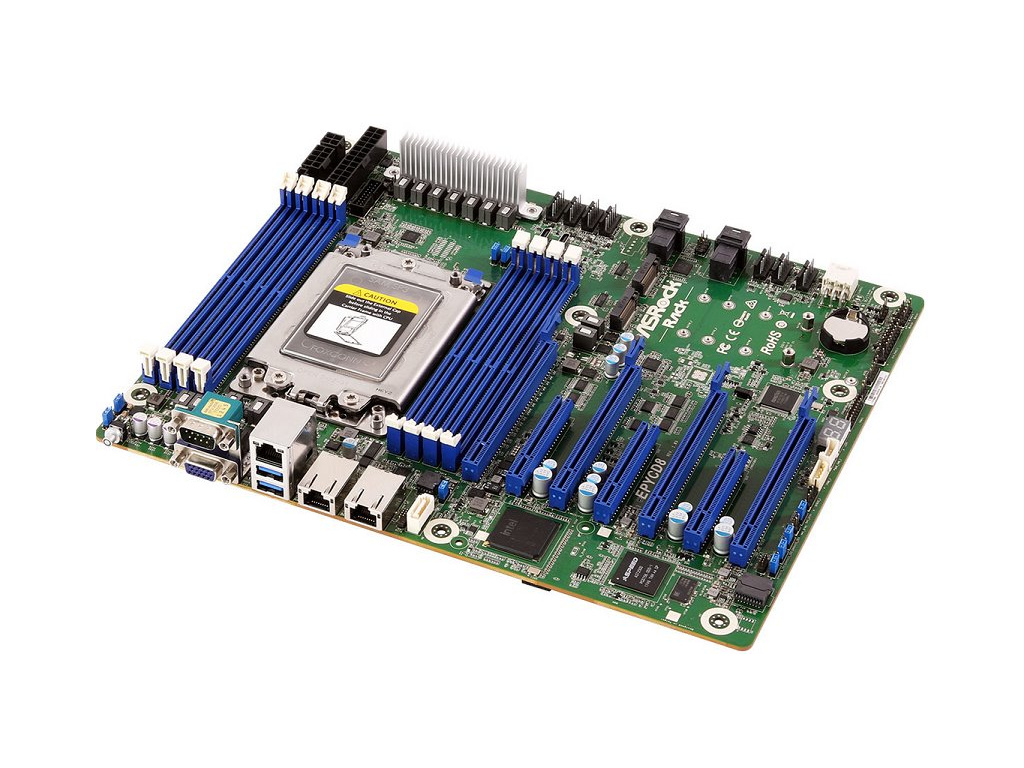

ASRock Rack EPYCD8 1x SP3, 8x DDR4 ECCreg, 9x SATA, 2x M.2(22110,2280), 7x PCIe3, 2x 10Gb LAN, IPMI, EPYCD8-2T/R32
Kód: ALIASBAGEPYCD82TR32
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
Specifications
| MB Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12'' x 9.6'' (30.5 cm x 24.4 cm) |
| Processor System | |
| CPU | - AMD EPYC™ 7002/7001 series processor family |
| Socket | - Single Socket SP3 (LGA4094) |
| System Memory | |
| Capacity | - 8 DIMM slots |
| Type | - Eight Channel DDR4 memory technology - Supports DDR4 RDIMM and LRDIMM |
| DIMM Size Per DIMM | - RDIMM: 32GB, 16GB, 8GB - LRDIMM: 128GB, 32GB |
| DIMM Frequency | - RDIMM: 3200/2933/2666/2400MHz - LRDIMM: 3200/2933/2666/2400MHz |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - PCIE1: Gen3 x16 link - PCIE3: Gen3 x16 link - PCIE5: Gen3 x16 link - PCIE7: Gen3 x16 link |
| PCIe 3.0 x 8 | - PCIE2: Gen3 x8 link - PCIE4: Gen3 x8 link - PCIE6: Gen3 x8 link |
| Storage | |
| SATA Controller | - 9 x SATA3 6.0 Gb/s (from 2x mini SAS HD and 1x SATA DOM port) |
| OCuLink for U.2 | - 2 |
| Ethernet | |
| Interface | - 10000/1000 /100 /10 Mbps by Intel® X550 |
| LAN Controller | - 2 x RJ45 10G base-T by Intel® X550 - 1 x RJ45 Dedicated IPMI LAN port by RTL8211E - Supports Wake-On-LAN - Supports Energy E_cient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE - LAN1 supports NCSI |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 128Mb |
| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 2 |
| Lan Port | - 2+1 RJ45 Gigabit Ethernet LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 x COM port |
| UID Button/UID LED | - 1 |
| Internal Connector | |
| SATA DOM | - 1 |
| M.2 | - 2(M2_1: 2230/2242/2260/2280, SATA/PCIE(X4); M2_2:2230/2242/2260/2280/22110, SATA/PCIE(X4)) |
| Front LED | - 1 |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, and front LAN LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Fan Header | - 7 Fans x 6-pin (1CPU/4Front/2Rear) |
| ATX Power | - 1 x (24-pin) + 1 x (8-pin) + 1 x (4-pin) + 1 x (6-pin)(6 pin for GPU for PCIE Slot) |
| USB 3.1 (Gen1) Header | - 1 (supports 2 USB 3.0 ports) |
| USB 2.0 Header | - 1 |
| Speaker Header | - 1 |
| BMC_SMB Header | - 1 |
| Clear CMOS | - 1 |
| PSU SMB Header | - 1 |
| Onboard LED | |
| 80 Debug Port LED | - 1 |
| Fan Fail LED | - 1 (only Fan Fail LED) |
| System BIOS | |
| BIOS Type | - 32MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - MB/TR1/Card side Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft® Windows® - Server 2012 R2 (64 bit) - Server 2016 (64 bit) Linux - RedHat Enterprise Linux Server 6.9 (64 bit) / 7.3 (64 bit) - CentOS 6.9 (64 bit) / 7. 3 (64 bit) - SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP2 (64 bit) - Ubuntu 16.04 (64 bit) / 17.04 (64 bit) - CITRIX XenServer 7.5 Virtual: - VMWare® ESXi 6.5 u1 - vSphere 6.5 u1 * Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
EAN: 4717677337068
Doplňkové parametry
| Kategorie: | Socket SP3 |
|---|---|
| Záruka: | 3 roky |
| Hmotnost: | 0.76 kg |
| EAN: | 4717677337068 |
| Kód výrobce: | EPYCD8-2T/R32 |
