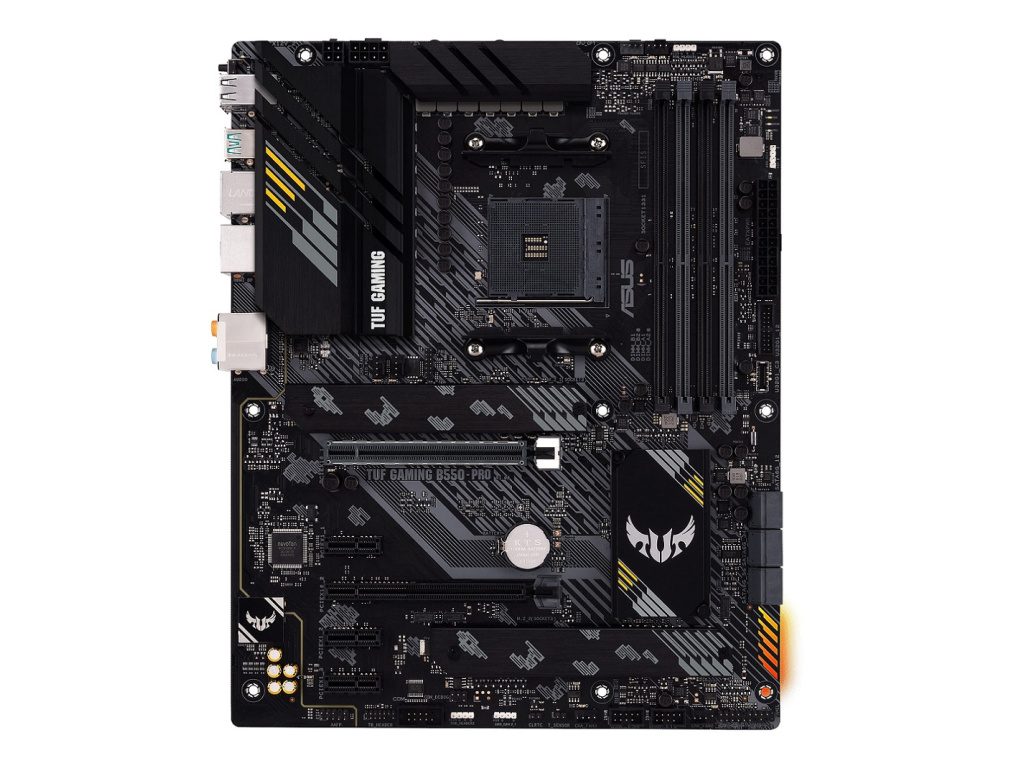

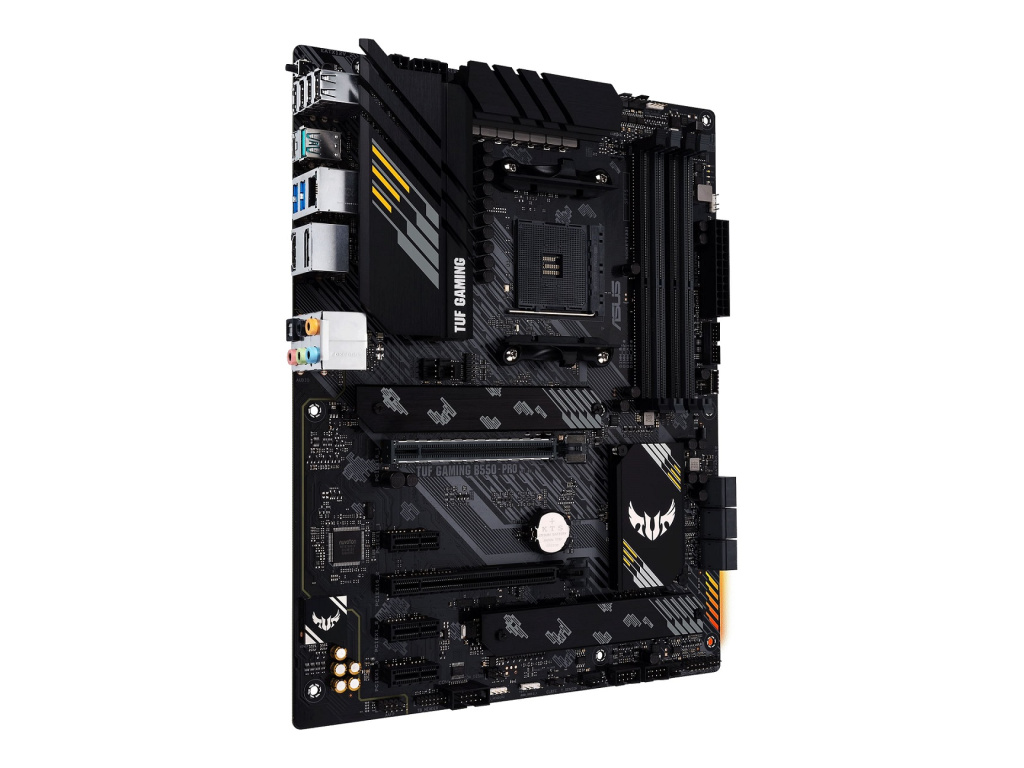

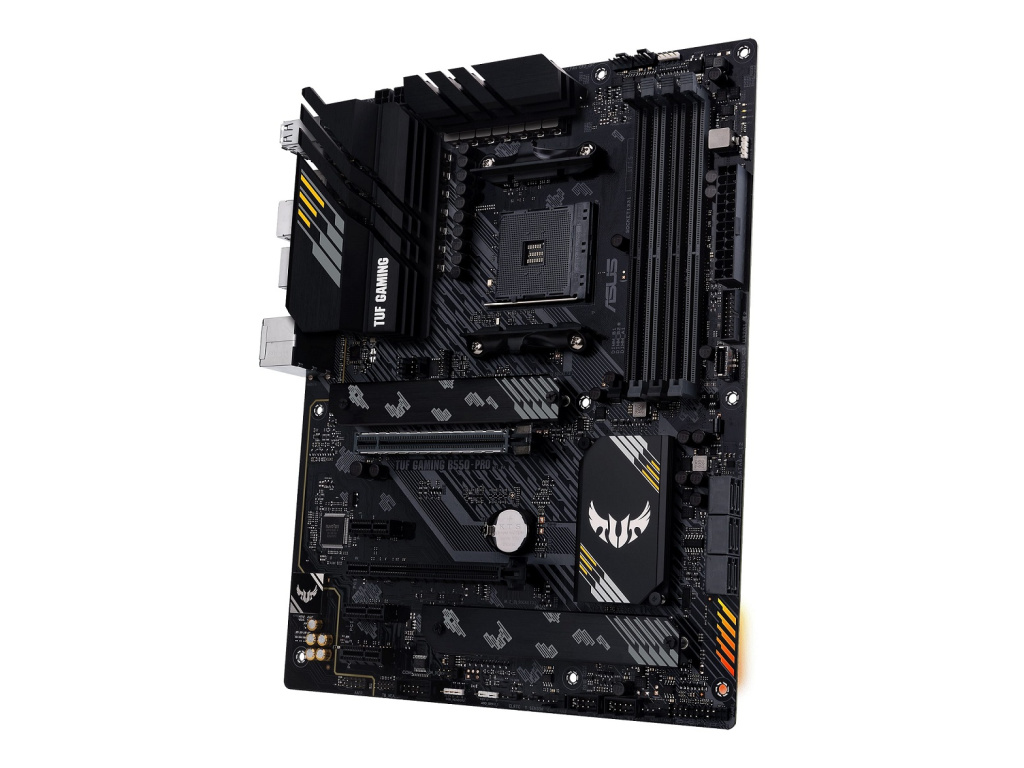

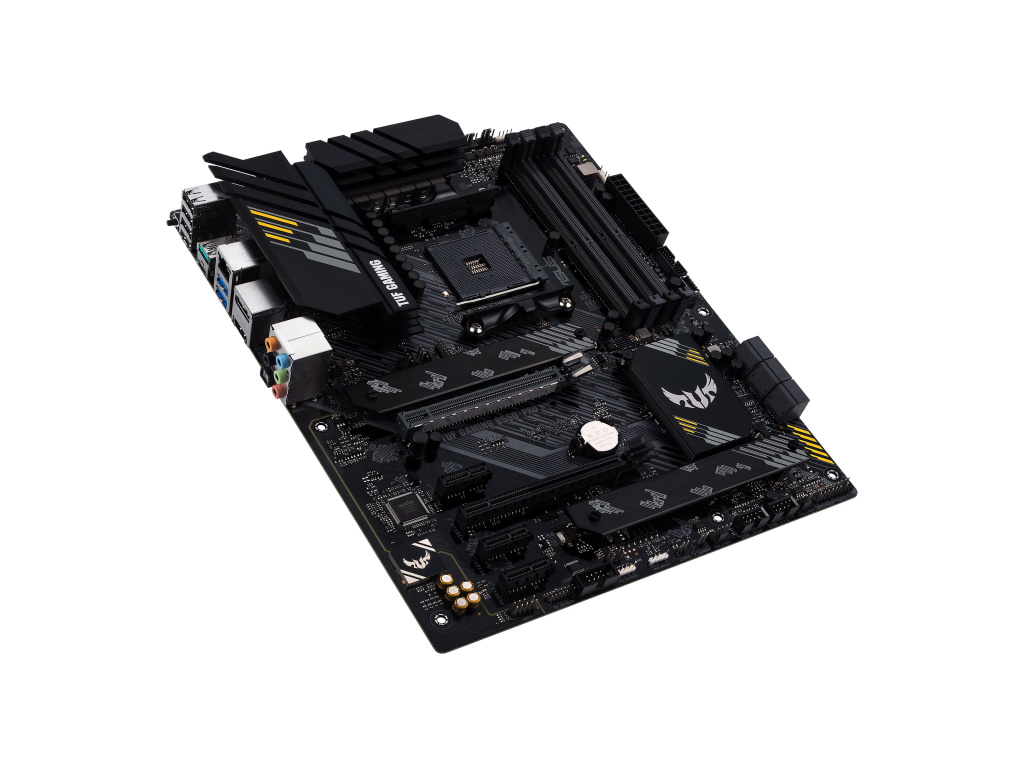

ASUS TUF GAMING B550-PRO/AM4/ATX, 90MB17R0-M0EAY0

Detailní popis produktu

Chipset: AMD B550
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen™ 4000 G-Series Processors 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Grafické výstupy:
Integrated Graphics Processor (na základě procesoru)
Multi GPU: AMD 2-Way CrossFireX Technology
Zvuková karta:
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Síťová karta:
Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)
Rozšiřující sloty:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1x PCIe 4.0 x16 (x16 mode)

AMD Ryzen™ 4000 G-Series Processors
1x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset
1x PCIe 3.0 x16 (x4 mode)
3x PCIe 3.0 x1
RAID řadič: 0, 1, 10
SATA:
6x SATA 6Gb/s
M.2:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD Ryzen™ 4000 G-Series Processors :
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD B550 Chipset :
1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
USB:

zadní USB porty ( celkem 8 )
2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2x USB 3.2 Gen 1 port(s)(2 x Type-A)
4x USB 2.0 port(s)(4 x Type-A)

přední USB porty ( celkem 7 )
3x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
4x USB 2.0 port(s)(4 x Type-A)
Interní porty:
1x CPU Fan connector(s)
1x CPU OPT Fan connector(s)
3x Chassis Fan connector(s)
1x AIO_PUMP connector
2x Aura RGB Strip Headers
2x Addressable Gen 2 header(s)
1x USB 3.2 Gen 1 front panel TypeC™ connector
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x M.2 with E key for Wi-Fi module
1x SPI TPM header
6x SATA 6Gb/s connector(s)
1x Thunderbolt header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x 4-pin ATX 12V Power connector(s)
1x Front panel audio connector(s) (AAFP)
1x Thermal sensor connector(s)
1x Clear CMOS jumper(s)
1x System panel connector
1x COM port header

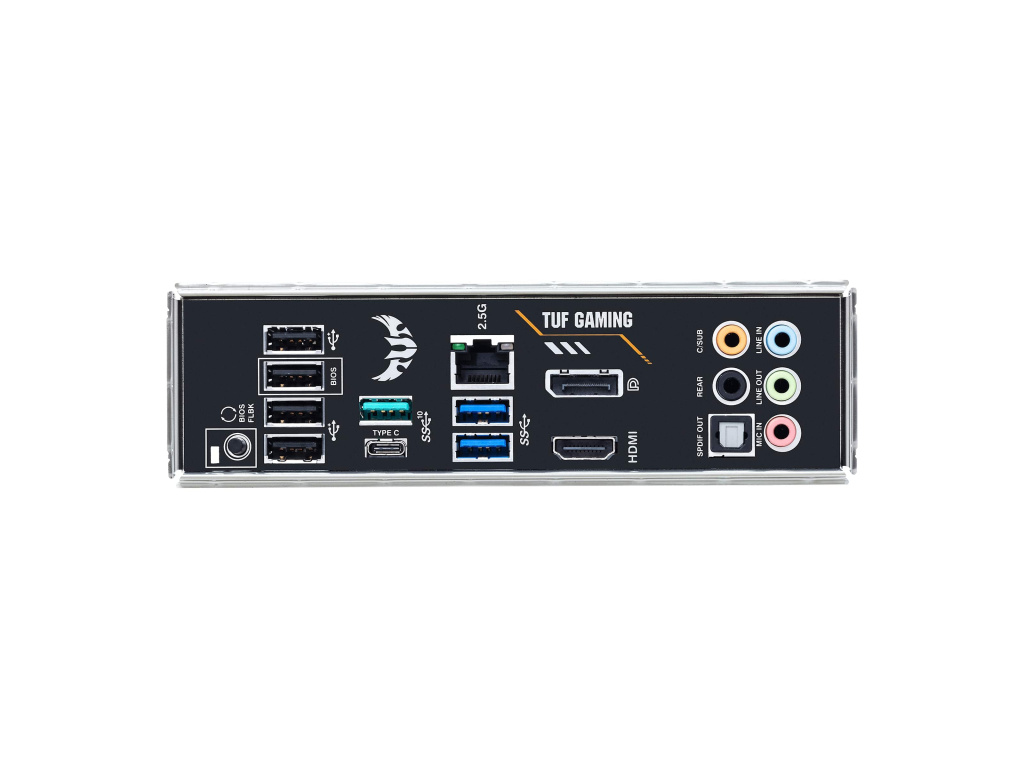

Externí porty:
1x DisplayPort
1x HDMI
1x LAN (2.5G) port(s)
2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
2x USB 3.2 Gen 1 (blue) Type-A
4x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1x Optical S/PDIF out
5x Audio jack(s)
1x BIOS FlashBack™ Button(s)

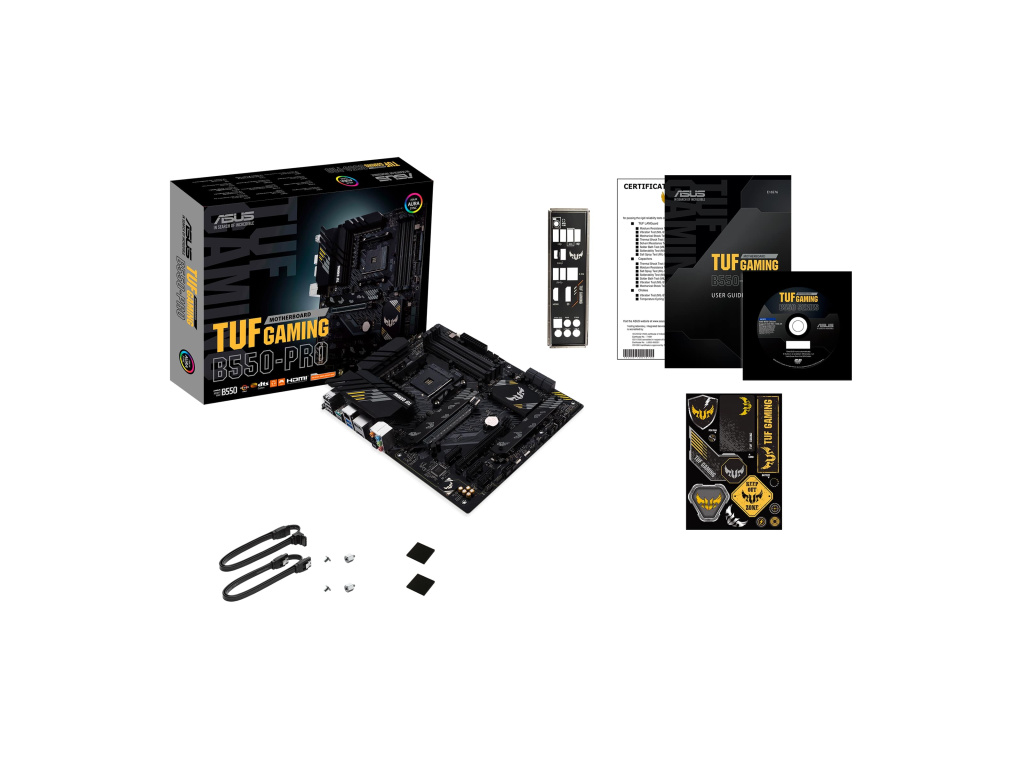

Obsah balení:
User´s manual
I/O Shield
2x SATA 6Gb/s cable(s)
1x Supporting DVD
1x TUF Gaming Sticker
1x TUF Certification card(s)
1x M.2 SSD screw package(s)
1x M.2 Rubber Package(s)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B550-PRO https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

EAN: 4711081033721
