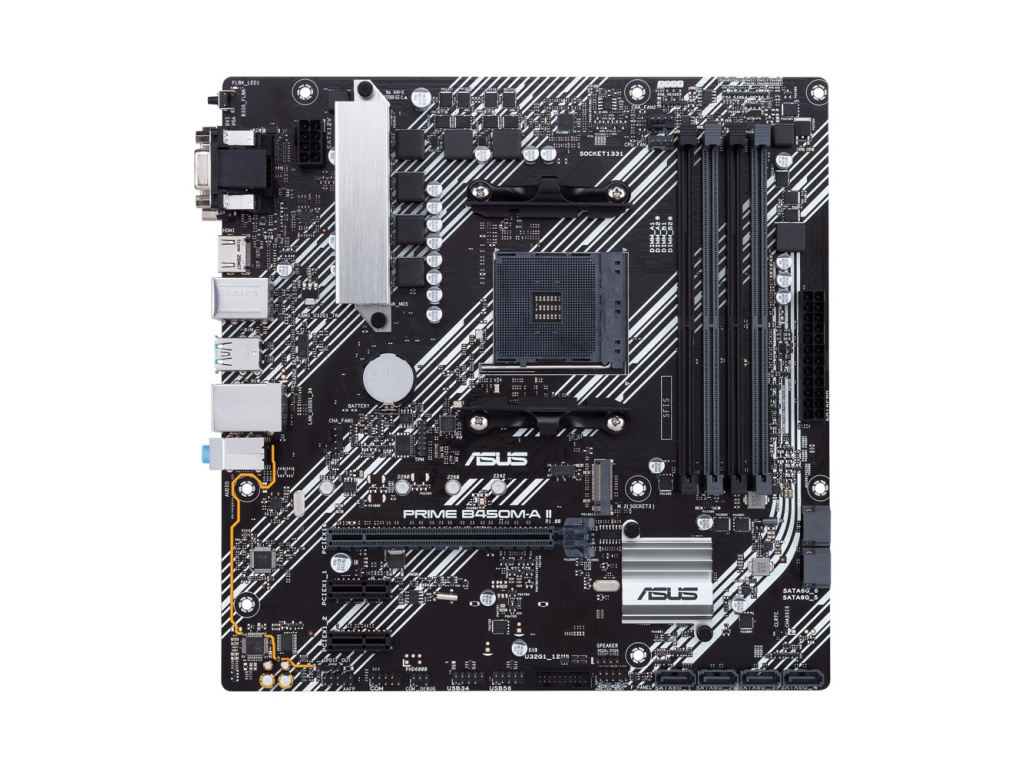

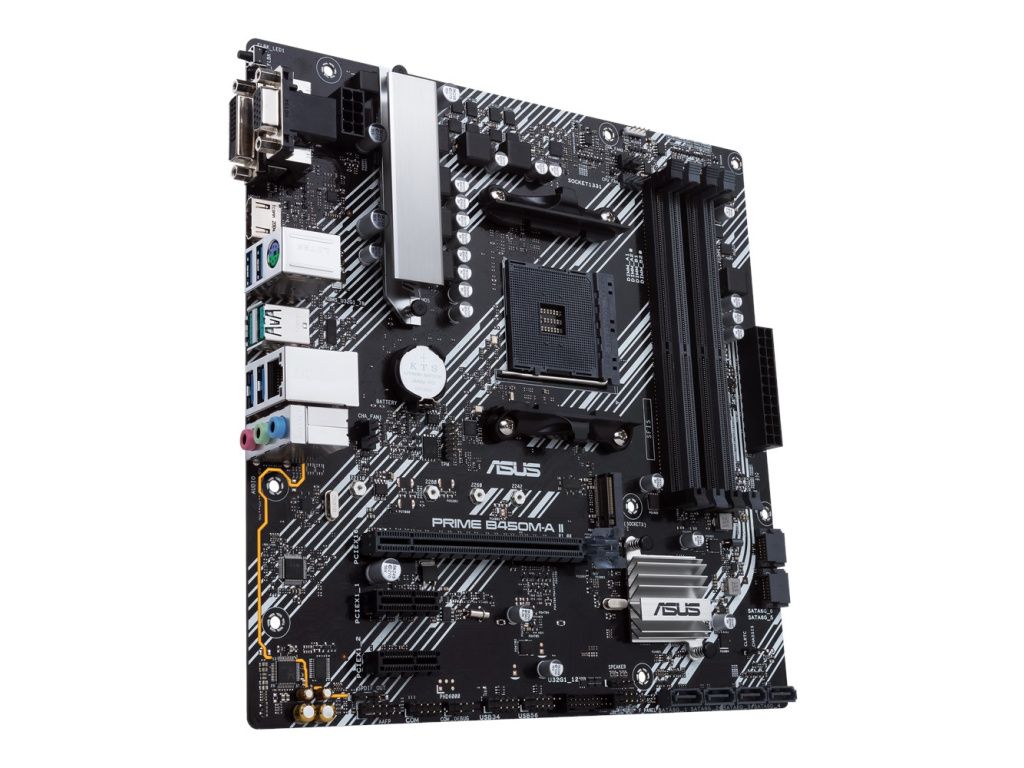

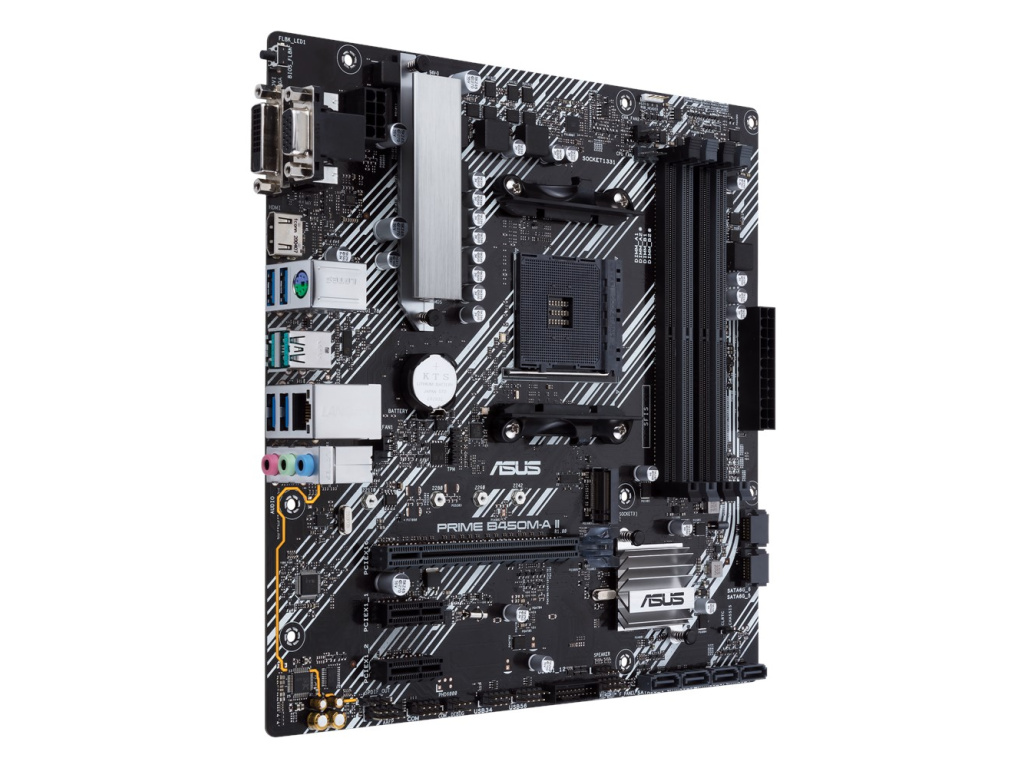

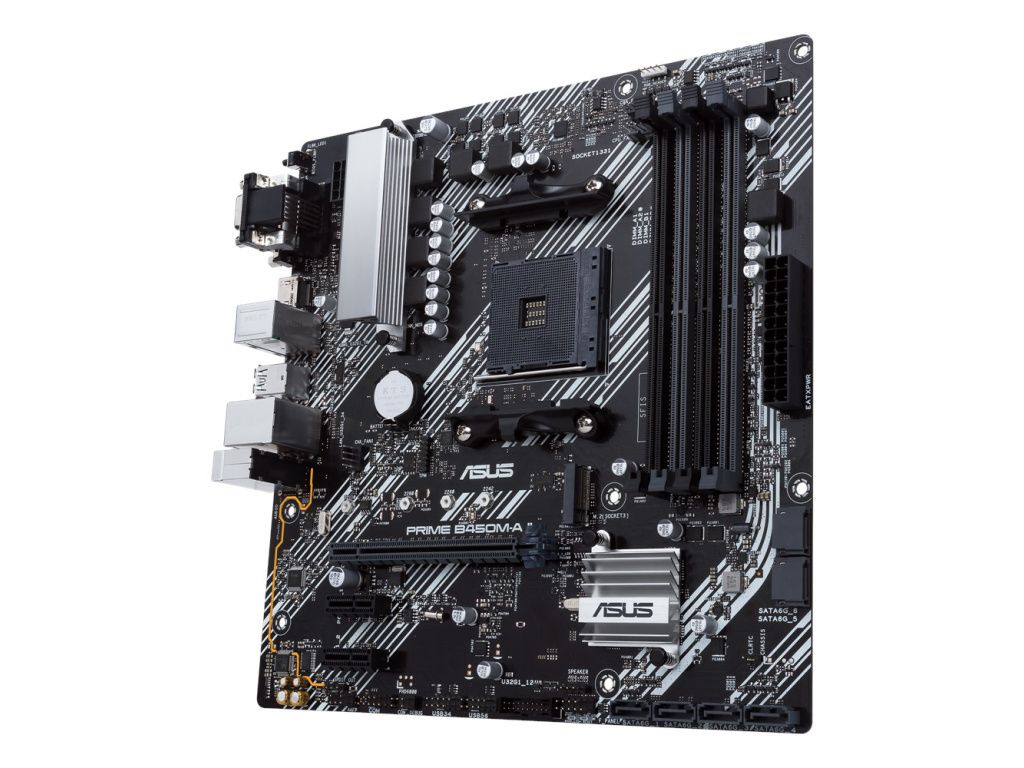

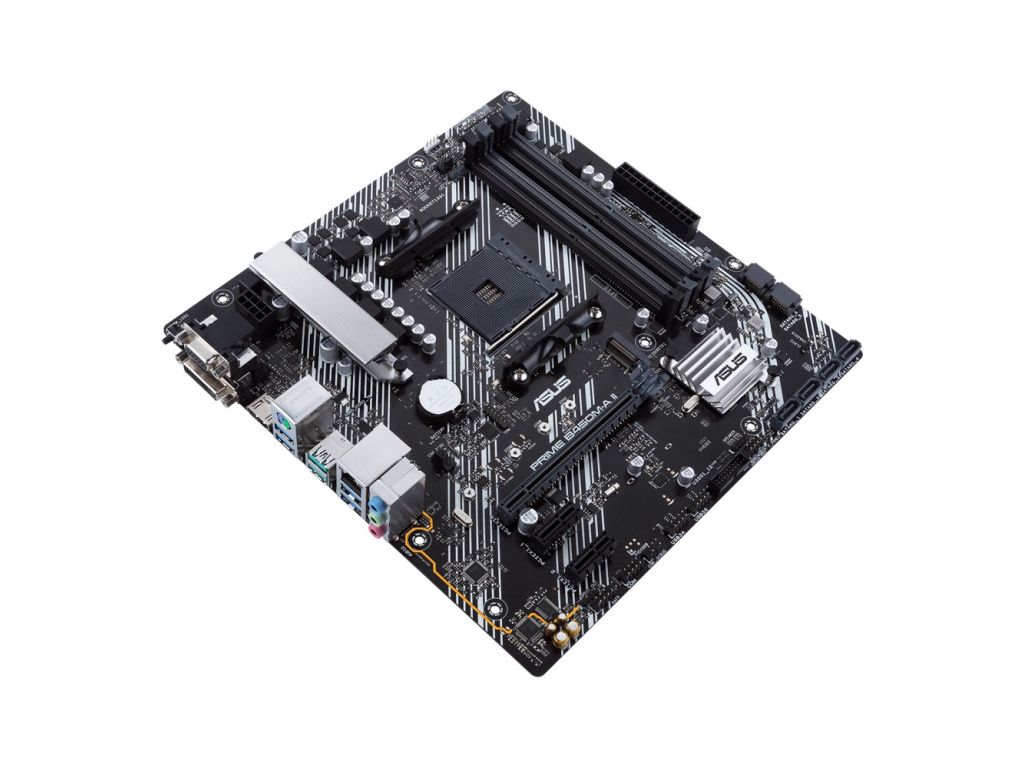

ASUS PRIME B450M-A II/AM4/mATX, 90MB15Z0-M0EAY0

Detailní popis produktu

Chipset: AMD B450
Rozměrový formát: mATX Form Factor (244 mm x 244 mm)
Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Grafické výstupy:
Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics)
Zvuková karta:
Realtek 7.1-Channel High Definition Audio CODEC
Síťová karta:
Realtek® RTL8111H
Rozšiřující sloty:

3rd/2nd/1st Gen AMD Ryzen™ Processors
1x PCIe 3.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1x PCIe 3.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors
1x PCIe 3.0 x16 (x4 mode)

AMD B450 chipset
2x PCIe 2.0 x1
RAID řadič: 0, 1, 10
SATA:
6x SATA 6Gb/s ports
M.2:
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
USB:

zadní USB porty ( celkem 6 )
2x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
4x USB 3.2 Gen 1 port(s)(4 x Type-A)

přední USB porty ( celkem 6 )
2x USB 3.2 Gen 1 port(s)
4x USB 2.0 port(s)
Interní porty:
1x CPU Fan connector(s) (1 x 4 -pin)
2x Chassis Fan connector(s) (2 x 4 -pin)
1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1x SPI TPM header
1x COM port(s) connector(s)
6x SATA 6Gb/s connector(s)
1x S/PDIF out header(s)
1x 24-pin EATX Power connector(s)
1x 8-pin ATX 12V Power connector(s)
1x Front panel audio connector(s) (AAFP)
1x System panel(s)
1x Clear CMOS jumper(s)
1x COM port header
1x Speaker connector
1x RGB Header

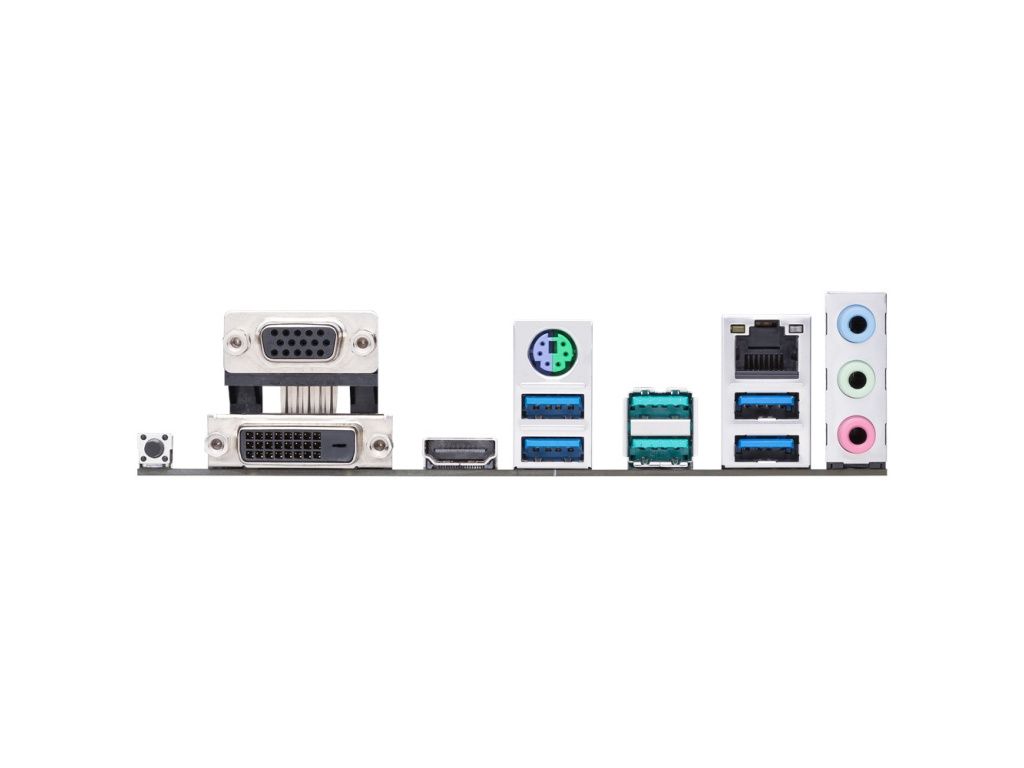

Externí porty:
1x PS/2 keyboard/mouse combo port(s)
1x DVI-D
1x D-Sub
1x HDMI
1x LAN (RJ45) port(s)
2x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4x USB 3.2 Gen 1 (blue) Type-A
3x Audio jack(s)
1x BIOS FlashBack™ Button(s)

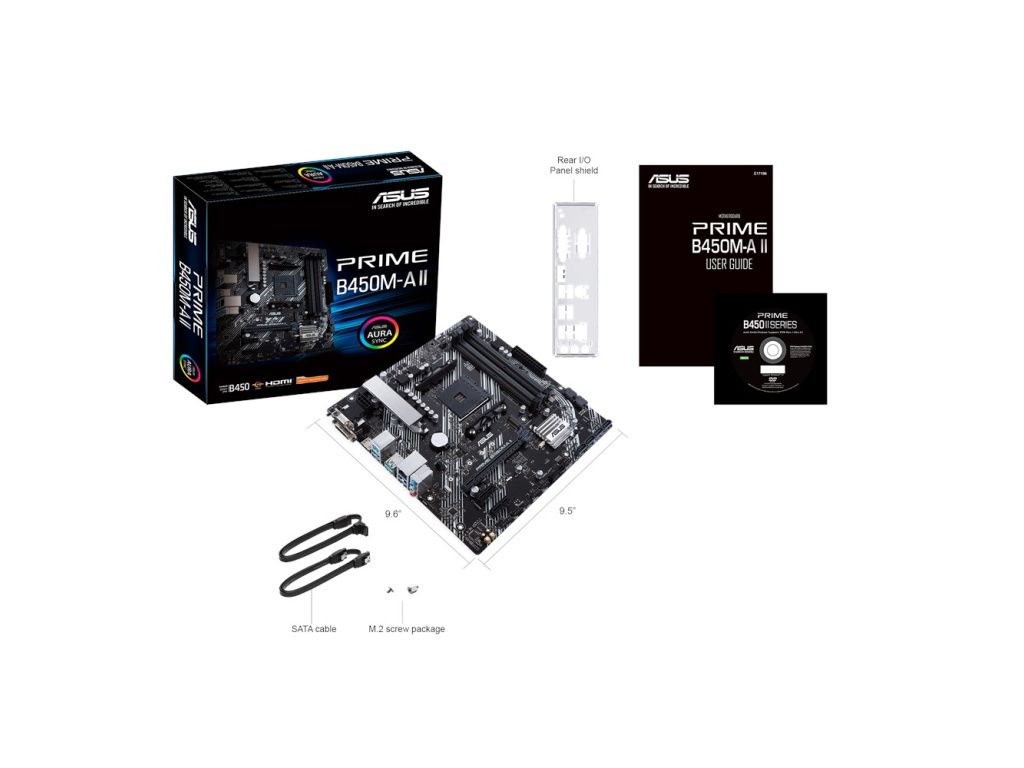

Obsah balení:
User's manual
I/O Shield
2x SATA 6Gb/s cable(s)
1x M.2 Screw Package
1x Supporting DVD
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://www.asus.com/Motherboards/PRIME-B450M-A-II https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215

EAN: 4718017924986
