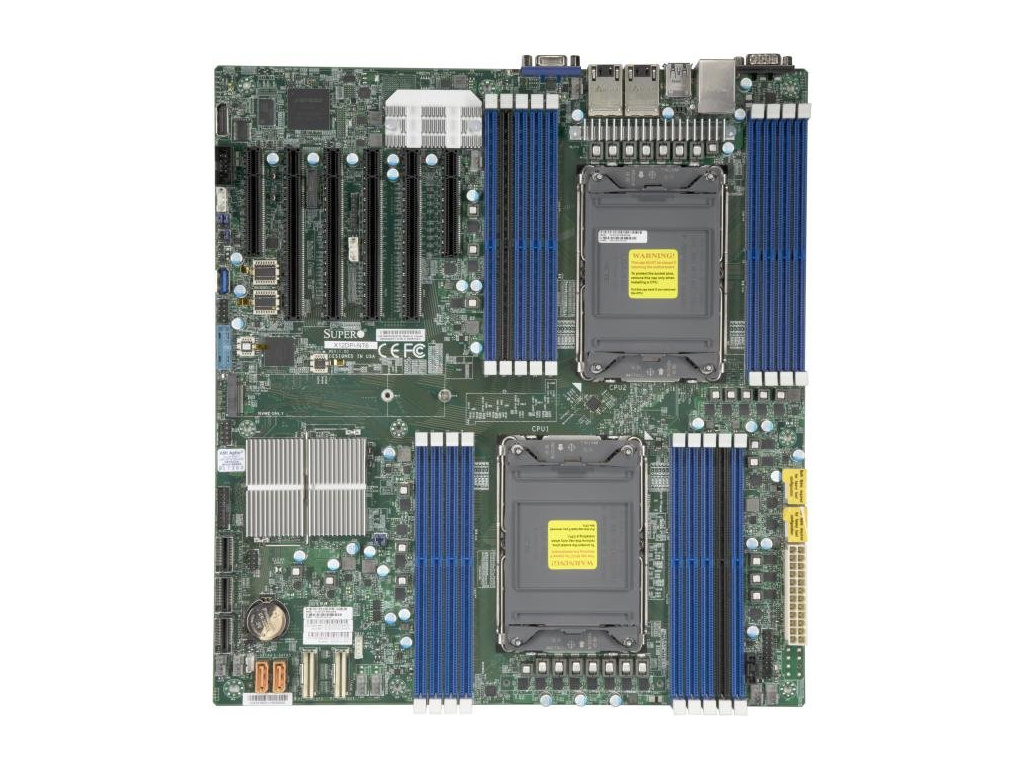

    SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk, MBD-X12DPi-N6-B

    Kód: ALIASBSRMBDX12DPIN6B
    Neohodnoceno
    Značka: SUPERMICRO
    SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk, MBD-X12DPi-N6-B
    21 759 Kč 17 983 Kč bez DPH
    Skladem online (1 ks)
    Můžeme doručit do:
    20.12.2024
    Možnosti doručení

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 23 let na trhu s IT
    SKLAD
    Sklad
    20 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu



      1. 3rd Gen Intel® Xeon® Scalable processors

        Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s



      1. Intel® C621A



      1. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz

        Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.



      1. 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16,2 PCI-E 4.0 NVMe x8 Internal Port(s)

        M.2 Interface: 1 PCI-E 4.0 x4         M.2 Form Factor: 2280/22110     M.2 Key: M-Key



      1. Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10



      1. Dual LAN with 10GBase-T with Intel® X550



      1. 2 VGA (1 rear bezel, 1 front panel) ports



    Specifikace produktu


    Product SKUs
    MBD-X12DPi-N6
    • X12DPi-N6

    Physical Stats
    Form Factor
    • E-ATX
    Dimensions
    • 12" x 13" (30.48cm x 33.02cm)

    Processor/Cache
    CPU
    • 3rd Gen Intel® Xeon® Scalable processors
    • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
    Cores / Cache
    • Up to 40 cores

    System Memory
    Memory Capacity
    • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
    • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
    Memory Type
    • 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
    DIMM Sizes
    • RDIMM: 256GB
    • LRDIMM: 256GB
    • 3DS LRDIMM: 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C621A
    SATA
    • Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2600 BMC
    Network Controllers
    • Dual LAN with Intel® i350 Gigabit Ethernet Controller

    Input / Output
    SATA
    • 14 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 2 USB 2.0 ports (2 via headers)
    • 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A)
    Video Output
    • 2 VGA (1 rear bezel, 1 front panel) ports
    Serial Port / Header
    • 2 COM Ports (1 rear, 1 header)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCI-E
    • 2 PCI-E 4.0 x8,
    • 4 PCI-E 4.0 x16
    M.2
    • M.2 Interface: 1 PCI-E 4.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
    System Management Software
    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    • IPMICFG
    • IPMIView for Linux/Windows
    • SMCIPMITool
    • SSM
    • SUM
    • SuperDoctor 5
    • SPM

    PC Health Monitoring
    Voltage
    • +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, CPU temperature, LAN temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature
    Temperature
    • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
    LED
    • BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID
    Other Features
    • ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID, WOL

    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Parts List (Bulk Package)
    Name Part Number Qty Description
    Motherboard MBD-X12DPi-N6 1 X12DPi-N6 Motherboard
    I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
    I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
    CPU carrier SKT-1205L-P4IC-FXC 2 CPU carrier for 3rd Gen Intel Xeon Scalable Processors

    Parts List (Retail Package)
    Name Part Number Qty Description
    Motherboard MBD-X12DPi-N6 1 X12DPi-N6 Motherboard
    I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
    I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
    I/O Cables CBL-0476L 1 IPASS to 4 SATA cable
    CPU carrier SKT-1205L-P4IC-FXC 2 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
    Quick Reference Guide MNL-2233-QRG 1 X12DPi-N(T)6 Quick Reference Guide

    Optional Parts List
    Name Part Number Qty Description
    TPM security module (optional, not included) AOM-TPM-9670V-S 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    TPM security module (optional, not included) AOM-TPM-9670H-S 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    TPM security module (optional, not included) AOM-TPM-9671V-S 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    TPM security module (optional, not included) AOM-TPM-9671H-S 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor

    Chassis (Optimized for)

    X12DPi-N6

    Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
    SC213BAC8-R1K23LPB
    SC826BAC12-R1K23LPB
    SC825BTQC-R1K23LPB    		 SC745BAC-R1K23B
    SC825BTQC-R1K23LPB
    SC825BTQC-R1K23LPB


    EAN: 672042441594

    Doplňkové parametry

    Kategorie: Socket 4189
    Záruka: 3 roky
    Hmotnost: 1 kg
    Čipset: intel C621
    Formát základní desky: E-ATX
    Maximální frekvence paměti (Mhz): 3200
    Patice: Socket 4189
    Počet paměťových slotů: 18
    Pro procesory: Intel
    Typ paměti: DDR4
    Verze PCI-E: 4.0
    EAN: 672042441594
    Kód výrobce: MBD-X12DPi-N6-B
