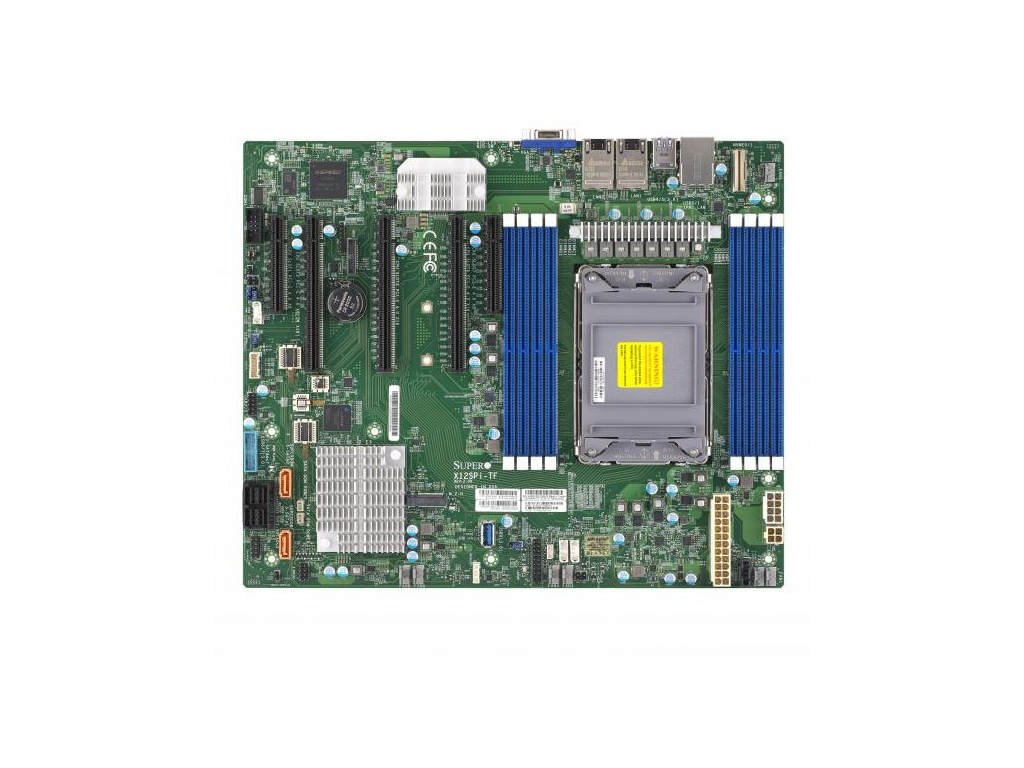

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 2x NVMe, 10xSATA3, M.2, 5x PCIe4.0, 2x 10Gb LAN,IPMI, MBD-X12SPi-TF-O

Detailní popis produktu

Product SKUs

MBD-X12SPI-TF X12SPI-TF



Physical Stats

Form Factor ATX

Dimensions 12.1" x 10" (30.73cm x 25.4cm)



Processor/Cache

CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Cores / Cache Up to 40 cores



System Memory

Memory Capacity Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots

Memory Type N/A

DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C621A

SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2600 BMC

Network Controllers Dual LAN with 10GBase-T with Intel® X550

Graphics ASPEED AST2600 BMC



Input / Output

LAN 2 RJ45 10 Gigabit Ethernet LAN ports

USB 4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output 1 VGA D-Sub Connector port

Serial Port / Header 1 COM Port (1 header)


TPM TPM Header







Expansion Slots

PCI-E 2 PCI-E 4.0 x16,
2 PCI-E 4.0 x8,
1 PCI-E 4.0 x8 (in x16 slot)

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support


Power Configurations ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT

Temperature PECI, CPU thermal trip support

LED CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Suspend static indicator LED

Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Dual Cooling Zones, NCSI header, RoHS, RoT, UID



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)



EAN: 672042400942
