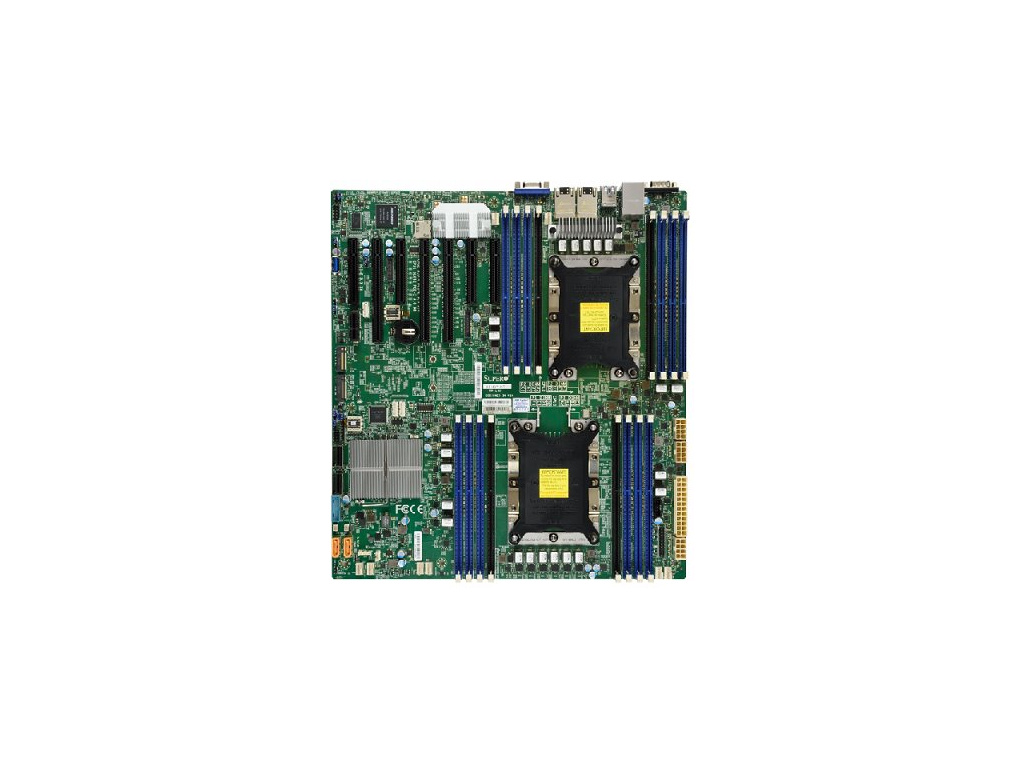

SUPERMICRO MB 2xLGA3647, iC624, 16x DDR4 ECC, 10xSATA3, 2x M.2 (NVMe), PCI-E 3.0/3,4(x16,x8), 2x 10Gb LAN, IPMI, MBD-X11DPH-T-O

Detailní popis produktu

Product SKUs

MBD-X11DPH-T X11DPH-T



Physical Stats

Form Factor E-ATX

Dimensions 12" x 13" (30.48cm x 33.02cm)



Processor/Cache

CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)



System Memory

Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);


Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C622

SATA Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Dual LAN with 10GBase-T with Intel® X722 + X557



Input / Output

SATA 10 SATA3 (6Gbps) ports

LAN 2 RJ45 10GBase-T ports

USB 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 rear)


TPM 1 TPM Header







Expansion Slots

PCI-E 3 PCI-E 3.0 x16,
4 PCI-E 3.0 x8

M.2 M.2 Interface: 2 PCI-E 3.0 x4
Form Factor: 2242/2260/2280/22110
Key: M-Key (RAID 0,1 support)



System BIOS

BIOS Type AMI UEFI



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages

FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, PWM fan speed control

Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Control for 8 Fan Connectors

LED BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID

Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, NCSI header, RoHS, SDDC, UID, WOL



Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)


Parts List




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11DPH-T 1 X11DPH-T Motherboard
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11DPH-T 1 X11DPH-T Motherboard
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF



Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module (optional, not included) AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
TPM security module (optional, not included) AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor



Chassis (Optimized for X11DPH-T)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC826BE1C4-R1K23LPB
SC829HE1C4-R1K62LPB
SC216BE1C4-R1K23LPB
SCLA26E1C4-R609LP
SC836BE1C-R1K23B
SC835TQC-R1K03B
SC846BE1C-R1K23B
SC847BE1C4-R1K23LPB



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11DPH-T)

Server Name

SSG-2029P-E1CR24H
SSG-2029P-E1CR24L
SSG-6029P-E1CR12H
SSG-6029P-E1CR12L
SSG-6029P-E1CR12T
SSG-2029P-ACR24H
SSG-2029P-ACR24L
SSG-6029P-E1CR16T
SSG-6039P-E1CR16H
SSG-6039P-E1CR16L
SSG-6049P-E1CR24L
SSG-6049P-E1CR24H
SSG-6049P-E1CR36H
SSG-6049P-E1CR36L

EAN: 672042291519
