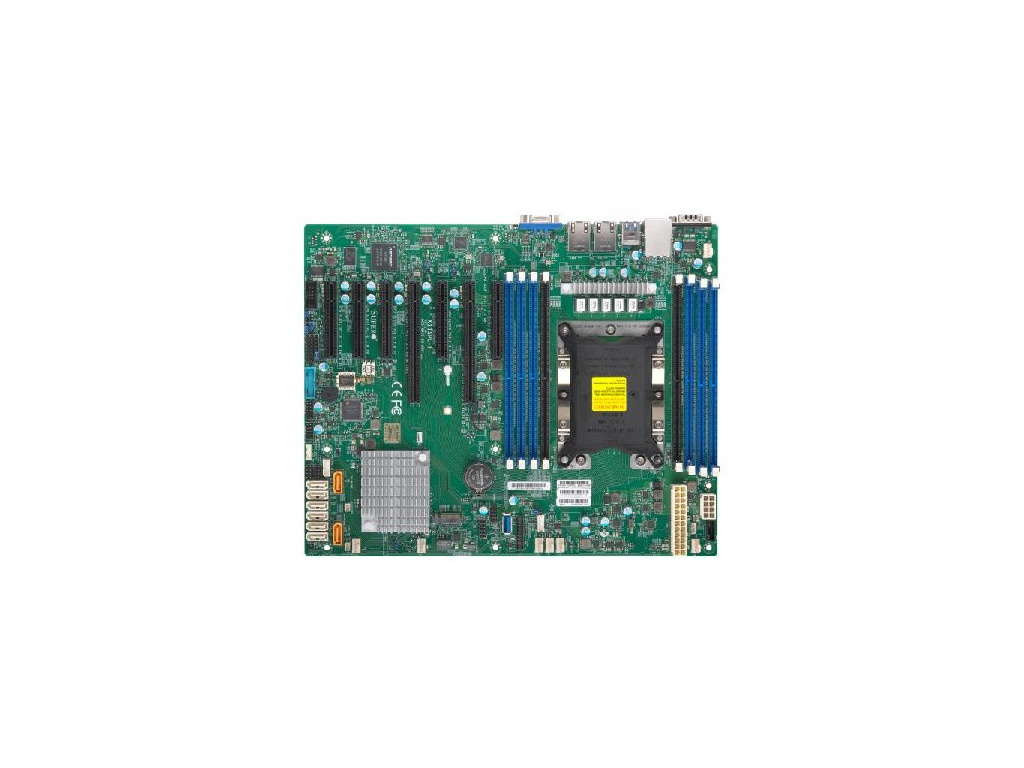

SUPERMICRO MB 1xLGA3647, iC621, 8x DDR4 ECC, 8xSATA3, 1xM.2, PCI-E 3.0/6,1(x8,x1),2x LAN,IPMI, MBD-X11SPL-F-O

Detailní popis produktu

Product SKUs

MBD-X11SPL-F X11SPL-F



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)



Processor/Cache

CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP

Cores / Cache Up to 28 cores

Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP



System Memory

Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)

Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB, 128GB
3DS LRDIMM: 64GB, 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C621

SATA Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Dual LAN with 1GbE with Intel® I210

Graphics ASPEED AST2500 BMC



Input / Output

SATA 8 SATA3 (6Gbps) port

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 8 USB 2.0 ports (2 rear + 6 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM TPM Header







Expansion Slots

PCI-E 2 PCI-E 3.0 x8 (in x16 slot),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)

M.2 M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT

Temperature CPU thermal trip support, PECI

LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED

Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SPL-F 1 X11SPL-F Motherboard
I/O Cables CBL-0044L 2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SPL-F with EMI Gasket



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SPL-F 1 X11SPL-F Motherboard
QRG MNL-1950-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SPL-F with EMI Gasket



Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9670H SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor



Chassis (Optimized for X11SPL-F)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC512F-350B1
SC813MFTQC-350CB2
SC813MFTQC-R407CB
SC113MFAC2-341CB
SC113MFAC2-R606CB
SC113MFAC2-605CB
SC515-350
SC515-R407
SC514-R407C
SC823TQ-653LPB
SC825TQC-R740LPB
SC213LT-600LPB
SC213A-R740LPB
SCLA25TQC-R609LP
SC823MTQC-R802LPB
SC825MBTQC-R802LPB
SC833T-653B
SC842TQC-668B



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SPL-F)

Server Name

SSG-5049P-E1CR45L
SSG-5049P-E1CR45H
