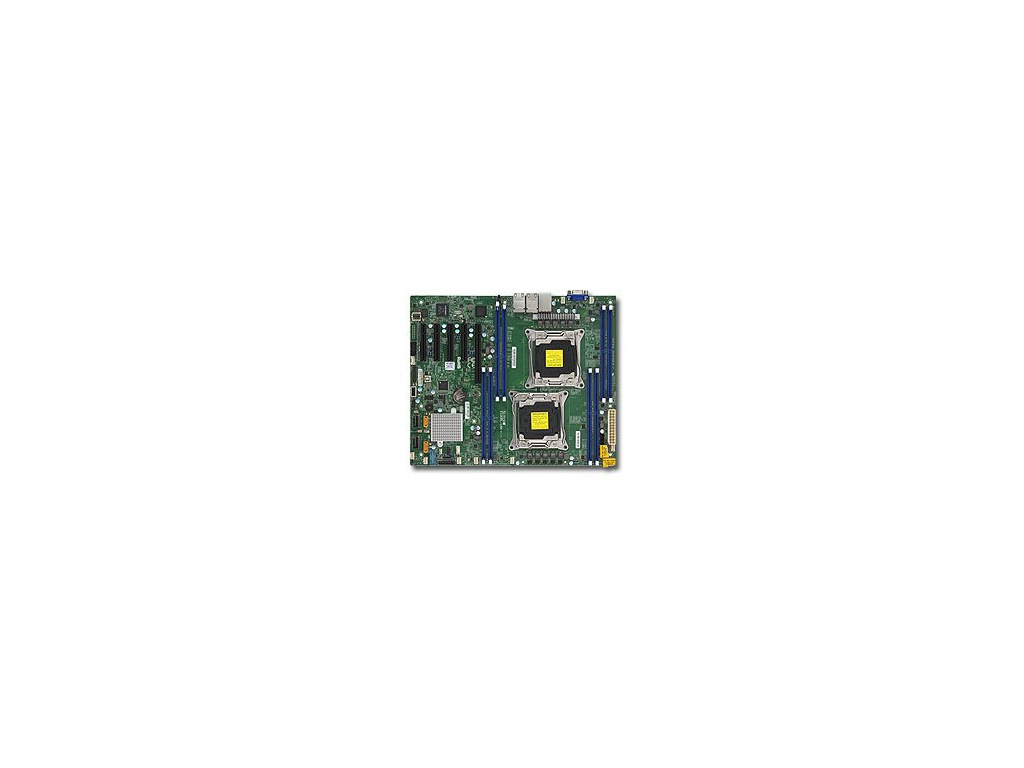

SUPERMICRO MB 2xLGA2011-3, iC612 8x DDR4 ECC,10xSATA3,(PCI-E 3.0/1,2,1(x16,x8,x4)PCI-E 2.0/1(x4),4x LAN,IPMI, MBD-X10DRL-LN4-O

Detailní popis produktu

Product SKUs

MBD-X10DRL-LN4 X10DRL-LN4



Physical Stats

Form Factor ATX

Dimensions 12" x 10" (30.48cm x 25.4cm)



Processor/Cache

CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s

Cores / Cache Up to 22 cores † / Up to 55MB† cache

Note † BIOS version 2.0 or above is required

Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



System Memory

Memory Capacity Up to 1TB Registered ECC RDIMM, DDR4-2400MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots

Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C612

SATA
Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Quad LAN with Intel® i350 Gigabit Ethernet Controller
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 10 SATA3 (6Gbps) port

LAN 4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 2.0 ports (2 rear + 2 headers + 1 Type A)
2 USB 3.0 ports (2 headers)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM TPM Header

Others 2 SATA DOM power connectors







Expansion Slots

PCI-E 2 PCI-E 3.0 x8,
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot)
1 PCI-E 2.0 x4 (in x8 slot)



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features Plug and Play (PnP)
PCI 2.3
ACPI 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1



Management

Software IPMI2.0, KVM with dedicated LAN, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility

FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features Chassis intrusion detection, Chassis intrusion header, Dual Cooling Zones, RoHS



Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)


EAN: 672042232529
