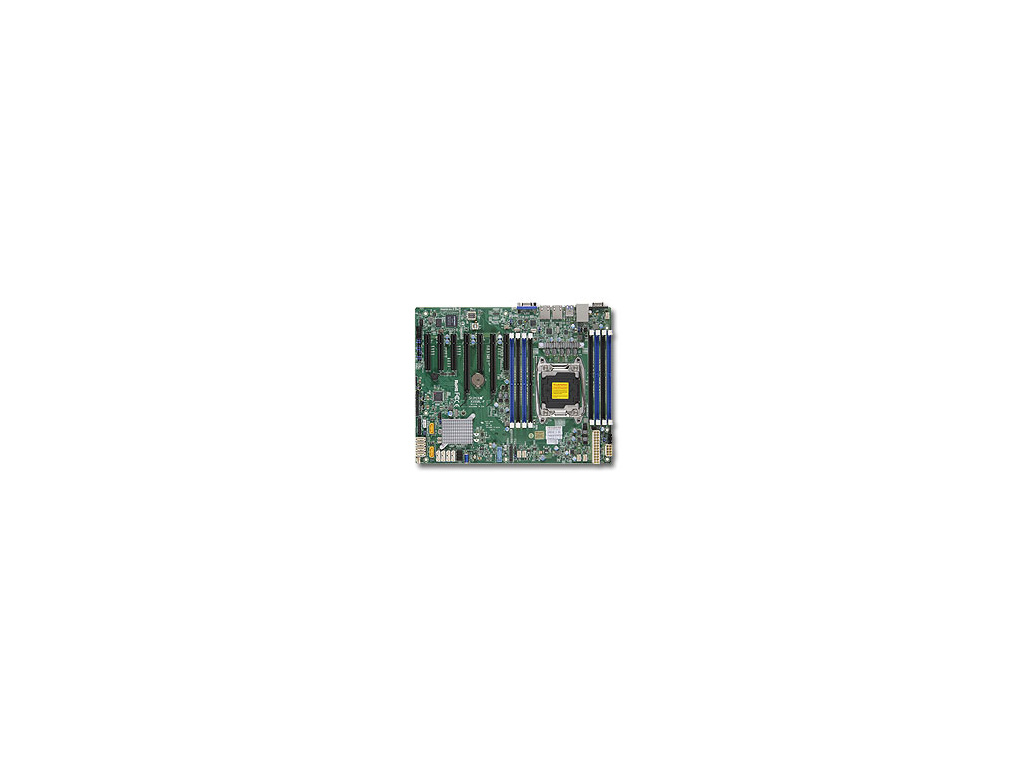

SUPERMICRO MB 1xLGA2011-3, iC612,8x DDR4 ECC,10xSATA3,(PCI-E 3,0 4,2 (x8,x4),2x LAN,IPMI, MBD-X10SRL-F-O
Kód: ALIASBSRMBDX10SRLFO![Výdejní místa KUPSIONLINE.CZ](https://cdn.myshoptet.com/usr/www.kupsionline.cz/user/banners/places6-1.jpg?60ad8451)
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
Product SKUsMBD-X10SRL-F X10SRL-F
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (cm x 24.38cm)
Processor/Cache
CPU Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP
Cores / Cache Up to 22 cores † / Up to 55MB† cache
Note † BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM
Memory Type 2400?/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C612
SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers Dual LAN with Intel® Ethernet Controller I210Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics Aspeed AST2400 BMC
Input / Output
SATA 10 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 8 USB 2.0 ports (2 rear + 6 via headers)
4 USB 3.0 ports (2 rear + 1 via header + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial
TPM TPM Header
Expansion Slots
PCI-E 2 PCI-E 3.0 x4 (in x8 slot) Auto-switch to 1 x8 and 1 x0,
2 PCI-E 3.0 x8,
2 PCI-E 3.0 x8 (in x16 slot)
1 PCI-E 2.0 x4 (in x8 slot)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, HT, VBAT
FAN 6x 4-pin fan headers (up to 6 fans), Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
EAN: 672042156115
Doplňkové parametry
Kategorie: | Socket 2011 |
---|---|
Záruka: | 3 roky |
Hmotnost: | 1.3 kg |
EAN: | 672042156115 |
Kód výrobce: | MBD-X10SRL-F-O |
Položka byla vyprodána… |
