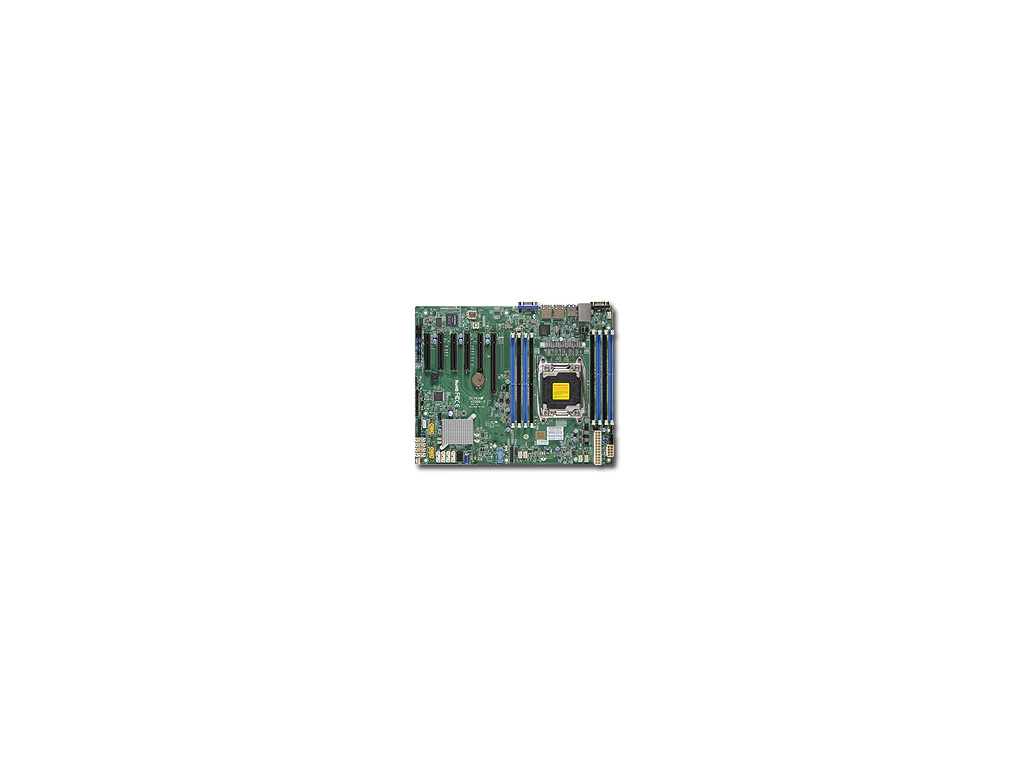

SUPERMICRO MB 1xLGA2011-3, iC612 8x DDR4 ECC,10xSATA3,(PCI-E 3.0/1,2,1(x16,x8,x4) PCI-E 2.0/1,1(x2,x4),2x LAN,IPMI, MBD-X10SRi-F-O

Detailní popis produktu

Product SKUs

MBD-X10SRi-F X10SRi-F



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)



Processor/Cache

CPU Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP

Cores / Cache Up to 22 cores † / Up to 55MB† cache

Note † BIOS version 2.0 or above is required

Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



System Memory

Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slots

Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C612

SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 10 SATA3 (6Gbps) port

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 8 USB 2.0 ports (2 rear + 6 via headers)
4 USB 3.0 ports (2 rear + 1 via header + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serial

TPM TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
2 PCI-E 3.0 x8
1 PCI-E 2.0 x4 (in x8 slot)
1 PCI-E 2.0 x2 (in x8 slot)



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, HT, VBAT

FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)




EAN: 672042156092
