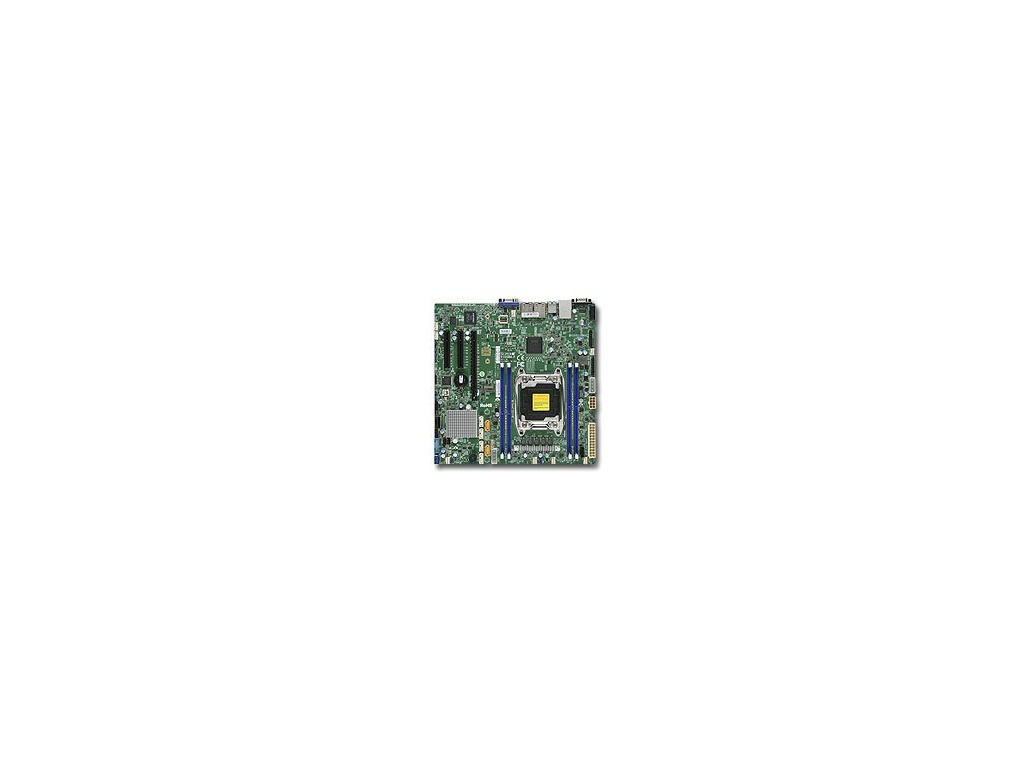

    SUPERMICRO MB 1xLGA2011-3, iC612,4x DDR4 ECC,10xSATA3,(PCI-E 3,0 1,2 (x16,x8),2x LAN,IPMI, MBD-X10SRM-F-O

    Kód: ALIASBSRMBDX10SRMFO
    Neohodnoceno
    Značka: SUPERMICRO
    SUPERMICRO MB 1xLGA2011-3, iC612,4x DDR4 ECC,10xSATA3,(PCI-E 3,0 1,2 (x16,x8),2x LAN,IPMI, MBD-X10SRM-F-O
    9 899 Kč 8 181 Kč bez DPH
    Vyprodáno
    Možnosti doručení
    Položka byla vyprodána…

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 23 let na trhu s IT
    SKLAD
    Sklad
    20 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu


    1. Single socket R3 (LGA 2011) supports

      Intel® Xeon® processor E5-2600 v4†/ v3 and E5-1600 v4†/ v3 family

    2. Intel® C612 chipset

    3. Up to 512GB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz; 4 DIMM slots

    4. 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8

    5. Intel® i350 Dual GbE LAN ports

    6. 10 SATA3 (6Gbps) via C612

    7. 1 VGA, 2 COM, 1 TPM

    8. 5 USB 3.0 ports, 6 USB 2.0 ports

    9. 2 SuperDOM with built-in power



    Specifications






























    Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs.

    MBD-X10SRM-F

    • X10SRM-F























    Physical Stats

    Form Factor

    • Micro-ATX
    Dimensions

    • 9.6" x 9.6" (24.38cm x 24.38cm)































    Processor/Cache

    CPU

    • Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4

    • Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDP
    Cores / Cache

    • Up to 22 cores † / Up to 55MB† cache
    Note

    • † BIOS version 2.0 or above is required
    Note

    • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



































    System Memory

    Memory Capacity

    • Up to 128GB Registered ECC RDIMM, DDR4-2400MHz; Up to 256GB Registered ECC LRDIMM, DDR4-2400MHz, in 4 DIMM slotsUp to 512GB ECC 3DS LRDIMM

    • 4x 288-pin DDR4 DIMM slots
    Memory Type

    • 2400?/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
    DIMM Sizes

    • RDIMM: 4GB, 8GB, 16GB, 32GB

    • LRDIMM: 32GB, 64GB

    • 3DS LRDIMM: 128GB
    Memory Voltage

    • 1.2V
    Error Detection

    • Corrects single-bit errors

    • Detects double-bit errors (using ECC memory)



































    On-Board Devices

    Chipset

    • Intel® C612
    SATA

    • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,10
    IPMI

    • Support for Intelligent Platform Management Interface v.2.0

    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    • ASPEED AST2400 BMC
    Network Controllers

    • Dual LAN with Intel® i350 Gigabit Ethernet ControllerSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Graphics

    • ASPEED AST2400 BMC







































    Input / Output

    SATA

    • 10 SATA2 (3Gbps) ports
    LAN

    • 2 RJ45 Gigabit Ethernet LAN ports

    • 1 RJ45 Dedicated IPMI LAN port
    USB

    • 6 USB 2.0 ports (2 rear + 4 via headers)

    • 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
    Video Output

    • 1 VGA port
    Serial Port / Header

    • 2 COM Ports (1 rear, 1 header)

      2 fast UART 16550 serial
    TPM

    • TPM Header

































    Expansion Slots

    PCI-E

    • 1 PCI-E 3.0 x16,

    • 2 PCI-E 3.0 x8
    M.2

    • M.2 Interface: 1 SATA/PCI-E 2.0 x4

    • Form Factor: 2242, 2280, 22110























    System BIOS

    BIOS Type

    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features

    • Plug and Play (PnP)

    • APM 1.2

    • DMI 2.3

    • PCI 2.3

    • ACPI 1.0 / 2.0 / 3.0 / 4.0

    • USB Keyboard support

    • Hardware BIOS Virus protection

    • SMBIOS 2.7.1

    • UEFI 2.3.1

    • RTC (Real Time Clock) Wakeup























    Management

    Software

    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
    Power Configurations

    • ACPI Power Management

    • Keyboard Wakeup from Soft-Off

    • CPU Fan auto-off in sleep mode

    • Power-on mode for AC power recovery































    PC Health Monitoring

    Voltage

    • +12V, +3.3V, +5V, +5V standby, HT, VBAT
    Temperature

    • Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECI
    LED

    • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
    Other Features

    • Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free































    Operating Environment

    Operating Temperature Range

    • 0°C ~ 60°C (32°F ~ 140°F)
    Non-Operating Temperature Range

    • -20°C ~ 60°C (-4°F ~ 140°F)
    Operating Relative Humidity Range

    • 10% ~ 85% (non-condensing)
    Non-Operating Relative Humidity Range

    • 10% ~ 95% (non-condensing)







    Parts List



































    Parts List (Bulk Package)
    Name Part Number Qty Description
    Motherboard MBD-X10SRM-F 1 X10SRM-F Motherboard
    I/O Cable 1 CBL-0044L 2 57.5CM SATA FLAT S-S PBF
    I/O Shield MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket








    Chassis (Optimized for

    X10SRM-F


    )






















    Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
       SC514-R400C

     SC514-505

     SC515-R407

     SC515-505

     SC515-350

     SC113MFAC2-605CB

     SC113MFAC2-R606CB

     SC813MFTQC-R407CB

     SC813MFTQC-350CB    		  SC825TQC-R740LPB

     SC825MTQ-R700LPB

     SC213LT-600LPB

     SC823TQ-653LPB    		  SC833T-653B  SC731i-300B  4U Heatsink:SNK-P0050AP4 (CPU1)






     = Most optimized Chassis for SuperServer Configuration

    Blue color = Compatible

    Green color = Global SKU & Compatible

    Red dot & green color = Optimized + Global SKU





    EAN: 672042229437

    Doplňkové parametry

    Kategorie: Socket 2011
    Záruka: 3 roky
    Hmotnost: 1.3 kg
    EAN: 672042229437
    Kód výrobce: MBD-X10SRM-F-O
