ASUS PRIME B860-PLUS-CSM, 90MB1KA0-M0EAYC

Detailní popis produktu

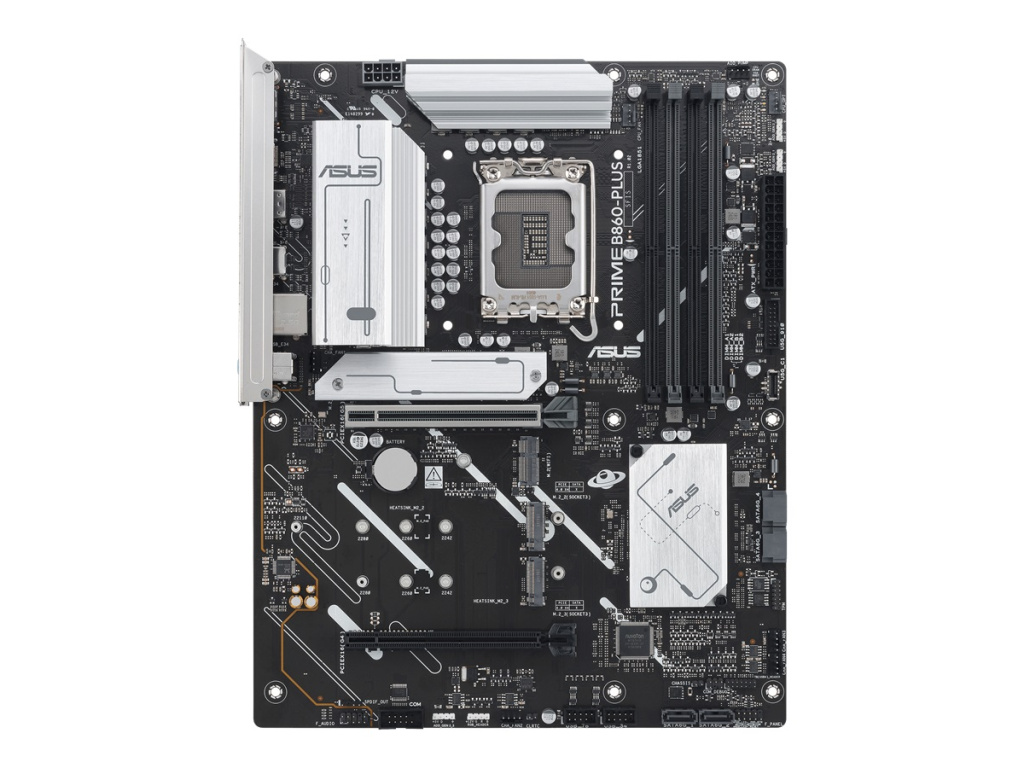

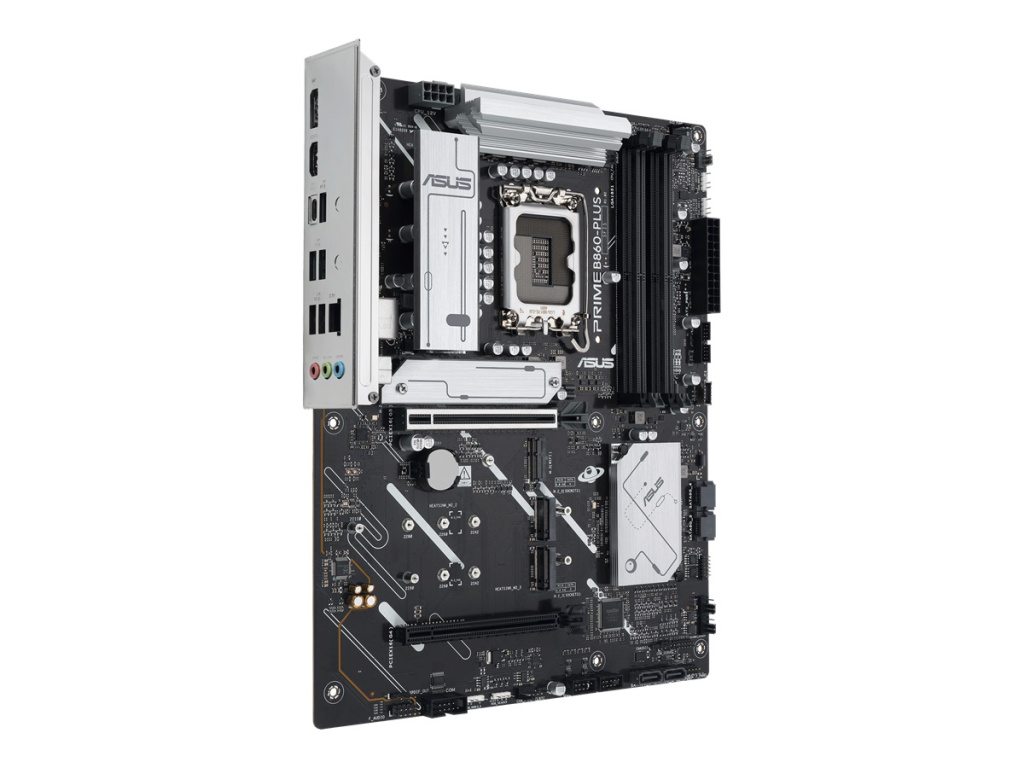

ASUS PRIME B860-PLUS
ATX Form Factor
CPU: Support Intel® Core™ Ultra Processors (Series 2) - LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dvoukanálová paměťová architektura
DIMM Fit
Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III (AEMP III)
Grafické porty:
1 x DisplayPort
1 x HDMI™ port
Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Úložný prostor: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet:
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Připojení a Bluetooth:
Pouze slot M.2 (Key E, CNVi a PCIe) - Modul Wi-Fi se prodává samostatně
USB: Zadní USB (Total 7 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2x USB 2.0 ports (2 x Type-A) Přední USB (Total 7 ports)
1 x USB 5Gbps port (1 x USB Type-C®)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers

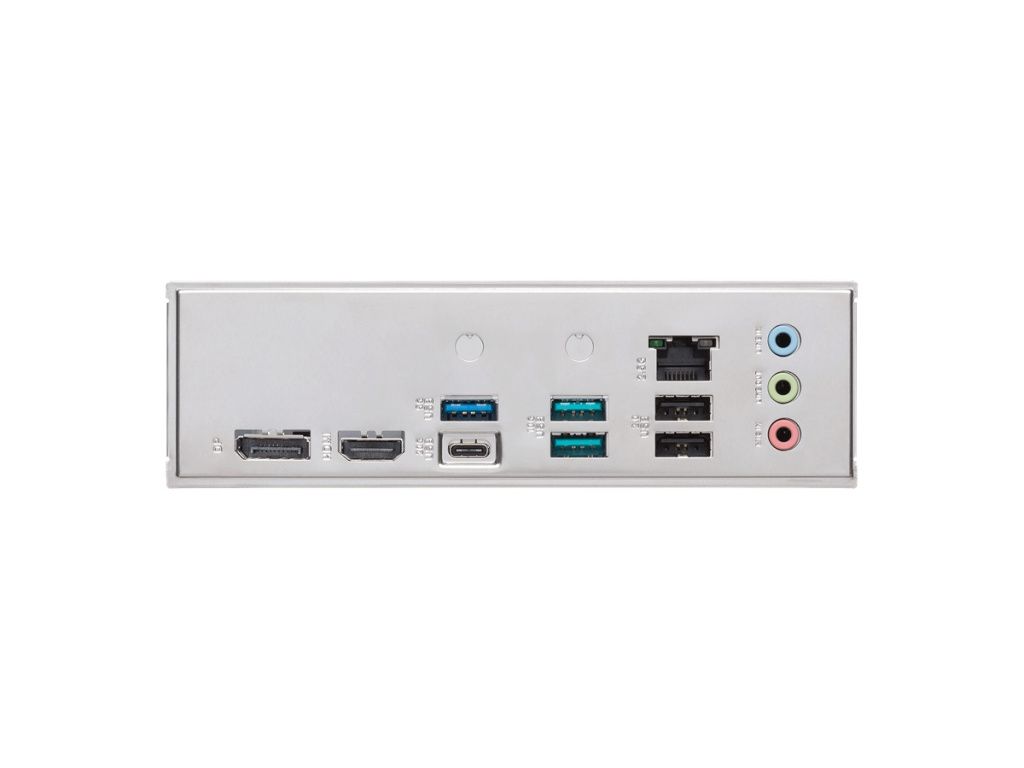

Vstupy/výstupy zadního panelu:
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Interní vstupy/výstupy: Ventilátory a chlazení:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers Napájení:
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector Úložiště:
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB:
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header support 4 additional USB 2.0 ports Různé:
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Příslušenství: Kabely:
2 x SATA 6Gb/s cables Různé:
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E Dokumenty:
1 x Quick start guide

EAN: 4711387814857
