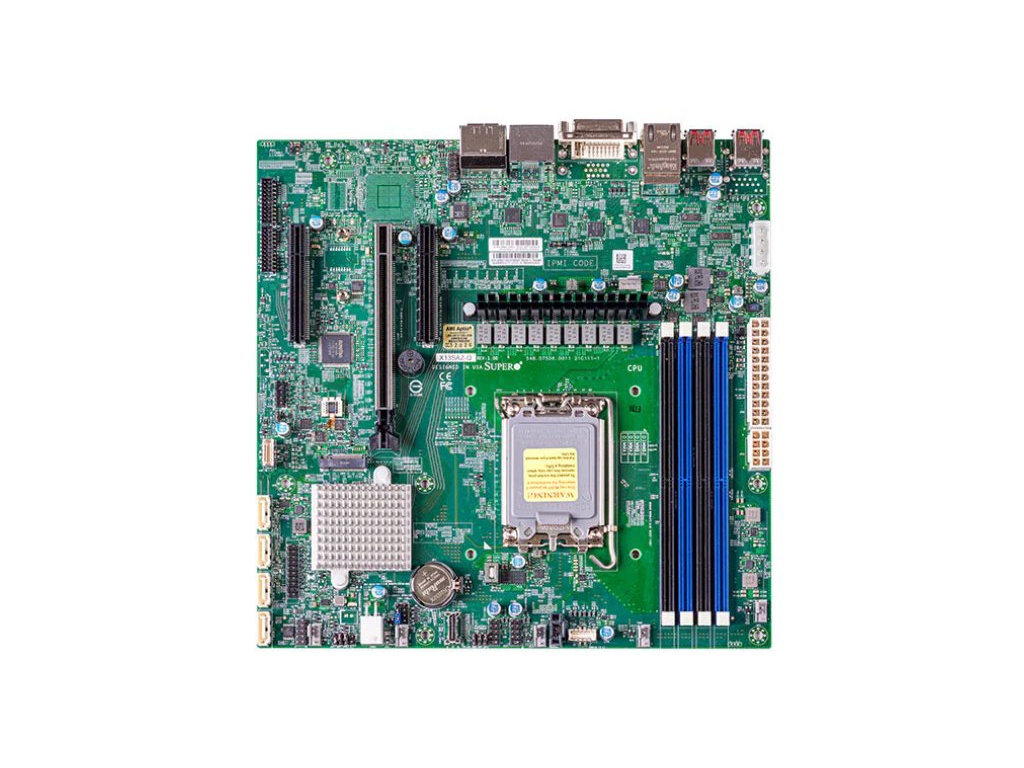

SUPERMICRO MB LGA1700 (core 12g), Q670E,4xDDR5,8xSATA3,M.2, PCIe5.0 x16, 2x PCIe4.0 x4, HDMI,2xDP,DVI,Audio,2x 2.5GLAN, MBD-X13SAZ-Q-O

Detailní popis produktu

Key Features

1. 12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP


2. Intel® Q670E


3. Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots


4. 1 PCIe 5.0 x16 slot,

   2 PCIe 4.0 x4 slots,

   1 PCIe 4.0 x4 OCulink port

   M.2 Interface: 1 PCIe 4.0 x4

   M.2 Form Factor: 2280/22110

   M.2 Key: M-Key


5. Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]


6. Intel® Q670E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10


7. 4 Independent Displays (2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port)


8. Supports 12V DC power input


9. Onboard TPM2.0

Product SKUs MBD-X13SAZ-Q X13SAZ-Q Physical Stats Form Factor Micro-ATX Dimension 9.6" x 9.6" (24.38cm x 24.38cm) Processor CPU 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket LGA-1700 supported Core Up to 16 cores System Memory Memory Capacity 4 DIMM slots Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots Memory Type 4400/4000/3600MHz DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.1V On-Board Devices Chipset Intel Q670E SATA Intel Q670E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Audio 1x ALC 888S HD Audio port(s)ALC 888S HD Audio Network Controllers Dual LAN with Intel® Ethernet i225LM Input / Output SATA 4 SATA3 (6Gbps) port(s) USB 2 USB 2 port(s) (2 via header) 6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A) 2 USB 3.1 Gen1 port(s) (2 via header) Video Output 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s) Serial Port 4 COM Port(s) (2 header RS232/422/485; 2 header RS232) TPM TPM Header & Chip both

Standard Parts (Bulk Package)
	Part Number	Qty	Description
I/O Cables	CBL-0044L •	2	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00177-0N	1	Standard I/O Shield for X13SAZ with EMI Gasket

Standard Parts (Retail Package)
	Part Number	Qty	Description
I/O Cables	CBL-0044L •	4	57.5CM SATA FLAT S-S PBF
I/O Shield	MCP-260-00177-0N	1	Standard I/O Shield for X13SAZ with EMI Gasket
QRG	MNL-2477-QRG	1	Motherboard Quick Reference Guide

Optional Parts
	Part Number	Qty	Description
1U I/O Shield	MCP-260-00178-0N	-	1U I/O Shield For SC515/813/815
4U CPU Heat Sink for Socket H(optional, not included)	SNK-P0086AP4 •	-	CPU Active Heatsink for 4U chassis
COM Port Cable	CBL-CDAT-0604 •	-	40CM Dual Serial Port Cable with bracket
I/O Shield	MCP-260-00177-0N	-	Standard I/O Shield for X13SAZ with EMI Gasket
Passive heatsink	SNK-P0086	-	CPU Passive Heatsink for 1U chassis
USB Cable	CBL-CUSB-0835 •	-	Dual 55cm USB 3.2 Type A cable
