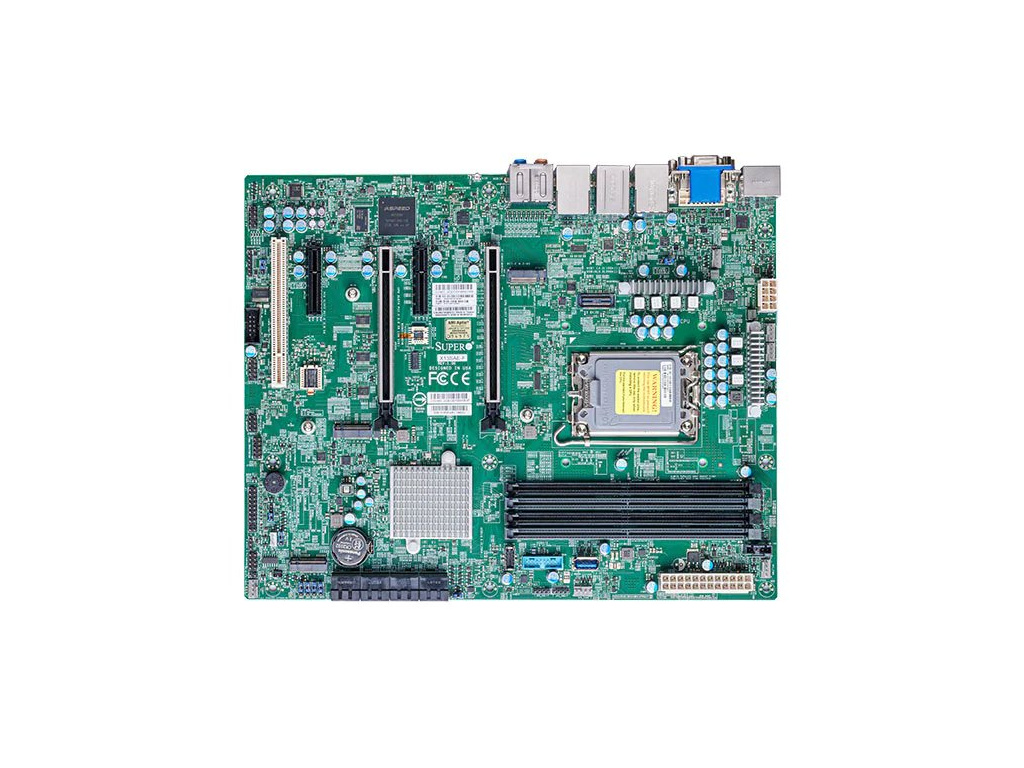

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,2xM.2,2x PCIe5.0 x16, 2x PCIe3.0 x4, PCI,HDMI,DP,DVI,Audio,2x LAN, MBD-X13SAE-O

Kód: ALIASBSRMBDX13SAEO
11 479 Kč 9 487 Kč bez DPH
Skladem online (4 ks)
Můžeme doručit do:
26.11.2024
Možnosti doručení

Detailní informace

Detailní popis produktu




















Product SKUs
MBD-X13SAE
















Physical Stats
Form Factor

  • ATX


Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)


















Processor
CPU

  • 12th/13th Gen Intel® Core™ i3/i5/i7/i9 Processors

  • Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 150W TDP


Core

  • Up to 24 (8+16) cores


























System Memory
Memory Capacity

  • 4 DIMM slots

  • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz


Memory Type

  • 4400/4000/3600 MT/s 192GB


DIMM Sizes

  • 8GB, 16GB, 24GB, 32GB, 48GB

  • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB


Memory Voltage

  • 1.1V


























On-Board Devices
Chipset

  • Intel® W680


SATA

  • Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10


Audio

  • ALC 888S HD Audio


Network Controllers

  • Single LAN with Intel® PHY I219LM LAN controller

  • Single LAN with Intel® Ethernet i225V






























Input / Output
LAN

  • 1 RJ45 Gigabit Ethernet LAN ports

  • 1 RJ45 2.5 Gigabit Ethernet LAN port


USB

  • 4 USB 2.0 port(s) (2 rear; 2 via header)

  • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)

  • 3 USB 3.2 Gen2x1 port(s) (3 rear type A)

  • 3 USB 3.2 Gen1x1 port(s) (2 via header; 1 Vertical Type A)


Video Output

  • 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)


Serial Port

  • 1 COM Port(s) (1 header)


TPM

  • 1 TPM Header




































Expansion Slots
PCIe

  • 2 PCIe 5.0 x16 slots (16/NA or 8/8),

  • 2 PCIe 3.0 x4


M.2

  • M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5

  • Form Factor: 2280

  • Key: M-Key


Note

  • 1 5V PCI 32bit


















System BIOS
BIOS Type

  • 256MB SPI Flash with AMI BIOS


BIOS Features

  • ACPI 6.0

  • Plug and Play (PnP)

  • BIOS rescue hot keys

  • Riser card auto-detection support

  • SMBIOS 3.0 or later


















Management
System Management Software

  • SuperDoctor 5


Power Configurations

  • Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN














Security
Hardware

  • Trusted Platform Module (TPM) 2.0


























PC Health Monitoring
Voltage

  • VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH


LED

  • Power LED

  • Catastrophic Error LED


FAN

  • 5x 4-pin fan headers (up to 5 fans)

  • Fan speed control

  • Overheat LED indication


Other Features

  • CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector


















Operating Environment
Operating Temperature Range

  • 0°C - 50°C (32°F - 122°F)


Non-Operating Temperature Range

  • -20°C - 60°C (-4°F - 140°F)








EAN: 672042472840

Doplňkové parametry

Kategorie: Socket 1700
Záruka: 3 roky
Hmotnost: 1.16 kg
EAN: 672042472840
Kód výrobce: MBD-X13SAE-O
