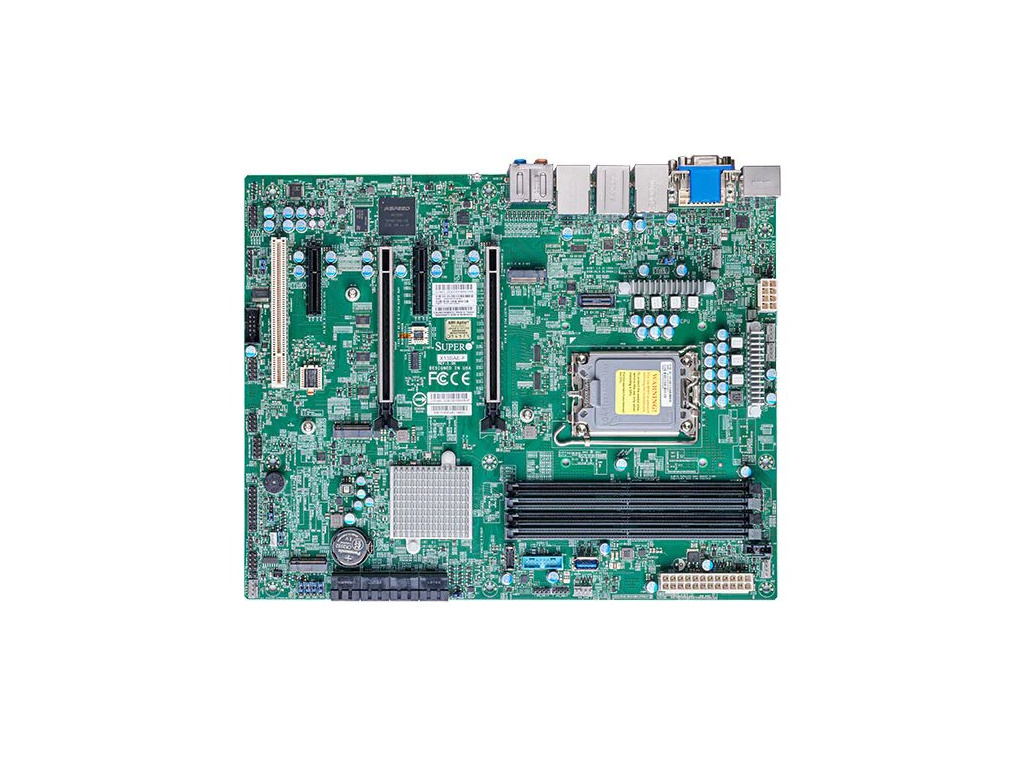

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,2xM.2,2x PCIe5.0 x16, 2x PCIe3.0 x4, PCI,HDMI,DP,DVI,Audio,2x LAN, MBD-X13SAE-F-O

Detailní popis produktu

Key Features

1. 12th Generation Intel® Core™ i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP


2. Intel® W680


3. Single LAN with Intel® Ethernet i225LM

   Single LAN with Intel® PHY I219LM LAN controller

   for AMT/vPro

   Single LAN with RTL8211

   Dedicated LAN for IPMI


4. 2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4

   1 - 5V PCI 32bit



   M.2 Interface: 3 PCI-E 4.0 x4, RAID 0,1,5

   M.2 Form Factor: 2280

   M.2 Key: M-Key


5. 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots


6. Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10


7. 1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port
