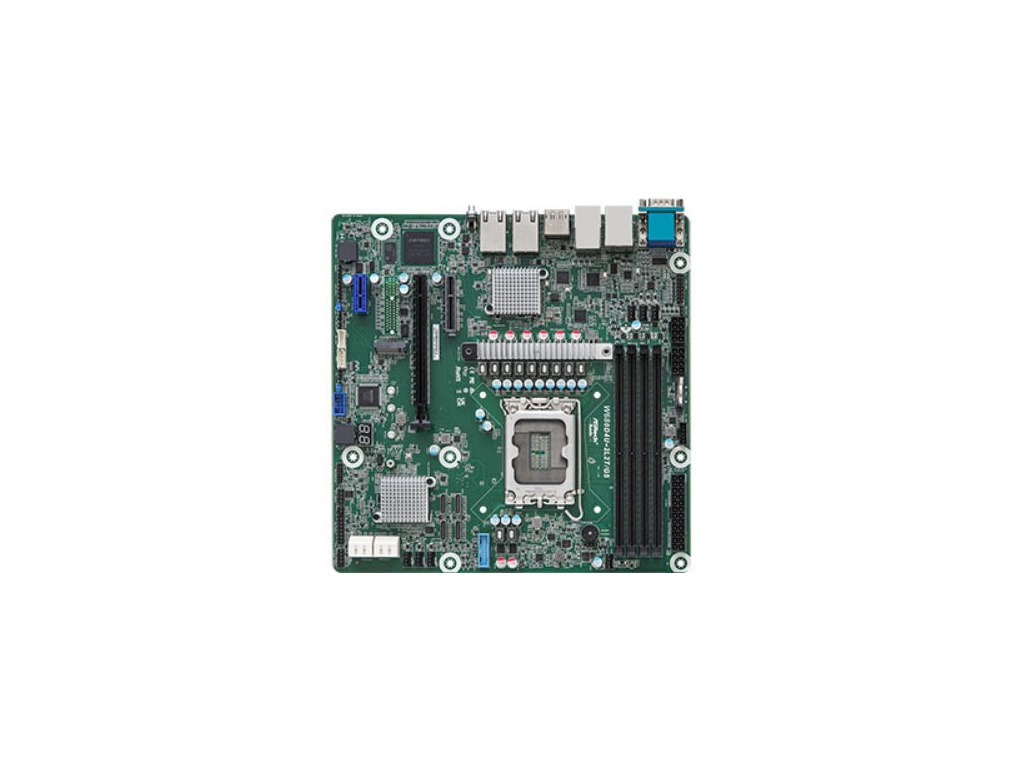

ASRock Rack W680D4U-2L2T/G5 LGA1700, 4x DDR5, 8x SATA, M.2(2280), 3x PCIe, 2x 1Gb +2x 10Gb LAN, IPMI, W680D4U-2L2T/G5
Kód: ALIASBAGW680D4U2L2TG5
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
W680D4U-2L2T/G5
- Micro-ATX (9.6" x 9.6")
- Supports 12th & 13th Gen Intel® Core™ series processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
- 3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
- Supports 1 M.2 (PCIe3.0 x4)
- 2 RJ45 (10GbE) by Intel® X710
- 2 RJ45 (1GbE) by Intel® i210
- Up to 8 SATA 6Gb/s
- 1 VGA, 1 HDMI, 1 DisplayPort
- Remote Management (IPMI)
Specifications
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6'' x 9.6'' (244 mm x 244 mm) |
| Processor System | |
| CPU | Supports 12th & 13th Gen Intel® Core™ series processors |
| Socket | Single Socket LGA 1700 |
| Thermal Design Power | 125W |
| Chipset | Intel® W680 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 32GB |
| Max. DIMM Frequency | 4400MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 | SLOT7: PCIe4.0 x4 [CPU] |
| PCIe x 1 | SLOT4: PCIe3.0 x1 [PCH] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor |
| OCuLink | 1 OCuLink (PCIe4.0 x4)* [CPU] 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH] 2 OCuLink (PCIe4.0 x4) [PCH] *OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated. |
| SATA/SAS Storage | |
| PCH Built-in Storage | Intel W680 (up to 8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 OCuLink |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X710 2 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA) Intel® Integrated Processor Graphics: 1 HDMI, 1 DisplayPort |
| Rear I/O | |
| UID Button/LED | 1 button w/ LED |
| VGA Port | 1 DB15 (VGA), 1 HDMI, 1 DisplayPort |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |
| RJ45 | 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header | 1 |
| Speaker Header | 1 (4-pin) |
| Buzzer | 1 |
| Fan Header | 7 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 (4-pin, LAN3/LAN4 LED) |
| ME/SPS Recovery | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | Plug and Play (PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, VR, M.2, X710, TR Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12V |
| Supported OS | |
| OS | Windows® 10 (64bit) Windows® 11 (64 bit) |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
EAN: 4710483941405
Doplňkové parametry
| Kategorie: | Socket 1700 |
|---|---|
| Záruka: | 24 m |
| Hmotnost: | 1.1 kg |
| EAN: | 4710483941405 |
| Kód výrobce: | W680D4U-2L2T/G5 |
