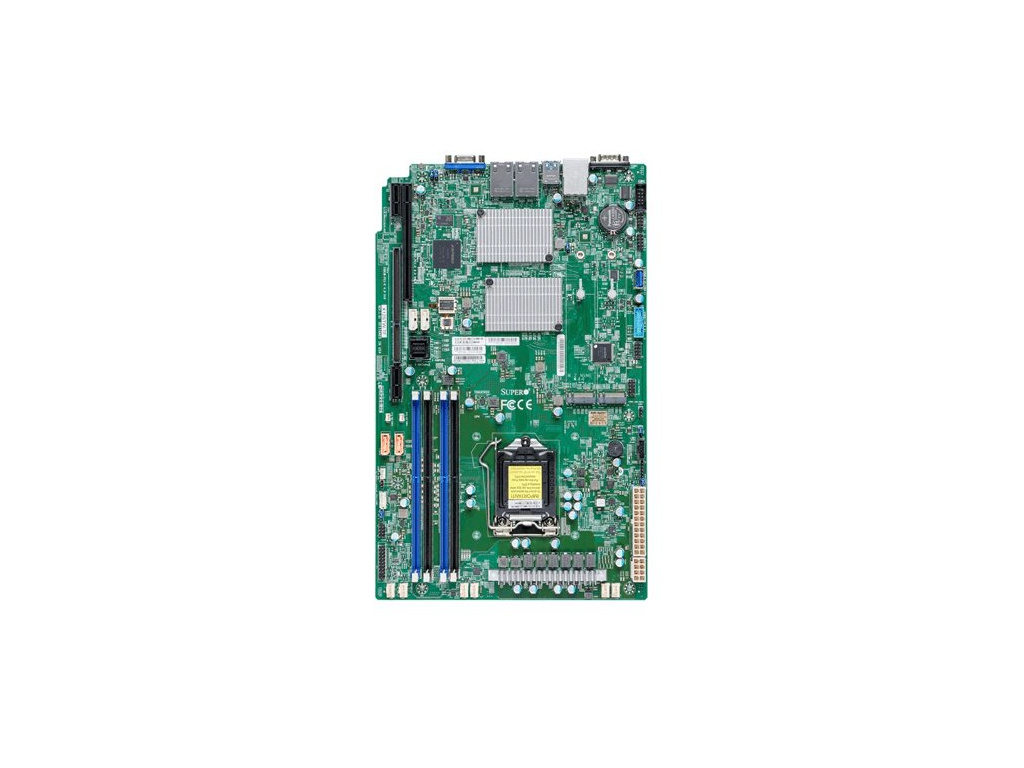

    SUPERMICRO MB LGA1200 (Xeon E3-2300), C256, 4xDDR4, 8xSATA3, 2xM.2, PCIe4.0 x16 PCIe3 x4, VGA, 2x 10Gb, IPMI, MBD-X12STW-TF-O

    Kód: ALIASBSRMBDX12STWTFO
    Neohodnoceno
    Značka: SUPERMICRO
    SUPERMICRO MB LGA1200 (Xeon E3-2300), C256, 4xDDR4, 8xSATA3, 2xM.2, PCIe4.0 x16 PCIe3 x4, VGA, 2x 10Gb, IPMI, MBD-X12STW-TF-O
    12 319 Kč 10 181 Kč bez DPH
    Vyprodáno
    Možnosti doručení
    Položka byla vyprodána…

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 23 let na trhu s IT
    SKLAD
    Sklad
    20 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu







    Key Features

    1. Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP

    2. Intel® C256

    3. Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz

    4. 1 PCI-E 4.0 x16 Left Riser Slot

      1 PCI-E 3.0 x4 (in x8, Right Riser slot)

    5. M.2 Interface: 1 PCI-E 4.0 x4 and 1 PCI-E 3.0 x4

      M.2 Form Factor: 2280/22110

      M.2 Key: M-Key Double Height Connector

    6. Dual LAN with Intel® X550 10GBase-T Ethernet Controller

    7. Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

    8. 1 VGA port

    9. 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)

      1 USB 3.2 Gen2 port (1 Type A)

      6 USB 2.0 ports (2 rear + 4 via headers)


    Specifications






























    Product SKUs

    MBD-X12STW-TF

    • X12STW-TF



























    Physical Stats

    Form Factor

    • Proprietary WIO
    Dimension

    • 8" x 13" (20.32cm x 33.02cm)



























    Processor

    CPU

    • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor

    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
    Core

    • Up to 8 cores, 16 threads







































    System Memory

    Memory Capacity

    • 4 DIMM slots

    • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
    Memory Type

    • 3200/2933/2666MHz SDRAM
    DIMM Sizes

    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage

    • 1.2V
    Error Detection

    • Corrects single-bit errors







































    On-Board Devices

    Chipset

    • Intel® C256
    SATA

    • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI

    • ASPEED AST2600 BMC
    Graphics

    • ASPEED AST2600 BMC
    Network Controllers

    • Dual LAN with Intel® X550 10GBase-T Ethernet Controller















































    Input / Output

    SATA

    • 8 SATA3 (6Gbps) port(s)
    LAN

    • 2 RJ45 10 Gigabit Ethernet LAN ports
    USB

    • 6 USB 2.0 port(s) (4 via header; 2 rear)

    • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)

    • 1 USB 3.2 Gen2 port(s) (1 type A)
    Video Output

    • 1 VGA port(s)
    Serial Port

    • 2 COM Port(s) (1 header; 1 rear)
    DOM

    • 2 SATA DOM (Disk on Module) power connector support
    TPM

    • 1 TPM Header





































    Expansion Slots

    PCI-E

    • 1 PCI-E 4.0 x16 Left Riser Slot,

    • 1 PCI-E 3.0 x4 (in x8 slot)
    M.2

    • M.2 Interface: 1 PCI-E 4.0 x4; 1 PCI-E 3.0 x4

    • Form Factor: 2280/22110

    • Key: M-Key

    • Double Height Connector



























    System BIOS

    BIOS Type

    • 256MB UEFI
    BIOS Features

    • ACPI 6.0

    • SMBIOS 3.3

    • Plug and Play (PnP)

    • RTC (Real Time Clock) Wakeup

    • UEFI 2.7

    • USB Keyboard support

    • PCI 3.0































    Management

    Software

    • SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
    System Management Software

    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations

    • ACPI Power Management







































    PC Health Monitoring

    Voltage

    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
    LED

    • UID/Remote UID

    • CPU / System Overheat LED
    Temperature

    • Monitoring for CPU and chassis environment

    • CPU thermal trip support

    • Thermal Monitor 2 (TM2) support

    • PECI
    FAN

    • 6x 4-pin fan headers (up to 6 fans)

    • Thermal control tachometer fan connectors

    • Fan speed control

    • 6 fans with tachometer status monitoring

    • Overheat LED indication
    Other Features

    • WOL

    • UID

    • Node Manager Support

    • M.2 NGFF connector

    • CPU thermal trip support for processor protection

    • Control of power-on for recovery from AC power loss

    • Chassis intrusion header

    • Chassis intrusion detection

    • ACPI power management



































    Operating Environment

    Operating Temperature Range

    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range

    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range

    • 8% - 90% (non-condensing)
    Non Operating Relative Humidity Range

    • 5% - 95% (non-condensing)






















    Parts List





























    Parts List (Bulk Package)
    Name Part Number Qty Description
    Motherboard MBD-X12STW-TF 1 X12STW-TF Motherboard
    I/O Cables CBL-0044L •  2 57.5CM SATA FLAT S-S PBF




































    Parts List (Retail Package)
    Name Part Number Qty Description
    Motherboard MBD-X12STW-TF 1 X12STW-TF Motherboard
    I/O Cables CBL-0044L •  4 57.5CM SATA FLAT S-S PBF
    QRG MNL-2354-QRG 1 Motherboard Quick Reference Guide







































    Optional Parts List
    Name Part Number Qty Description
    TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor




    Server (Optimized for X12STW-TF)










    EAN: 672042461660

    Doplňkové parametry

    Kategorie: Socket 1200
    Záruka: 24 m
    Hmotnost: 1.28 kg
    EAN: 672042461660
    Kód výrobce: MBD-X12STW-TF-O
