Domů / Komponenty / Základní desky / Intel / Socket 1200 / SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 4x LAN, IPMI, MBD-X12STH-LN4F-O

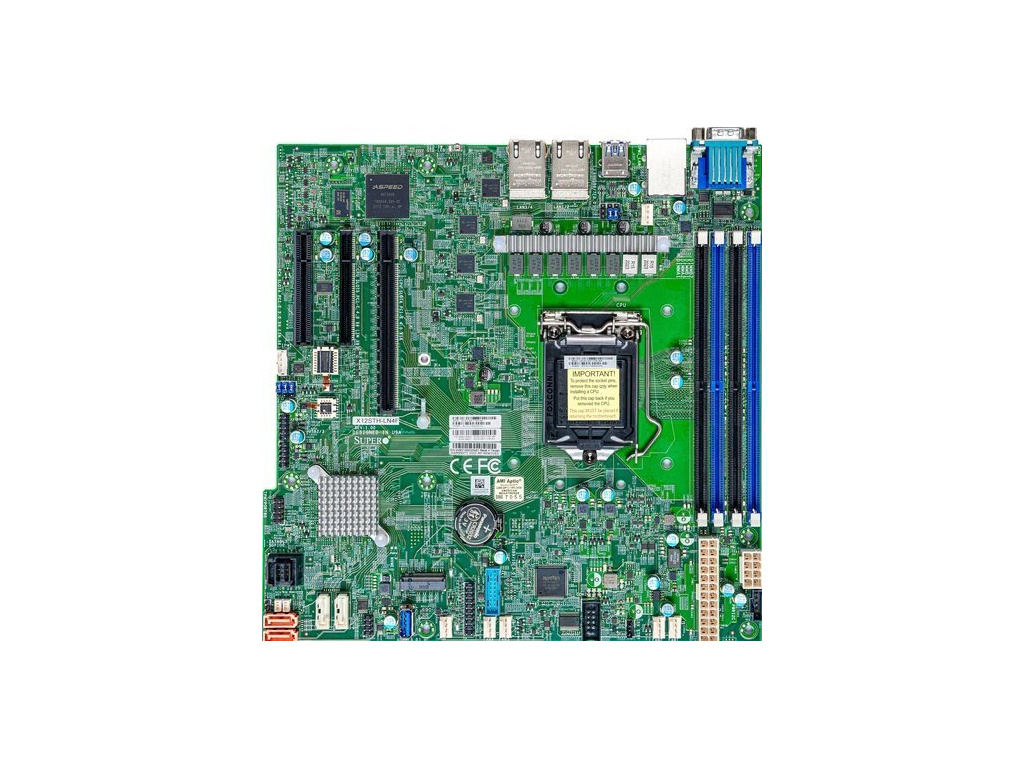

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 4x LAN, IPMI, MBD-X12STH-LN4F-O
Neohodnoceno
Kód produktu: ALIASBSRMBDX12STHLN4FO
SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 4x LAN, IPMI, MBD-X12STH-LN4F-O
Loading...

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 4x LAN, IPMI, MBD-X12STH-LN4F-O

Neohodnoceno
Kód produktu: ALIASBSRMBDX12STHLN4FO
Položka byla vyprodána…
Přidat k porovnání
Přidat k oblíbeným
Vyprodáno Možnosti doručení
9 839 Kč 8 131 Kč bez DPH
Ověřený obchod
Ověřený obchod
Více než 23 let na trhu s IT
SKLAD
Sklad
20 000 produktů připraveno skladem
Výdejní místa KUPSIONLINE.CZ
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Doprava zdarma
Doprava zdarma
Při nákupu nad 10tis. Kč doprava zdarma

Detailní popis produktu







Key Features

  1.

  2. Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

  3. Intel® C256

  4. Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

  5. 1 PCI-E 4.0 x16

    1 PCI-E 4.0 x4 (in x8 slot)

    1 PCI-E 3.0 x4 (in x8 slot)

    M.2 Interface: PCI-E 3.0 x4

    M.2 Form Factor: 2280, 22110

    M.2 Key: M-Key

  6. Quad LAN with Intel® Ethernet Controller I210

  7. Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  8. 2 SuperDOM with built-in power

  9. I/O: 1 VGA, 2 COM, 1 TPM header

  10. 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)

  11. Gen12 iGPU support






Specifications






























Product SKUs

MBD-X12STH-LN4F

  • X12STH-LN4F



























Physical Stats

Form Factor

  • Micro-ATX
Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)



























Processor

CPU

  • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core

  • Up to 8 cores, 16 threads







































System Memory

Memory Capacity

  • 4 DIMM slots

  • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type

  • 3200/2933/2666MHz SDRAM
DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB
Memory Voltage

  • 1.2V
Error Detection

  • Corrects single-bit errors







































On-Board Devices

Chipset

  • Intel® C256
SATA

  • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI

  • ASPEED AST2600 BMC
Graphics

  • ASPEED AST2600 BMC
Network Controllers

  • Quad LAN with Intel® Ethernet Controller I210















































Input / Output

SATA

  • 8 SATA3 (6Gbps) port(s)
LAN

  • 4 RJ45 Gigabit Ethernet LAN ports
USB

  • 6 USB 2.0 port(s) (4 via header; 2 rear)

  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output

  • 1 VGA port(s)
Serial Port

  • 2 COM Port(s) (1 header; 1 rear)
DOM

  • 2 SATA DOM (Disk on Module) power connector support
TPM

  • 1 TPM Header





































Expansion Slots

PCI-E

  • 1 PCI-E 3.0 x4 (in x8 slot),

  • 1 PCI-E 4.0 x16,

  • 1 PCI-E 4.0 x4 (in x8 slot)
M.2

  • M.2 Interface: 1 PCI-E 3.0 x4

  • Form Factor: 2280/22110

  • Key: M-Key



























System BIOS

BIOS Type

  • 256MB UEFI
BIOS Features

  • ACPI 6.0

  • SMBIOS 2.7

  • Plug and Play (PnP)

  • RTC (Real Time Clock) Wakeup

  • UEFI 2.7

  • USB Keyboard support

  • PCI 3.0































Management

Software

  • SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software

  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations

  • Power-on mode for AC power recovery, ACPI Power Management







































PC Health Monitoring

Voltage

  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED

  • UID/Remote UID

  • CPU / System Overheat LED
Temperature

  • Monitoring for CPU and chassis environment

  • CPU thermal trip support

  • Thermal Monitor 2 (TM2) support

  • PECI
FAN

  • 6x 4-pin fan headers (up to 6 fans)

  • Thermal control tachometer fan connectors

  • Fan speed control

  • 6 fans with tachometer status monitoring

  • Overheat LED indication
Other Features

  • WOL

  • UID

  • Node Manager Support

  • M.2 NGFF connector

  • Dual Cooling Zones

  • CPU thermal trip support for processor protection

  • Control of power-on for recovery from AC power loss

  • Chassis intrusion header

  • Chassis intrusion detection

  • ACPI power management



































Operating Environment

Operating Temperature Range

  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range

  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range

  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range

  • 5% - 95% (non-condensing)






















Parts List



































Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12STH-LN4F 1 X12STH-LN4F Motherboard
I/O Cables CBL-0044L •  2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00164-0N 1 STD I/O Shield for X12STH-LN4F with EMI Gasket










































Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12STH-LN4F 1 X12STH-LN4F Motherboard
I/O Cables CBL-0044L •  4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00164-0N 1 STD I/O Shield for X12STH-LN4F with EMI Gasket
QRG MNL-2367-QRG 1 Motherboard Quick Reference Guide







































Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9671H -- SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671V -- SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H -- SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor





EAN: 672042472819

Parametry produktu:

Hmotnost: 0.96 kg
EAN: 672042472819
EAN: 672042472819
Kód výrobce: MBD-X12STH-LN4F-O
