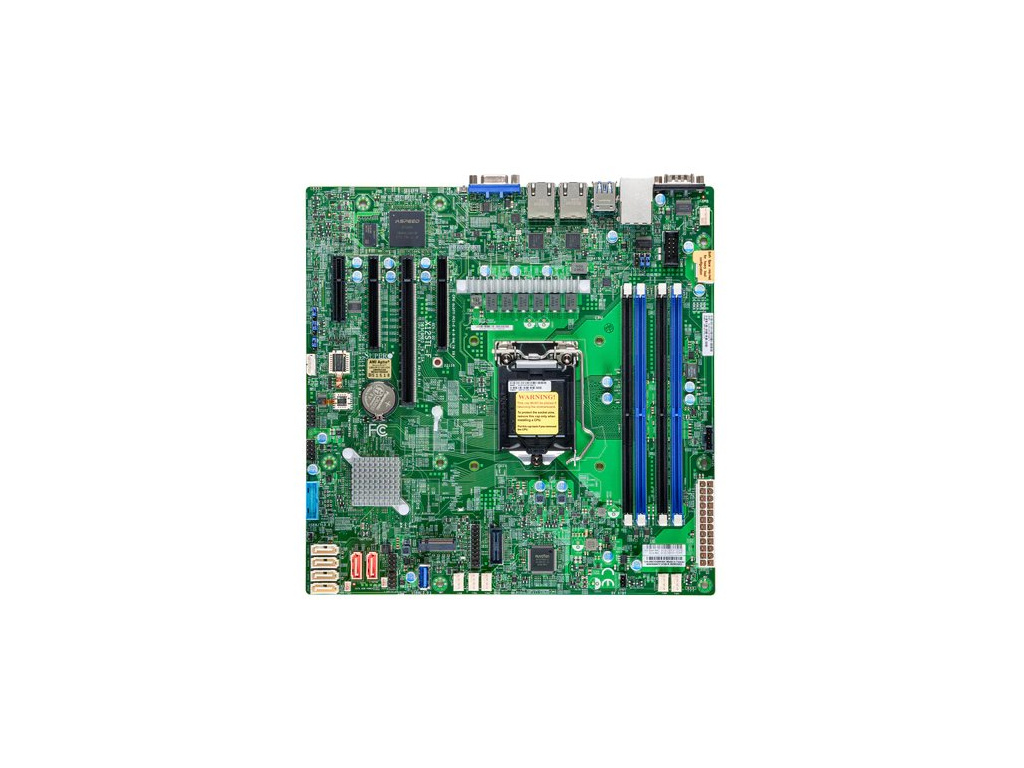

    SUPERMICRO MB LGA1200 (Xeon E-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 2x LAN, IPMI, MBD-X12STL-F-O

    Kód: ALIASBSRMBDX12STLFO
    Neohodnoceno
    Značka: SUPERMICRO
    SUPERMICRO MB LGA1200 (Xeon E-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 2x LAN, IPMI, MBD-X12STL-F-O
    8 379 Kč 6 925 Kč bez DPH
    Vyprodáno
    Možnosti doručení
    Položka byla vyprodána…

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 23 let na trhu s IT
    SKLAD
    Sklad
    20 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu







    Key Features

    1.

    2. Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

    3. Intel® C252

    4. Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots

    5. 1 PCI-E 4.0 x8,

      1 PCI-E 4.0 x8 (in x16 slot),

      1 PCI-E 4.0 x4 (in x8 slot)1 PCI-E 3.0 x2 (in x4 slot)

      M.2 Interface: 1 PCI-E 3.0 x4

      M.2 Form Factor: 2280/22110

      M.2 Key: M-Key

    6. Dual LAN with 1GbE with Intel® I210

    7. Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

    8. 1 VGA D-Sub Connector port

    9. 2 SuperDOM with built-in power

    10. 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)






    Specifications






























    Product SKUs

    MBD-X12STL-F

    • X12STL-F



























    Physical Stats

    Form Factor

    • microATX
    Dimension

    • 9.6" x 9.6" (24.38cm x 24.38cm)



























    Processor

    CPU

    • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor

    • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
    Core

    • Up to 8 cores







































    System Memory

    Memory Capacity

    • 4 DIMM slots

    • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
    Memory Type

    • 3200/2933/2666MHz SDRAM
    DIMM Sizes

    • 4GB, 8GB, 16GB, 32GB
    Memory Voltage

    • 1.2V
    Error Detection

    • Corrects single-bit errors







































    On-Board Devices

    Chipset

    • Intel® C252
    SATA

    • Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI

    • ASPEED AST2600 BMC
    Graphics

    • ASPEED AST2600 BMC
    Network Controllers

    • Dual LAN with 1GbE with Intel® I210















































    Input / Output

    SATA

    • 6 SATA3 (6Gbps) port(s)
    LAN

    • 2 1GbE LAN ports
    USB

    • 4 USB 2.0 port(s) (2 rear; 2 via header)

    • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
    Video Output

    • 1 VGA D-Sub Connector port(s)
    Serial Port

    • 2 COM Port(s) (1 header; 1 rear)
    DOM

    • 2 SuperDOM (Disk on Module) power connector
    TPM

    • 1 TPM Header





































    Expansion Slots

    PCI-E

    • 1 PCI-E 4.0 x8 (in x16 slot),

    • 1 PCI-E 4.0 x8,

    • 1 PCI-E 4.0 x4 (in x8 slot),

    • 1 PCI-E 3.0 x2 (in x4 slot)
    M.2

    • M.2 Interface: 1 PCI-E 3.0 x4

    • Form Factor: 2280/22110

    • Key: M-Key



























    System BIOS

    BIOS Type

    • 256MB UEFI
    BIOS Features

    • ACPI 6.0

    • SMBIOS 3.3

    • Plug and Play (PnP)

    • RTC (Real Time Clock) Wakeup

    • UEFI 2.7

    • USB Keyboard support

    • PCI 3.0































    Management

    Software

    System Management Software

    • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
    Power Configurations

    • Power-on mode for AC power recovery, ACPI Power Management







































    PC Health Monitoring

    Voltage

    • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
    LED

    • UID/Remote UID

    • BMC/IPMI Heartbeat LED
    Temperature

    • Monitoring for CPU and chassis environment

    • CPU thermal trip support

    • Thermal Monitor 2 (TM2) support

    • PECI
    FAN

    • 6x 4-pin fan headers (up to 6 fans)

    • Thermal control tachometer fan connectors

    • Fan speed control

    • 6 fans with tachometer status monitoring

    • Overheat LED indication
    Other Features

    • WOL

    • UID

    • M.2 NGFF connector

    • Dual Cooling Zones

    • CPU thermal trip support for processor protection

    • Control of power-on for recovery from AC power loss

    • Chassis intrusion detection

    • ACPI power management



































    Operating Environment

    Operating Temperature Range

    • 0°C - 50°C (32°F - 122°F)
    Non-Operating Temperature Range

    • -20°C - 60°C (-4°F - 140°F)
    Operating Relative Humidity Range

    • 10% - 85% (non-condensing)
    Non Operating Relative Humidity Range

    • 10% - 95% (non-condensing)






















    Parts List



































    Parts List (Bulk Package)
    Name Part Number Qty Description
    Motherboard MBD-X12STL-F 1 X12STL-F Motherboard
    I/O Cables CBL-0044L •  2 -
    I/O Shield MCP-260-00042-0N •  1 -










































    Parts List (Retail Package)
    Name Part Number Qty Description
    Motherboard MBD-X12STL-F 1 X12STL-F Motherboard
    I/O Cables CBL-0044L •  2 -
    I/O Shield MCP-260-00042-0N •  1 -
    QRG MNL-2353-QRG 1 -




    Server (Optimized for X12STL-F)


















    Server Name
    SYS-510T-ML
    SYS-530T-I





    EAN: 672042461608

    Doplňkové parametry

    Kategorie: Socket 1200
    Záruka: 3 roky
    Hmotnost: 0.99 kg
    EAN: 672042461608
    Kód výrobce: MBD-X12STL-F-O
