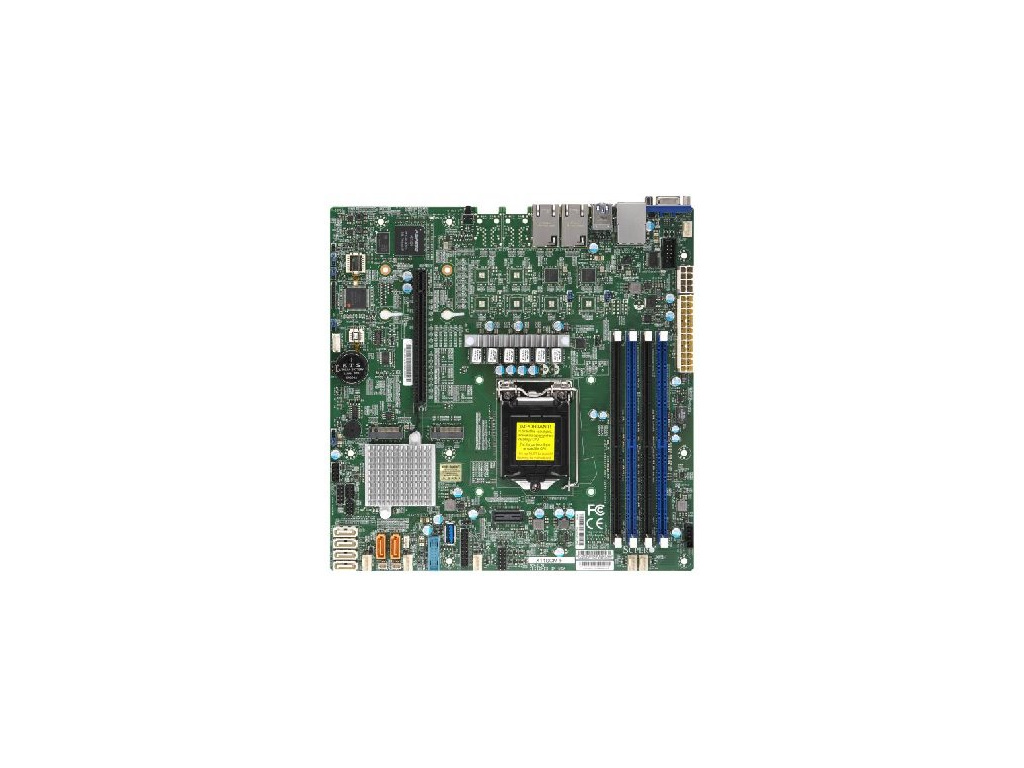

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C246, 4xDDR4, 6xSATA3, 2xM.2, 1xPCIe3.0 x16, VGA, 2x LAN, IPMI, bulk, MBD-X11SCM-F-B

Detailní popis produktu

Product SKUs

MBD-X11SCM-F X11SCM-F



Physical Stats

Form Factor microATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

Cores / Cache 8 cores, 16 threads

Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors



System Memory

Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

Memory Type 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C246

SATA Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT

Graphics ASPEED AST2500 BMC



Input / Output

SATA 6 SATA3 (6Gbps) port

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.1 Gen1 ports(2 rears, 2 via headers, 1 Type A)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector



System BIOS

BIOS Type UEFI 256Mb

BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0



Management

Software Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Power Configurations ACPI Power Management



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT

FAN 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

LED UID/Remote UID, CPU / System Overheat LED

Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCM-F 1 X11SCM-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00130-0N 1 STD I/O Shield for X11SCM-F with EMI Gasket



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCM-F 1 X11SCM-F Motherboard
QRG MNL-2075-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00130-0N 1 STD I/O Shield for X11SCM-F with EMI Gasket



Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00131-0N 1 1U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC813M, SC815, SC512, SC514, SC515, SC113)
1U I/O Shield MCP-260-00132-0B 1 1U I/O Shield for X11SCM-F with EMI Gasket (for standard 1U chassis: SC510, SC504, SC505)
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor



Chassis (Optimized for X11SCM-F)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC813MFTQC-350CB2
SC813MFTQC-R407CB
SC512F-350B1
SC515-350
SC515-R407
SC514-R407C
SC113MTQ-R400CB
SC825TQC-R740LPB
SC825TQC-R802LPB



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SCM-F)

Server Name

SYS-5019C-M
SYS-5019C-MR

EAN: 672042327614
