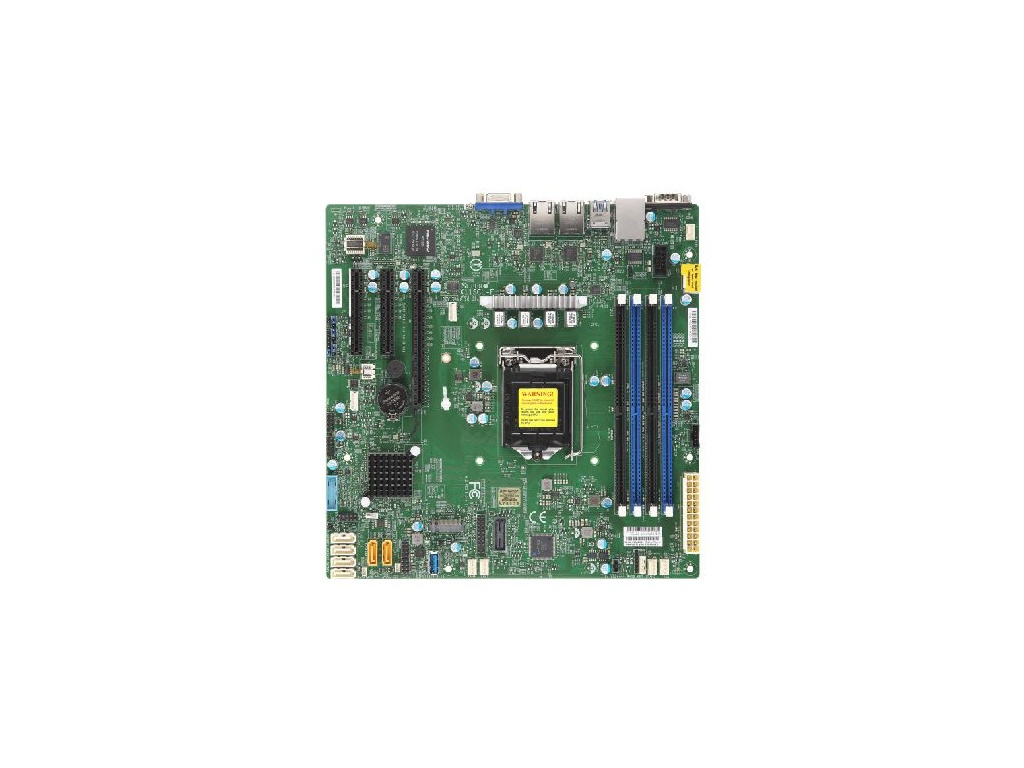

SUPERMICRO MB 1xLGA1151 (Xeon E3-21xx,i3), C242, 4xDDR4, 6xSATA3, M.2, 3xPCIe3.0 (x8, 2 x4), VGA, 2x LAN, IPMI, MBD-X11SCL-F-O

Detailní popis produktu

Product SKUs

MBD-X11SCL-F X11SCL-F



Physical Stats

Form Factor microATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP

Cores / Cache 6 cores, 12 threads

Note BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors



System Memory

Memory Capacity Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

Memory Type 2667/2400/2133MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C242

SATA Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Dual LAN with 1GbE with Intel® I210

Graphics ASPEED AST2500 BMC



Input / Output

USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)

Video Output 1 VGA port

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x8 (in x16 slot),
2 PCI-E 3.0 x4 (in x8 slot)

M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector



System BIOS

BIOS Type UEFI 256Mb

BIOS Features ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0



Management

Software IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT

Temperature Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment

LED CPU / System Overheat LED, UID/Remote UID

Other Features ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-F 1 X11SCL-F Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SCL-F 1 X11SCL-F Motherboard
QRG MNL-2063-QRG 1 Motherboard Quick Reference Guide
I/O Cables CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O Shield for X11SCL-F with EMI Gasket



Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor



Chassis (Optimized for X11SCL-F)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC813MFTQC-R407CB
SC514-R407C
SC515-R407
SC113MTQ-R400CB
SCLA25TQC-R609LP
SC731i-403B
SC731i-404B



= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU



Server (Optimized for X11SCL-F)

Server Name

SYS-5039C-I

EAN: 672042327652
