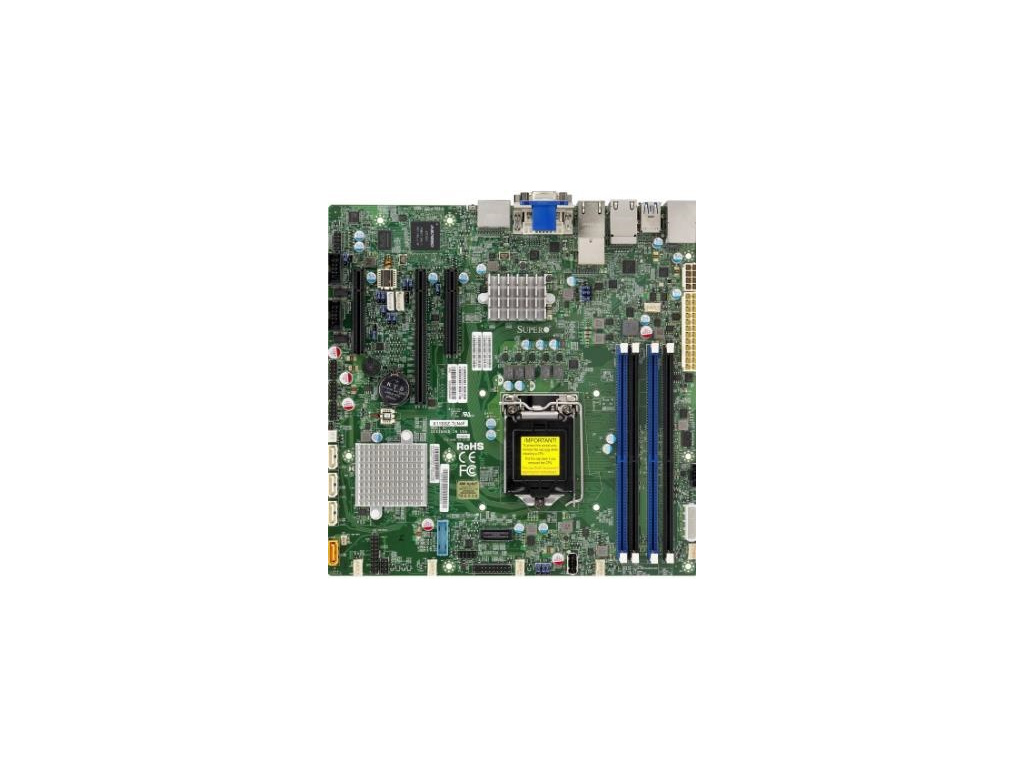

SUPERMICRO MB 1xLGA1151 (i7 do 1U), iC236,DDR4,4xSATA3,PCIe 3.0 (1 x16, 2 x4),HDMI,DP,DVI,Audio,12v DC, IPMI, MBD-X11SSZ-F-O

Detailní popis produktu

Product SKUs

MBD-X11SSZ-F X11SSZ-F



Physical Stats

Form Factor Micro-ATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU Intel® 6th Generation Core? i3 series
Intel® 6th Generation Core? i5 series
Intel® 6th Generation Core? i7 series
Intel® 7th Generation Core? i3 series
Intel® 7th Generation Core? i5 series
Intel® 7th Generation Core? i7 series
Intel® Celeron®
Intel® Pentium®
Intel® Xeon® processor E3-1200 v5 series
Intel® Xeon® Processor E3-1200 v6 series
Socket H4 (LGA 1151) supported; CPU TDP support Up to 91W

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? Processors and Intel® Xeon® Processor E3-1200 v6 series



System Memory

Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type 2400/2133/1866MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C236

SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel RSTe

Network Controllers Single Intel® PHY I219LM LAN controller
Single Intel® Ethernet Controller I210-AT


Audio ALC 888S HD Audio

Graphics Intel® HD Graphics, Aspeed AST2400 BMC
3 Independent Displays, VGA is from BMC A CPU with processor graphics is required for Intel HD Graphics (DVI/DP). Example: E3-1275 v5



Input / Output

USB 9 USB 2.0 ports (2 rear, 6 via header(s), 1 Type A)
4 USB 3.0 ports (2 rear, 2 via header(s))


Video Output 2 DP (DisplayPort) port(s), 1 DVI - I port(s), 1 VGA port(s)

Serial Port / Header 2 COM Ports (2 header(s))


TPM 1 TPM 2.0 Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16 (in x16 slot)
2 PCI-E 3.0 x4 (in x8 slot)




System BIOS

BIOS Type AMI UEFI

BIOS Features Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
Hardware BIOS Virus protection
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1



Management

Software AMT
IPMI2.0
KVM with dedicated LAN
NMI
SuperDoctor® 5
vPro
Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT

FAN 6x 4-pin fan headers (up to 6 fans)
6 fans with tachometer status monitoring
Fan speed control
Overheat LED indication
Pulse Width Modulated (PWM) fan connectors
PWM fan speed control
System level control
Thermal control tachometer fan connectors

Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED CPU / System Overheat LED
UID/Remote UID

Other Features 8-pin 12v DC power connector
ACPI power management
ATX Power connector
Chassis intrusion header
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
Intel Smart Response Technology
RoHS
System level control
UID
WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)



EAN: 672042195664
