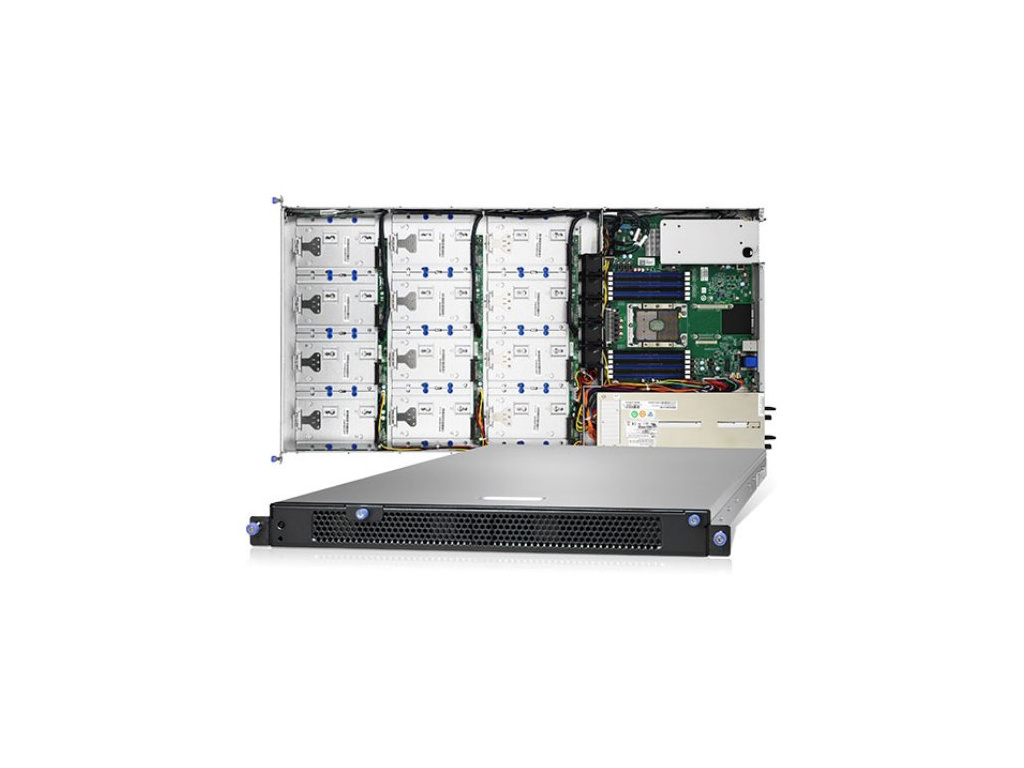

Tyan Thunder SX GT86C-B5630. 1U, 2x LGA3647 SKL CPU, 12 x DIMM slots, 1 x PCI-E Gen3 x16 slot (HH/ HL), 12x 3.5" / 2.5", B5630G86CV12R

Detailní popis produktu

TYAN GT86CB5630 (B5630G86CV12) (BTO) Specifications


System Form Factor 1U Rackmount
Chassis Model GT86C
Dimension (D x W x H) 33.86" x 17.32" x 1.72" (860 x 440 x 43.6mm)
Motherboard Name S5630GMR
Gross Weight 20 kg (44 lbs)
Net weight 10.5kg (23.5 lbs)
Front Panel Buttons (1) PWR / (1) RST
Internal Drive Bay Q'ty / Type (12) 3.5"/2.5" Easy-Swap SSD/HDD + (2) 2.5" fixed SSD
HDD Backplane Support SATA 6Gb/s
Supported HDD Interface (14) SATA 6Gb/s
System Cooling Configuration FAN (5) 4cm fans
Power Supply Type PSU
Input Range AC 100-127V/8A / AC 200-240V/4A
Frequency 50-60 Hz
Output Watts 500 Watts
Efficiency PFC / 80 plus gold
Redundancy N/A
Processor Q'ty / Socket Type (1) LGA3647
Supported CPU Series Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 165W
System Bus 1066/ 800/ 533 MHz
Chipset PCH Intel C621
Memory Supported DIMM Qty (12) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels
Memory voltage 1.2V
Notification DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail.
Expansion Slots PCI-E (1) PCI-E Gen3 x16 slot (HH / HL)
Pre-installed TYAN Riser Card
(PCI-E Gen3) (1) M2091 riser card for (1) PCI-E Gen3 x16 slot (left) (*Need with tall bracket)
Others (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B)
Physical Dimension
Abbreviation HH/HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm)
LAN Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211E
Storage SATA Connector (2) Mini-SAS HD (8 ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-DOM / (1) Mini-SAS HD (4 ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports USB (2) USB3.0 ports (@ rear) / (1) USB3.0 TYPE-A
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (1) dedicated GbE for IPMI
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5
Operating System OS supported list Please refer to our AVL support lists. / SuSE Linux/ SLES / VMware ESX / Windows Server 2008, 2008 R2 / Red Hat Enterprise Linux Server
Regulation FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C / 5%~95%, non-condensing
RoHS RoHS 6/6 Compliant Yes
Package Contains Barebone (1) GT86C-B5630 Barebone
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD

EAN: 635872044823
