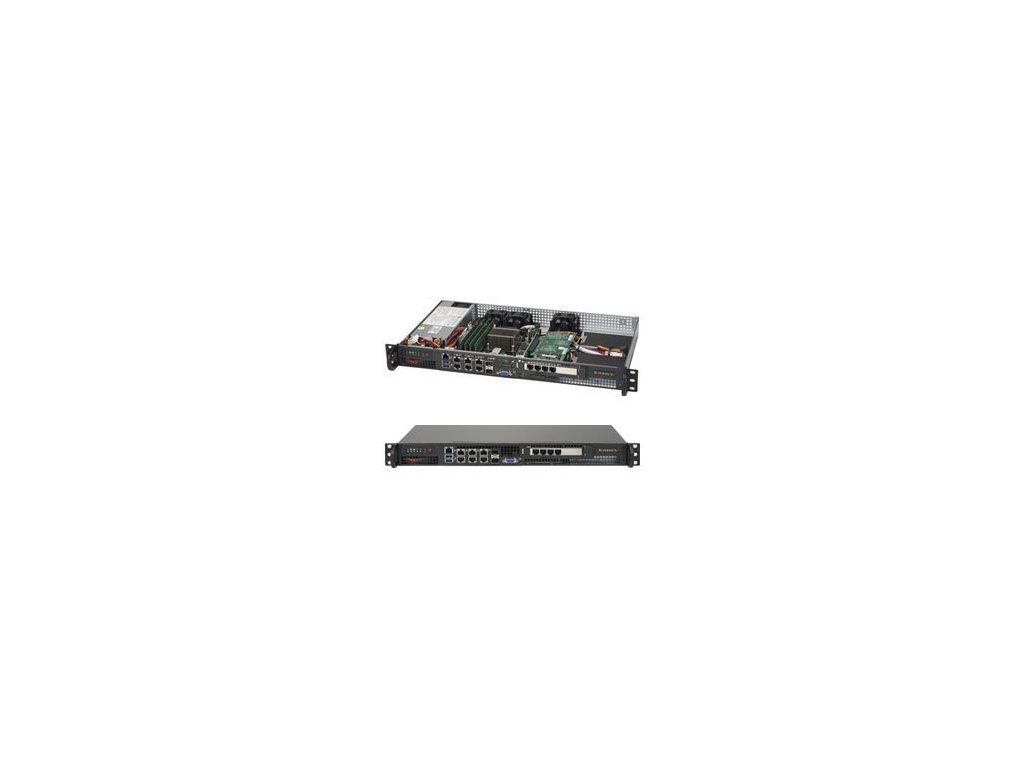

SUPERMICRO mini1U server 1x FCBGA1667 Xeon D-1518, 4x DDR4 ECC, 200W, M.2, 2x 10Gb SFP+, 6x 1Gb LAN, IPMI, SYS-5018D-FN8T

Detailní popis produktu

Product SKUs

SYS-5018D-FN8T SuperServer 5018D-FN8T (Black)



Motherboard


Super X10SDV-TP8F


Processor/Cache

CPU Intel® Xeon® processor D-1518,
2.2GHz; CPU TDP support 35W
FCBGA 1667

Cores / Cache 4 Cores, 8 Threads / 6MB



System Memory

Memory Capacity 4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM

Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

DIMM Sizes 32GB, 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors
Detects double-bit errors
(using ECC memory)



On-Board Devices

SATA SoC controller for SATA3 (6Gbps) ports

Network Controllers Dual 10G SFP+ from D-1500 SoC
Quad 1GbE with Intel I350-AM4
Dual 1GbE with Intel I210

IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Dedicated RJ45 IPMI LAN port

Graphics BMC integrated ASPEED AST2400



Input / Output

SATA 4x SATA3 (6Gbps) ports

LAN 2x 10G SFP+ ports
6x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port

USB 2x USB 3.0 ports (front)

DOM 1x SATA DOM (Disk on Module) power connector

VGA 1x VGA Port

Others TPM 2.0 header







Chassis

Form Factor 1U Rackmount

Model CSE-505-203B



Dimensions and Weight

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 9.8" (249mm)

Weight Net Weight: 8 lbs (3.63 kg)
Gross Weight: 12 lbs (5.44 kg)

Available Colors Black



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Information LED (temp., status)



Expansion Slots

PCI-E 1x PCIe 3.0 x8 slots
M.2 PCIe 3.0 x4, M Key 2242/2280/22110
Mini-PCIe with mSATA support



Drive Bays

HDD 1x 3.5" or 4x 2.5" fixed drive bays with bracket



System Cooling

Fans Passive Heatsink, 40mm chassis fan



Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage 100 - 240V, 50-60Hz, 2.6 Amp Max

+5V 8.0 Amp (max.)

+5V standby 2.0 Amp (max.)

+12V 16 Amp (max.)

-12V 0.5 Amp (max.)

+3.3V 8.0 Amp (max.)

Certification Gold Level Certified
Gold Certified



System BIOS

BIOS Type 128Mb SPI Flash with AMI BIOS

BIOS Features PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 40°C (50°F to 104°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)



EAN: 672042222322
