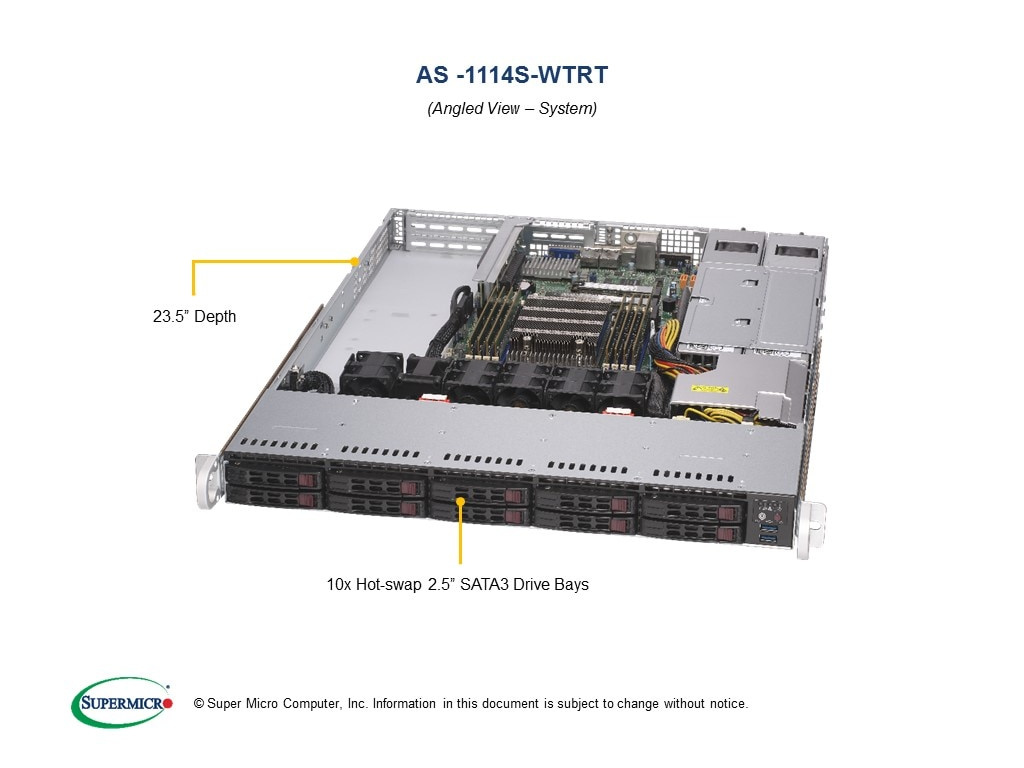

SUPERMICRO A+ Server 1U 1x SP3, 8x DDR4, 10x 2,5" (2xNVMe opt.), 2x500W(plat), 2x10GbE, IPMI, AS-1114S-WTRT
Kód: ALIASBSRAS1114SWTRT
Detailní popis produktu
Product SKUs AS -1114S-WTRT A+ Server 1114S-WTRT (Black) Motherboard Super H12SSW-NT Processor/Cache CPU Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) Socket SP3 Support CPU TDP up to 280W Cores Up to 64 Cores System Memory Memory Capacity 8 DIMM slots Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs On-Board Devices Chipset System on Chip SATA SATA3 (6Gbps) Network Controllers Dual 10GBase-T LAN with via Broadcom BCM57416 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video ASPEED AST2500 BMC Input / Output SATA 2 SATA3 (6 Gbps) ports LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 7 USB 3.0 ports (4 rear, 2 front, 1 Type A) Video 1 VGA port DOM 2 SuperDOM (Disk on Module) ports System BIOS BIOS Type AMI 32Mb SPI Flash ROM Management Software Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN Power Configurations ACPI / APM Power Management PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 1U Rackmount Model CSE-116TS-R504WBP Dimensions and Weight Width 17.2" (437mm) Height 1.7" (43mm) Depth 23.5" (597mm) Gross Weight 46 lbs (20.9kg) Available Colors Black Front Panel Buttons Power On/Off button UID button LEDs Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED Expansion Slots PCI-Express 2 PCI-E 4.0 x16 (FHHL) slots 1 PCI-E 4.0 x16 (LP) slot 2 PCI-E?/?SATA 3.0 x2 NVMe M.2 slots Drive Bays Hot-swap 10 Hot-swap 2.5" SATA3 drive bays Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices Backplane SAS/SATA HDD Backplane System Cooling Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC Power Supply 500W Redundant Power Supplies with PMBus Total Output Power 500W Dimension (W x H x L) 54.5 x 40.25 x 320 mm Input 100-240Vac, 50-60Hz, 6.1-2.6A +12V Max: 42A / Min: 0.5A +5Vsb Max: 4A / Min: 0A Output Type Gold Finger Connector Mating with Molex 45984-4343 With Power Distributor +5V: 25A +3.3V: 12A -12V: 0.6A Certification Platinum Level Certified Platinum Certified [ Test Report ] Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
| System | |
| System Type: | Server |
| System Form Factor: | 1U Rackmount |
| Processor | |
| Supported CPUs: | EPYC 7002 Series |
| CPU Socket Standard: | Socket SP3 |
| CPU Maximum Quantity Supports: | 1 |
| Quantity of Mainboards Supported: | 1 |
| Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 3200MHz(PC4-25600) |
| Provides Error Checking Method: | ECC |
| Maximum Installable System Memory Storage Capacity: | 2 TB |
| Memory Slot Total Quantity: | 8 |
| Memory Features: | Registered Load Reduced 3DS Load Reduced |
| Controller | |
| Integrated: | Storage Controller: SATA III-600 (2) Storage Controller: PCIe 3.0 x2/SATA (2 x M.2) |
| Plug-in-card: | Remote Management Controller: Gigabit Ethernet (RJ-45) |
| System Fans | |
| Fans Quantity: | 4 x 40mm |
| Video Output | |
| Video Controller Form Factor: | Integrated |
| Video Chipset: | Aspeed AST2500 |
| Networking Specifications | |
| Networking Form Factor: | Plug-in-card |
| LAN Chipset: | Broadcom BCM57416 |
| LAN: | 10G Ethernet |
| Bay Provided | |
| Number of 2.5-inch Hot-Swap Drive Bays: | 10 |
| Number of Slim External Drive Bays: | 1 |
| Slot Provided | |
| PCI Express 4.0 x16: | 2 |
| PCI Express 3.0 x16: | 1 |
| Interface Provided | |
| LAN: | 2 (RJ-45) |
| VGA: | 1 (15-pin D-sub) |
| Management Port: | 1 (RJ-45) |
| USB 3.0: | 6 (USB 3.0 (type A)) |
| Power | |
| Power Device Type: | Power Supply - redundant |
| Power Device Location: | Internal |
| Input Voltage: | AC 100-240 V |
| Input Frequency: | 50/60 Hz |
| Power Device Installed Quantity: | 2; Redundant (1+1) |
| Power Device Maximum Quantity Supports: | 2 |
| Maximum Output Power: | 500 W |
| Miscellaneous | |
| External Colour: | Black |
| Mounting Capability: | Rackmount |
| Standard Rack Height: | 1 U |
| Environment | |
| Maximum Operating Ambient Temperature: | 35 °C |
| Maximum Operating Humidity: | 90 % |
| Minimum Operating Ambient Temperature: | 10 °C |
| Minimum Operating Humidity: | 8 % |
| Dimensions & Weight Device | |
| Height (mm): | 43 mm |
| Depth (mm): | 597 mm |
| Width (mm): | 437 mm |
EAN: 672042367023
Doplňkové parametry
| Kategorie: | Servery |
|---|---|
| Záruka: | 3 roky |
| Hmotnost: | 18 kg |
| EAN: | 672042367023 |
| Kód výrobce: | AS-1114S-WTRT |
