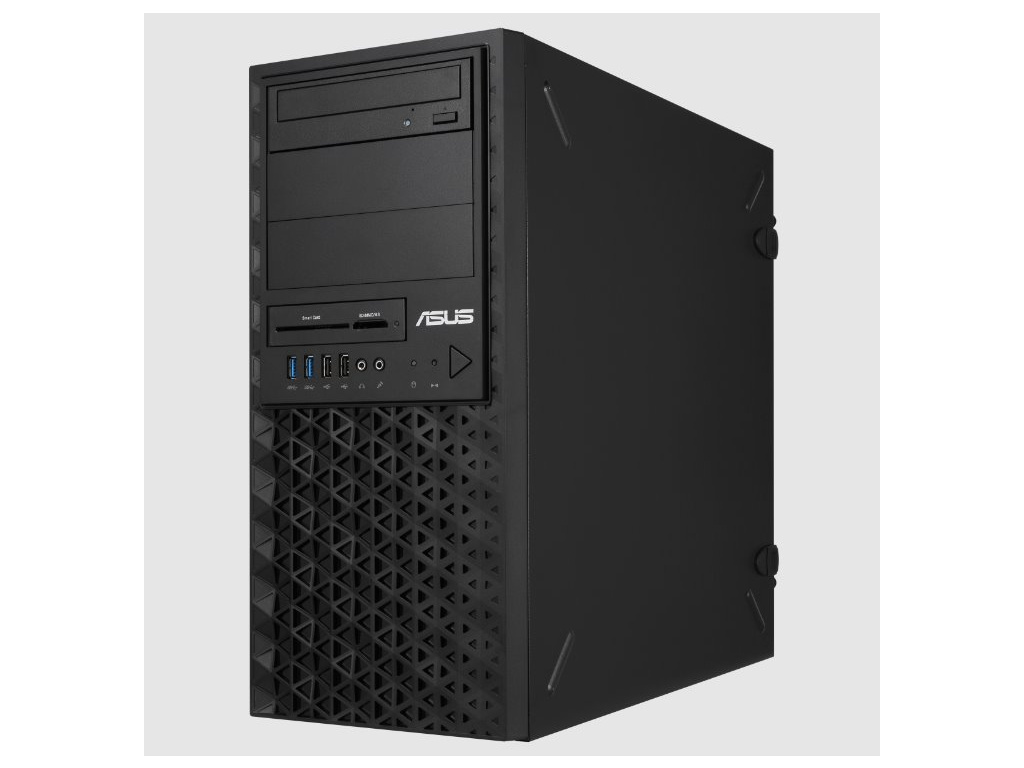

ASUS TS100 TWR server s1200, C256, 4x DDR4e, 8x SATA, 4xPCIe, 300Wb, 2x LAN, 90SF02N1-M000Z0

Detailní popis produktu

• Powered by the Intel® Xeon® E platform


• 95W CPU and up to 128GB memory support (4 DIMMs)


• High scalability with two PCIe Gen4 slots and two PCIe Gen3 slots


• Flexible storage design with internal 5.25" to 3.5"/2.5" drive cage (Optional)


• Dual Intel® Gigabit Ethernet with teaming support


• Supports the latest 10Gb/s USB 3.2 Gen2 onboard for high transfer speed


• Complete server management with ASUS Control Center


• Easily serviceable design


• Design for SMB, Web/Print/File/Mail Server, entry storage applications


• Onboard audio for workstation applications

•




  Processor / System Bus









  1 x Socket LGA1200





  Intel® Xeon® processor E-2300 family(95W)





  Intel® Pentium Processors





  *Refer to support page for more information







•




  Core Logic






  Intel® C256 Chipset




•




  Memory









  Total Slots : 4 (2-channel)





  Capacity : Maximum up to 128GB UDIMM





  Memory Type :





  DDR4 3200  ECC UDIMM





  Memory Size :





  32GB, 16GB, 8GB





  * Refer to support page for more information







•




  Expansion Slots









  Total:4











  2 x PCI-E x4 slot, x8 Gen3 Link





  1 x PCI-E x8 slot, x8 Gen4 Link





  1 x PCI-E x16 slot, x16 Gen4 Link





  (Auto switch to x8 link if slot 4 is occupied )













•




  Storage









  SATA Controller :





  Intel® C256 Chipset





  8 x SATA3 6Gb/s ports













•




  Drive Bays









  3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays





  1 x Internal 2.5" drive bay




















  2 x M.2 (Up to 22110)





  Gen4 x4 Link and Gen3 x2 Link





  gray SATA port will disable when M.2 is SATA signal










•




  Auxiliary Storage FDD/CD/DVD









  2 x 5.25" media bays





  (Options: No ODD/DVD-RW)







•




  Networking






  2 x Intel® I210AT + 1 x Mgmt LAN




•




  Graphic






  Please find the latest GPU support from https://servers.asus.com/support/gpu




•




  Front I/O Ports









  2 x USB 3.2 Gen1





  2 x USB 2.0





  1 x Headphone port





  1 x Microphone port







•




  Rear I/O Ports









  2 x USB 3.2 Gen2 ports





  2 x USB 3.2 Gen1 ports





  1 x VGA port (support by ASMB10)





  1 x HDMI port from CPU (useable only with iGPU)





  2 x LAN Ports





  1 x PS/2 Keyboard/ Mouse Port







•




  Switch/LED









  Front:





    1 x Power Switch/LED





    1 x Reset Switch





    1 x HDD Access LED







•




  OS Support






  Please find the latest OS support from https://servers.asus.com/support/os




•




  Management Solution






  Bundle ASMB10-iKVM for KVM-over-IP

  ASUS Control Center Enterprise (Optional)




•




  Regulatory Compliance






  BSMI, CE, FCC(Class B)




•




  Dimensions









  423mm x 190mm x 435mm





  16.65" x 7.48" x 17.1"







•




  Weight









  Net Weight : 11.56 KG





  Gross Weight : 14.68 KG







•




  Power Supply









  300W 80PLUS Single Power Supply, Bronze





  Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I





  550W/750W 80PLUS Single Power Supply, Gold





  Rating: 100-240Vac,50-60 Hz,9-4.5A







•




  Environment









  Operation temperature: 10? ~ 35?





  Non operation temperature: -40? ~ 70?





  Non operation humidity: 20% ~ 90% ( Non condensing)







•




  Optional Items









  Smart Card Reader





  Anti-Virus CD pack





  Keyboard and mouse





  DVD-RW


  Print port cable

  Com port cable
