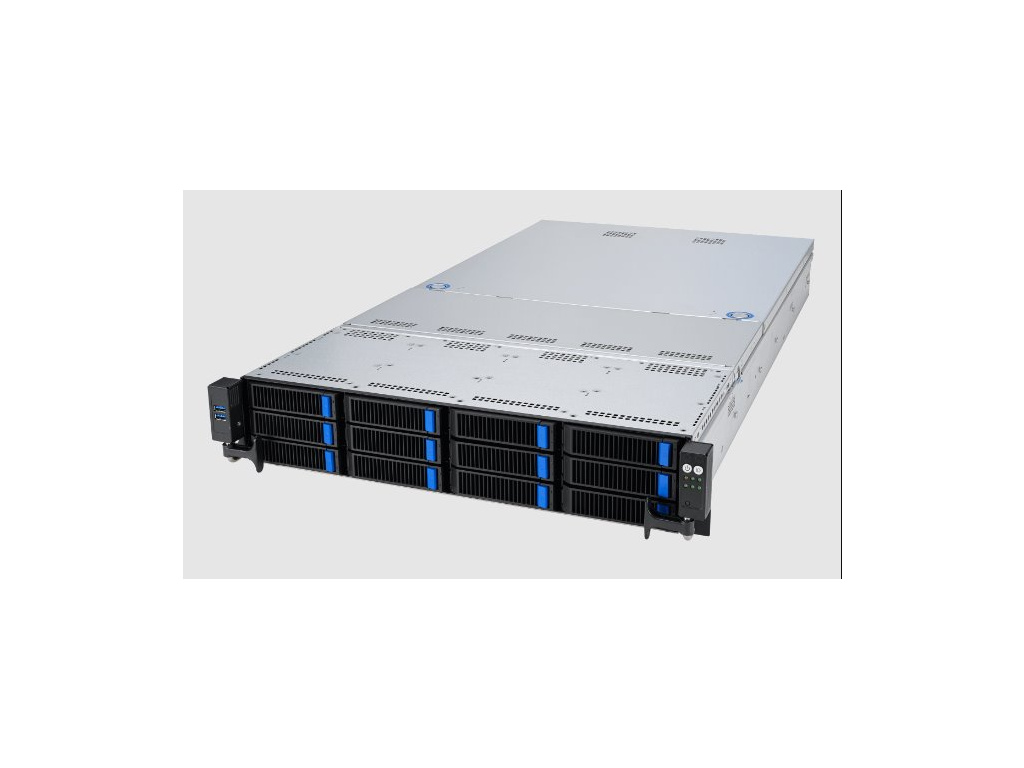

    ASUS 2U server SP5 24x DDR5 4800 12x 3.5/2.5 NVMe/SATA +2x2,5 SATA, 2x i350 1Gb, 2x1600Wt, 90SF02G1-M000P0

    Kód: ALIASBRS520AE12RS12U12NGPUOCPFAN1600
    Neohodnoceno
    Značka: Asus
    ASUS 2U server SP5 24x DDR5 4800 12x 3.5/2.5 NVMe/SATA +2x2,5 SATA, 2x i350 1Gb, 2x1600Wt, 90SF02G1-M000P0
    91 659 Kč 75 751 Kč bez DPH
    Skladem online (2 ks)
    Můžeme doručit do:
    25.11.2024
    Možnosti doručení

    Detailní informace

    Ověřený obchod
    Ověřený obchod
    Více než 23 let na trhu s IT
    SKLAD
    Sklad
    20 000 produktů připraveno skladem
    Výdejní místa KUPSIONLINE.CZ
    Široká síť výdejních míst
    Více než 7 000 výdejních míst v ČR
    Doprava zdarma
    Doprava zdarma
    Při nákupu nad 10tis. Kč doprava zdarma

    Detailní popis produktu































































    CPU

    Platform    		 CPU

    Scoket    		 CPU # U Max

    CPU TDP    		 Chipset Memory

    Type    		 Memory

    #    		 Storage

    #    		 Storage

    Bay    		 Storage

    Type    		 NVMe grade

    (option)    		 Storage

    Hotswap    		 SAS

    Controller    		 M.2 Other

    Storage    		 ODD O/B NIC GPU

    Sport    		 PCIe

    #    		 PCIe slots OCP PSU

    #    		 Railkit PSU

    Type    		 Heatsink

    Type    		 Depth

    (mm)
    EPYC

    Genoa    		 LGA6096 1 2U 400W SOC DDR5 4800/4400 24 12+2 3.5"/2.5" SATA/SAS*/12xNVMe - Y Option 2 Rear bay: 2 x 2.5” SATA 0 Intel i350 1Gb x2 2 Double Deck

    or

    4 Single Deck    		 5+1 2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL

    1 x PCIe Gen5 x8, LP

    1 x OCP Mezz. 3.0 Slot (x16 Link)    		 3.0X1 1+1 1000mm

    Ball-bearing

    Full ext.    		 1600W 80+ Titanium 2U STD HS 840 x 449 x 88.1







    • Processor / System Bus




      1 x Socket SP5 (LGA 6096)

      AMD EPYC™ 9004 Series Processors (up to 400W)




    • Memory




      24 x DIMM slots

      DDR5 4800/4400 RDIMM/ 3DS RDIMM

      Maximum 6144GB

      *2DPC support depends on AMD schedule

      * Refer to support page for more information




    • Expansion Slots




      Up to 5 PCIe Gen5 slots + 1 OCP3.0

      2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL

      1 x PCIe Gen5 x8, LP

      1 x OCP Mezz. 3.0 Slot ( (PCIe Gen5 x16)




    • Storage




      Storage Controller :

      CPU Integrated



      Optional kits Controller :

      Broadcom Mega RAID 9560-16i

      ASUS PIKE II 3008-8i 8-port SAS 12G HBA card




    • Drive Bays




      Front bays:

      12 x 3.5” hot-swap drive bays

      Support up to 12NVMe/SAS/SATA



      Rear bays:

      2 x 2.5” SATA hot-swap drive bays



      *SAS support only from optional SAS HBA/RAID

      card



      2 x M.2 connectors




    • Networking




      1 x Dual Port Intel I350-AM2 GbE LAN Controller

      1 x Management Port




    • Graphic




      Up to 4 single-slot or 2 double-slot GPU cards




    • Front I/O Ports




      2 x USB 3.2 Gen1 ports

      1 x VGA port




    • Rear I/O Ports




      2 x USB 3.2 Gen1 ports

      1 x VGA port

      1 x Management port

      2 x 1GbE LAN ports




    • Switch/LED




      Front:

      1 x Power Button/LED

      1 x Reset Switch

      1 x Location Button/LED

      1 x HDD Access LED

      1 x Message LED

      LAN 1-2 LED

      Rear:

      1 x Port80 LED (Q-Code)

      1 x Power Button/LED

      1 x Location Button/LED

      1 x Message LED




    • OS Support




      Please find the latest OS support from https://servers.asus.com/support/os




    • Management Solution




      ASUS Control Center

      ASUS ASMB11-iKVM (on-board)




    • Regulatory Compliance




      CB, CE, RCM, FCC(Class A)




    • Dimensions




      840mm x 449mm x 88.1mm (2U)

      33.07” x 17.68” x 3.47




    • Form Factor




      2U




    • Weight




      (approximate)

      Net Weight: 17.95 kg

      Gross Weight: 25.14 kg




    • Power Supply




      1+1 Redundant 1600W 80 PLUS Titanium

      Power Supply

      1+1 Redundant 1600W/1200W 80 PLUS Platinum

      Power Supply




    • Environment




      Operating temperature: 10°C – 35°C

      Non operating temperature: -40°C – 70°C

      Non operating humidity: 20% – 90% (Non condensing)



      Note

      Operating Temperature based on configurations


















    • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

    • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

    • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.

    • PCB color and bundled software versions are subject to change without notice.

    • Brand and product names mentioned are trademarks of their respective companies.

    • The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.




    • The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.

    • * Optional means “built for order”.





    EAN: 4711387022986

    Doplňkové parametry

    Kategorie: Servery
    Záruka: 3 roky
    Hmotnost: 33 kg
    EAN: 4711387022986
    Kód výrobce: 90SF02G1-M000P0
