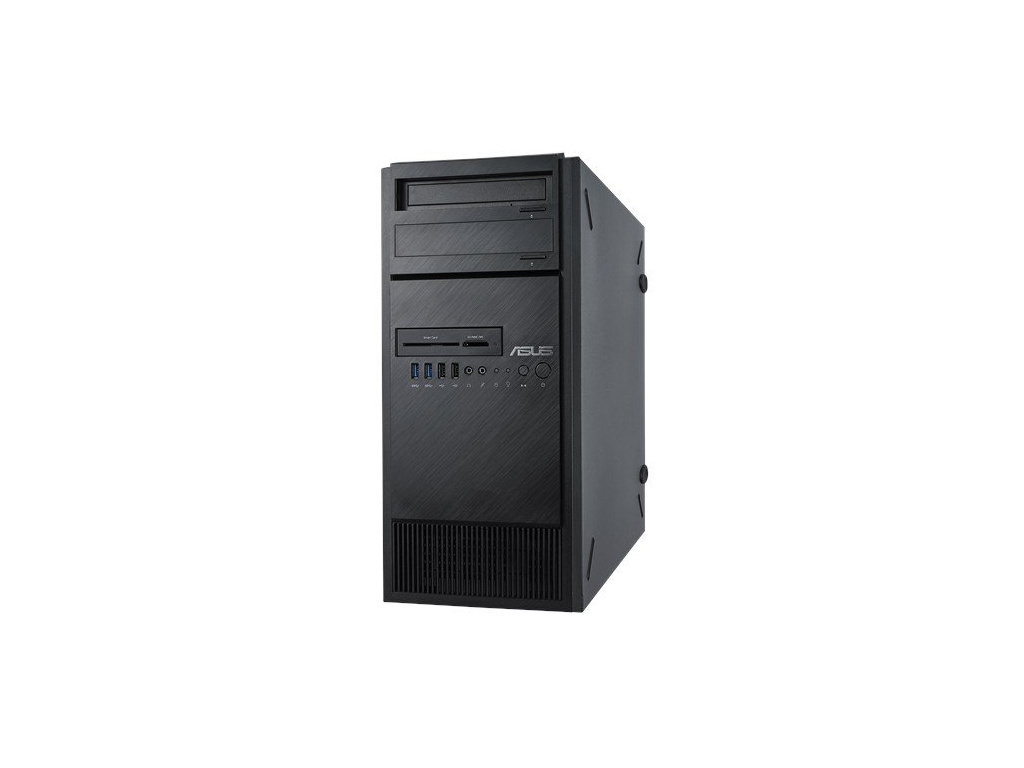

ASUS "E500 G5/DVR/CEEUK/EN/WOC/WOM/WOS/WOR/WOIIntel 1 x Socket LGA1151, C246, 4DIMM, 6PCIe, 2M.2, 3x3.5""+1x2.5"" Inter, 90SF00Q1-M00410

Detailní popis produktu

•








  E500 G5/DVR/CEEUK/EN/WOC/WOM/WOS/WOR/WOI Intel 1 x Socket LGA1151, C246, 4DIMM, 6PCIe, 2M.2, 3x3.5"+1x2.5" Internal Storbay, 2x5.25"mediabay, i210AT+i219LM LAN, 1x500W 80+ Gold PSU, Multi-VGA output support: DVI-D/HDMI/DisplayPort/VGA





• Operating System

  Windows 10 Pro for Workstations

  Windows 10 Pro - ASUS recommends Windows 10 Pro.

  Windows 10 Home - ASUS recommends Windows 10 Pro.

  OS may vary by model. Please check with your ASUS vendor prior to purchase.




• Processor / System Bus

  1 x Socket LGA1151

  Intel^® Xeon^® processor E-2100 family

  Intel^® Pentium™ processors

  Intel^® Celeron™ processors

  Intel^® Core™ i7/i5/i3 processors




• Core Logic

  Intel® C246 Chipset




• Memory

  Total Slots : 4 (2-channel)

  Capacity : Maximum up to 64GB UDIMM

  Memory Type :

  Dual Channel DDR4 2666/2400 /2133 UDIMM non ECC and with ECC

  Memory Size :

  16GB, 8GB

  * Refer to support page for more information




• Expansion Slots

  Total: 6

  PCIEX1_1: PCI-E x1 slot, x1 Gen3 Link, from PCH

  PCIEX16_1: PCI-E x16 slot, x16/ x8 Gen3 Link, from CPU

  PCIEX16_2: PCI-E x16 slot, x8 Gen3 Link, switched from PCIEX16_1, from CPU

  PCIEX1_2: PCI-E x1 slot, x1 Gen3 Link, from PCH

  PCIEX16_3: PCI-E x16 slot, x4 Gen3 Link, from PCH

  PCIEX16_4: PCI-E x16 slot, x4 Gen3 Link, from PCH, shared with 4 SATA




• Storage

  SATA Controller :

  Intel® C246 Chipset

  8 x SATA3 6Gb/s ports

  Intel® Rapid Storage Technology(RST) (For Linux/Windows)

  (Support Software RAID )

  SATA Controller :

  1 x M.2 connector(2242/2260/2280/22110) PCIe mode

  1 x M.2 connector (2280/2260/2242)




• Drive Bays

  1x internal 2.5” drive bay

  3x internal 3.5” drive bay (or 3x internal 2.5” drive bay: optional cage required)

  2x internal 2.5”/3.5” drive bay (optional cage required)




• Auxiliary Storage FDD/CD/DVD

  2 x 5.25" media bays

  (Options: No ODD/DVD-RW)




• Networking

  1 x Intel® I210AT

  1 x i219-LM




• Front I/O Ports

  2 x USB 3.1 Gen1

  2 x USB 2.0

  1 x Headphone port

  1 x Microphone port




• Rear I/O Ports

  2 x USB 3.1 Gen2 ports (1 port at Type A, 1 port at Type C)

  4 x USB 3.1 Gen1 ports

  1 x HDMI

  1 x DisplayPort

  1 x DVI-D

  1 x VGA

  2 x RJ-45 ports

  1 x 8-channel Audio I/O ports (5 + 1 Audio jacks)




• OS Support

  Windows® 10 64-bit



  *Subject to change without any notice

  Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html




• Regulatory Compliance

  BSMI, CCC, CE, FCC(Class B)




• Dimensions

  423mm x 190mm x 435mm




• Form Factor

  Tower




• Weight

  Net Weight : 12.65 KG

  Gross Weight : 14.51 KG




• Power Supply

  300W 80PLUS Single Power Supply, Bronze

  (100-127/220-240V, 6/3A, 60-50Hz, Class I)

  500W 80PLUS Single Power Supply, Gold

  (100-240V, 7-3.5A, 50/60Hz, Class I)

  700W 80PLUS Single Power Supply, Gold

  (100-240V, 10-5A, 50/60Hz, Class I)




• Environment

  Operation temperature: 10? ~ 35?

  Non operation temperature: -40? ~ 70?

  Non operation humidity: 20% ~ 90% ( Non condensing)




• Accessory Box

  1 x E500 G5 Support CD

  1 x Windows 10 Professional 32/64bit Recovery DVD (for OS bundled SKU)

  1 x AC Power Cable

  1 x COM port Cable

  1 x VGA Support CD




• Optional Items

  Smart Card Reader

  Optional Anti-Virus CD pack

  OS

  DVD-RW/DVD-ROM
