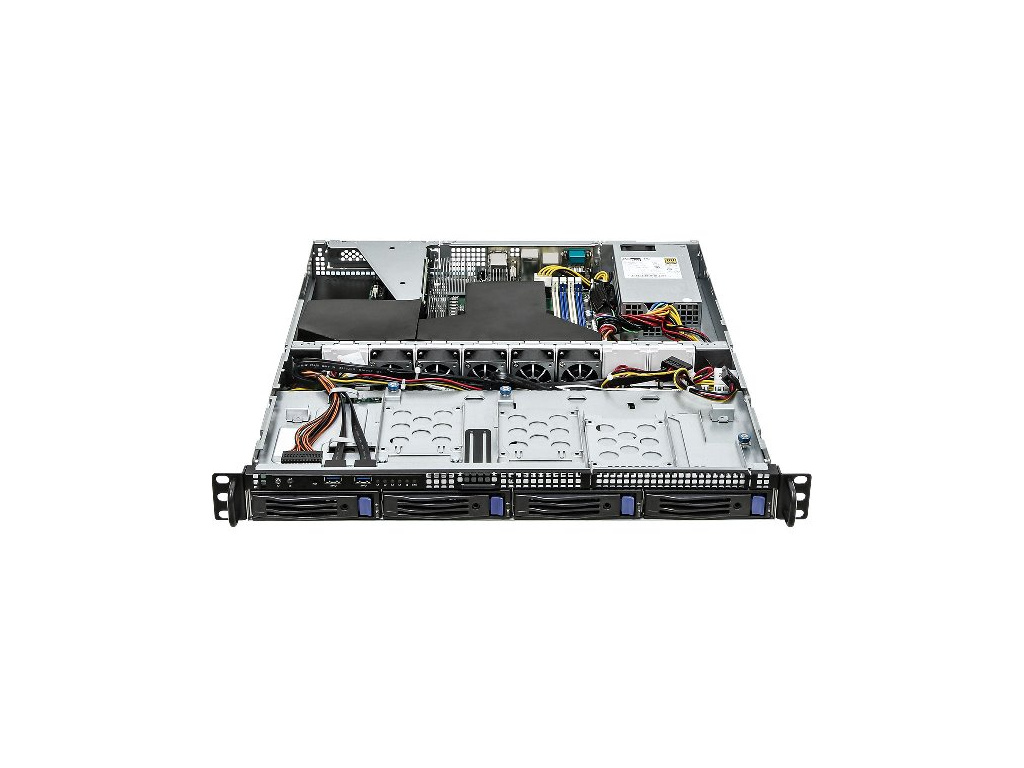

ASRock Rack 1U server AM5, B650, 4x DDR5 ECC, 4x SATA 3,5HS, M.2, PCIe4 x16, 2x 10Gb + 2x 1Gb LAN, 400W, IPMI, 1U4LW-B650/2L2T
Kód: ALIASBAG1U4LWB6502L2T
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
1U4LW-B650/2L2T
- 1U Rackmount with 1, 80-PLUS Gold, 400W PSU
- Single Socket AM5 (LGA 1718), supports AMD Ryzen 7000 series processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 4 hot-swap 3.5" SATA drive bays
- 1 FH PCIe4.0 x16
- Supports 1 M.2 (PCIe5.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- 1 HDMI, 1 DisplayPort
- Remote Management (IPMI
Specifications
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 533.4 x 438 x 44.4 mm (21'' x 17.2'' x 1.75'') |
| Support MB | B650D4U-2L2T/BCM |
| Front Panel | |
| Buttons | Power w/ LED, UID w/LED, System reset |
| LEDs | LANs, HDD activity, System health |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 4 Hot-swap 3.5" SATA drive bays |
| Internal Side | 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU] |
| Power Supply | |
| Type | Single PSU |
| Output Watts | 400W |
| Efficiency | 80-PLUS Gold |
| System Fan | |
| Fan | 5 PWM Hot-swap 40x28 mm fans |
| Processor System | |
| CPU | Supports AMD Ryzen 7000 series Processors |
| Socket | Single Socket AM5 (LGA 1718) |
| Thermal Design Power | Up to 170W *Based on Cinebench R23 tool to meet AMD criteria |
| Chipset | AMD B650 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 32GB |
| Max. DIMM Frequency | 5200 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4 |
| Ethernet | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 2 RJ45 (1GbE) 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
EAN: 4711430520018
Doplňkové parametry
| Kategorie: | Servery |
|---|---|
| Záruka: | 24 měsíců / IČ 12 měsíců |
| Hmotnost: | 16 kg |
| EAN: | 4711430520018 |
| Kód výrobce: | 1U4LW-B650/2L2T |
| Položka byla vyprodána… | |
