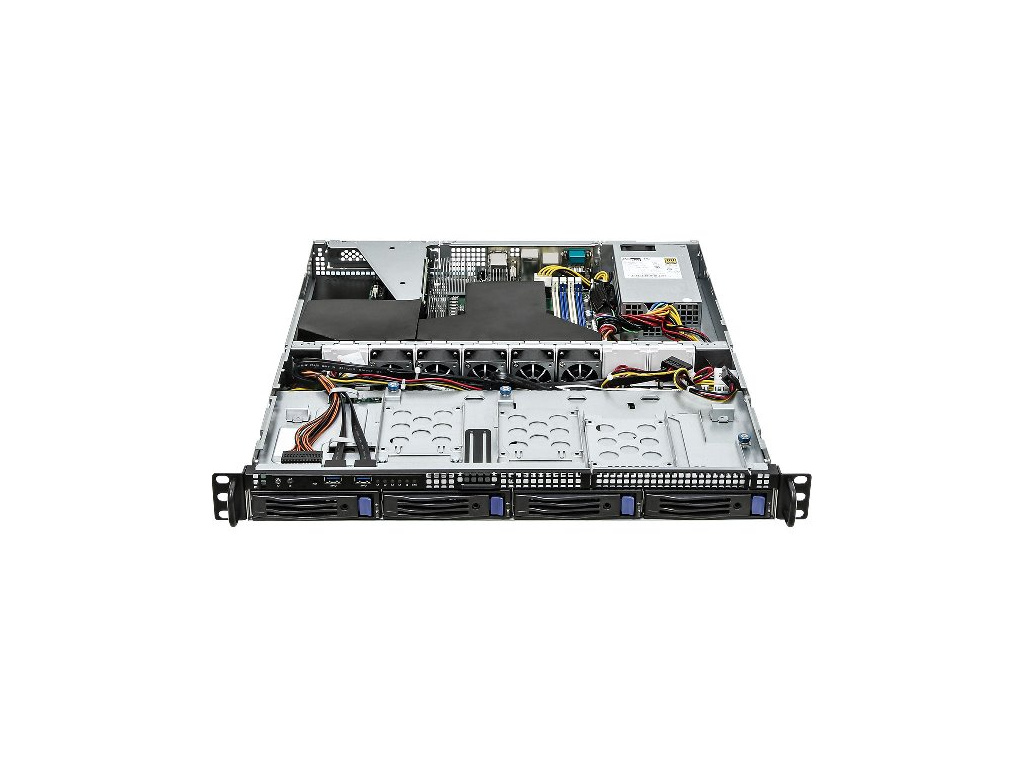

ASRock Rack 1U server AM5, B650, 4x DDR5 ECC, 4x SATA 3,5HS, M.2, PCIe4 x16, 2x 10Gb + 2x 1Gb LAN, 2x 450W, IPMI, 1U4LW-B650/2L2T RPSU
Kód: ALIASBAG1U4LWB6502L2TRPSU
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
- 1U Rackmount with 450W Redundant PSU (1+1)
- Single Socket AM5 (LGA 1718), supports AMD Ryzen 7000 series processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 4 hot-swap 3.5" SATA drive bays
- 1 FH PCIe4.0 x16
- Supports 1 M.2 (PCIe5.0 x4)
- 2 RJ45 (10GbE) by Broadcom BCM57416
- 2 RJ45 (1GbE) by Intel® i210
- 1 HDMI, 1 DisplayPort
- Remote Management (IPMI)
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 533.4 x 482.6 x 44.4 mm (21'' x 19'' x 1.75'') |
| Support MB | B650D4U-2L2T/BCM |
| Front Panel | |
| Buttons | Power w/ LED, UID w/LED, System reset |
| LEDs | LANs, HDD activity, System health |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 4 Hot-swap 3.5" SATA drive bays |
| Internal Side | 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU] |
| Power Supply | |
| Type | 1+1 Redundant PSU |
| Output Watts | 450W |
| AC Input | 100-240V, 50-60Hz |
| System Fan | |
| Fan | 5 PWM Hot-swap 40x28 mm fans |
| Processor System | |
| CPU | Supports AMD Ryzen 7000 series Processors |
| Socket | Single Socket AM5 (LGA 1718) |
| Thermal Design Power | Up to 170W *Based on Cinebench R23 tool to meet AMD criteria |
| Chipset | AMD B650 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 32GB |
| Max. DIMM Frequency | 5200 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4 |
| Ethernet | |
| Additional GbE Controller | Broadcom BCM57416: 2 RJ45 (10GbE) Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 2 RJ45 (1GbE) 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
EAN: 4711430520087
Doplňkové parametry
| Kategorie: | Servery |
|---|---|
| Záruka: | 24 měsíců / IČ 12 měsíců |
| Hmotnost: | 17 kg |
| EAN: | 4711430520087 |
| Kód výrobce: | 1U4LW-B650/2L2T RPSU |
