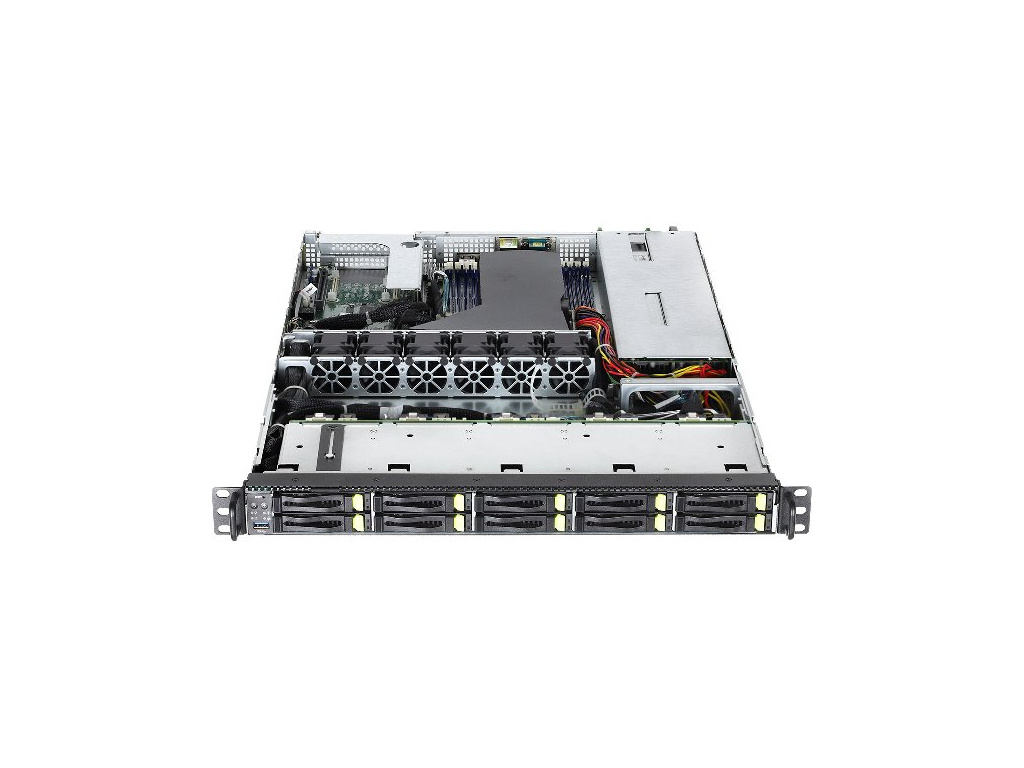

ASRock Rack 1U server 1x SP3 7002, 8x DDR4 ECC R, 10x SATA/NVMe 2,5HS, PCIe4 x16, OCP2, 2x 10Gb LAN, 2x750W, IPMI, 1U10E-ROME/2T
Kód: ALIASBAG1U10EROME2T
Široká síť výdejních míst
Více než 7 000 výdejních míst v ČR
Detailní popis produktu
Specifications
| System | |
| Form Factor | - 1U Rackmount |
| Chassis Model | - 1U10E-ROME/2T |
| Dimensions | - 625 mm X 430 mm X 43.5 mm |
| Support MB | - ATX, 12''x9.6'' (ROMED8QM-2T) |
| Front Panel | |
| Buttons | - Power Button - Reset Button - NMI Button |
| LEDs | - POWER LED - LAN1 LED - LAN2 LED |
| I/O Ports | - 1 x USB 3.0 port |
| External Drive Bay / Storage | |
| Front Side Drive Bay | - 10 Bay 2.5'' SATA (6Gb/s) or NVMe (8Gb/s) Drives |
| Front Side Backplane | - backplane with 10 SATA or NVMe ports |
| Power Supply | |
| Type | - 1U |
| Output Watts | - 2(1+1) 750W Redundant |
| System Fan | |
| Fan | - 4056 mm Fan x 6 |
| Riser card Support | |
| Riser card Type | - 1 x Symmetry Riser card(X16/x16) support 1 x PCIE card |
| Physical Status | |
| Form Factor | - ATX |
| Dimensions | - 12''x9.6'' |
| Processor System | |
| CPU | - Supports AMD EPYC™ 7003* and 7002 Series Processors *A BIOS update is required to support AMD EPYC™ 7003 Series Processors. Please contact ASRock Rack Technical Support for the necessary firmwares. |
| Socket | - Single Socket SP3 (LGA4094) |
| Chipset | - N/A |
| System Memory | |
| Capacity | - 8 DIMM slots; 8 Channels DDR4 memory technology - RDIMM : 32GB, 16GB, 8GB - LRDIMM : 128GB, 64GB |
| Type | - 8 Channels DDR4 memory technology - Support DDR4 3200/2933/2666/2400 RDIMM, and LRDIMM |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe x 16 | - SLOT6: PCIe4.0 x16 |
| Mezzanine slot | -1 x OCP mezzanine A/B |
| Storage | |
| SATA Controller | - 4x SATA3 6.0 Gb/s (from1 x mini SAS HD) |
| Slimline for U.2 | - CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 *2) - CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 *2) - CPU1 X8 (NVME only) - CPU1 X8 (NVME only) - CPU1 X8 (NVME only) - CPU1 X8(SATA Gen3 x 8 or PCIe Gen3 x4 *2) - CPU1 X8 (NVME only) |
| M.2 slot | - 1 (M.2_2: 22110, SATA and PCIe colay(SATA/PCIe x4)) |
| Ethernet | |
| Interface | - 10G by Intel® X550 |
| LAN Controller | - 2 x 10G base-T by Intel® x550 - 1 x RJ45 Dedicated IPMI LAN port by RTL8211E |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 256Mb |
| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 3.2 Gen1 Port | - 2 |
| Lan Port | - 2 x 10G Base-T - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 x COM port |
| UID Button/UID LED | - 1 |
| Internal Connector | |
| SATA DOM | - 1 |
| M.2 | - 1 (M.2:22110 ; SATA and PCIe colay(SATA/PCIe x4)) |
| OCuLink | - 0 |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 6x system Fan (4 front, 2 rear) |
| ATX Power | - 1x (24-pin) + 1x (8-pin) |
| USB 3.2 (Gen1) Header | - 1 ( support 2 ports USB 3.0) |
| Front Panel | - 1 |
| System BIOS | |
| BIOS Type | - 32MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing - MB_A/MB_B/X550/Card side Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
EAN: 4710483930058
Doplňkové parametry
| Kategorie: | Servery |
|---|---|
| Záruka: | 24 měsíců / IČ 12 měsíců |
| Hmotnost: | 20 kg |
| EAN: | 4710483930058 |
| Kód výrobce: | 1U10E-ROME/2T |
