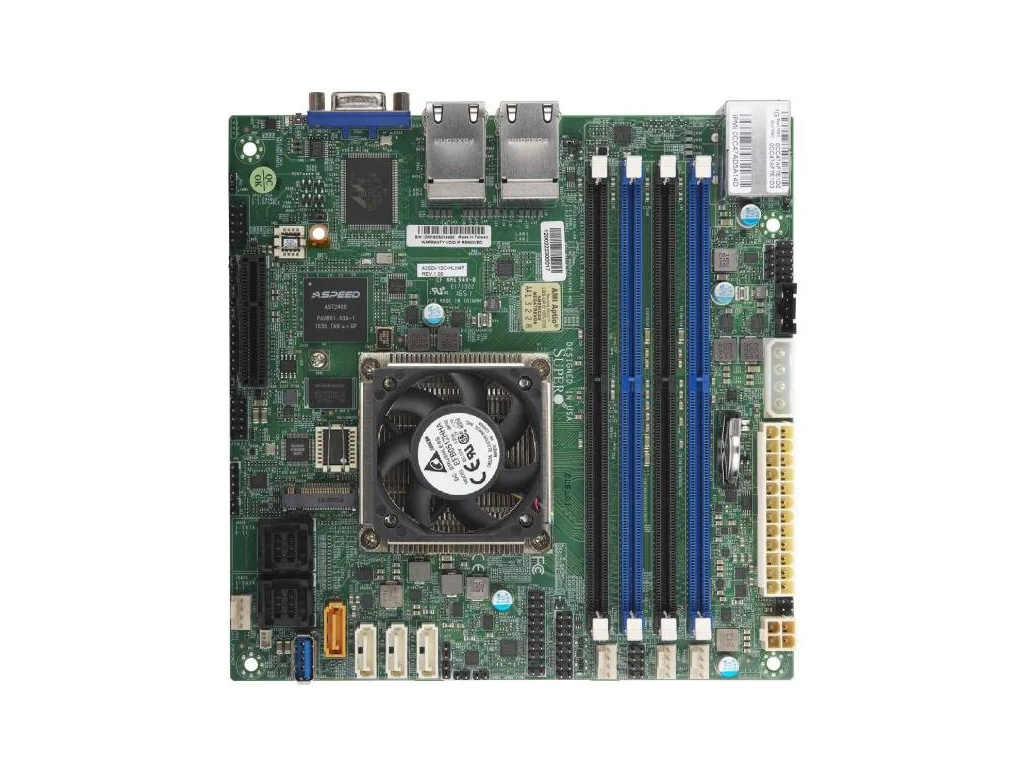

SUPERMICRO mini-ITX MB Atom C3758 (8-core), 4x DDR4 ECC DIMM, 12xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI, MBD-A2SDI-8C+-HLN4F-O

Kód: ALIASBSRA2SDI8CPLUSHLN4F

Neohodnoceno

SUPERMICRO mini-ITX MB Atom C3758 (8-core), 4x DDR4 ECC DIMM, 12xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI, MBD-A2SDI-8C+-HLN4F-O

15 289 Kč 12 636 Kč bez DPH

Vyprodáno

Možnosti doručení
Položka byla vyprodána…

Detailní informace

Ověřený obchod

Více než 23 let na trhu s IT

Sklad

20 000 produktů připraveno skladem

Široká síť výdejních míst

Více než 7 000 výdejních míst v ČR

Doprava zdarma

Při nákupu nad 10tis. Kč doprava zdarma

Detailní popis produktu

Intel Atom Processor C3758,

Single Socket FCBGA1310 supported,

CPU TDP support 25W

Intel Quick Assist Technology

Up to 256GB Registered ECC DDR4-2400MHz,

Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots

Expansion slots:

1 PCI-E 3.0 x4,

M.2 Interface: PCI-E 3.0 x2 and SATA

M.2 Form Factor: 2242, 2280

M.2 Key: M-Key

4 GbE LAN ports

12 SATA3 (6 Gbps) ports

Supports 12V DC power input

I/O: 1 VGA, 1 COM, TPM header

System on Chip

1 USB 3.0 (Type-A)

4 USB 2.0 (2 rear, 2 via headers)

Resources

Optimization

Specifications


Product SKUs

MBD-A2SDi-8C+-HLN4F	A2SDi-8C+-HLN4F



Physical Stats

Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)



Processor

CPU	Intel® Atom® Processor C3758 Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
Core	Up to 8 cores, 8 threads / 16MB Cache
Note



System Memory

Memory Capacity	4 DIMM slots Up to 256GB ECC RDIMM, DDR4-2400MHz; Up to 64GB ECC/non-ECC UDIMM, DDR4-2400MHz
Memory Type	2400/2133/1866/1600MHz ECC/non-ECC DDR4 RDIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset	System on Chip
SATA	SoC controller for 12 SATA3 (6 Gbps) ports
IPMI	ASPEED AST2400 BMC
Graphics	ASPEED AST2400 BMC
Network Controllers	Quad LAN with Intel® C3000 SoC, 1GbE



Input / Output

LAN	4 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 port(s) (2 rear; 2 via header) 1 USB 3.2 Gen1 port(s) (1 type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	1 SuperDOM (Disk on Module) ports
TPM	1 TPM Header


Expansion Slots

PCI-E	1 PCI-E 3.0 x4
M.2	M.2 Interface: SATA; PCI-E 3.0 x2 Form Factor: 2280, 2242 Key: M-Key



System BIOS

BIOS Type	AMI UEFI
BIOS Features	UEFI 2.4 SMBIOS 2.7.1



Management

Software	SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0, Watchdog
System Management Software	SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection



PC Health Monitoring

Voltage	VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID
Temperature	CPU thermal trip support
FAN	4x 4-pin fan headers (up to 4 fans) Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features	WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector



Operating Environment

Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Parts List

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-A2SDi-8C+-HLN4F	1	A2SDi-8C+-HLN4F Motherboard
I/O Shield	MCP-260-00084-0N •	1	Standard I/O Shield for A2SDi-8C+-HLN4F
SATA Cables	CBL-0044L •	2	57.5CM SATA FLAT S-S PBF

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-A2SDi-8C+-HLN4F	1	A2SDi-8C+-HLN4F Motherboard
I/O Shield	MCP-260-00084-0N •	1	Standard I/O Shield for A2SDi-8C+-HLN4F
QRG	MNL-1951-QRG	1	Motherboard Quick Reference Guide
SATA Cables	CBL-SAST-0616 • CBL-0044L •	2 4	MINI SAS HD-4 SATA, INT, 50CM, 50CM SB, 30AWG 57.5CM SATA FLAT S-S PBF

Optional Parts List
Name	Part Number	Qty	Description
1U I/O Shield	MCP-260-00079-0N MCP-260-00085-0B	-- --	1U I/O Shield for A2SDi-8C+-HLN4F in SC813/512 Chassis 1U I/O Shield for A2SDi-8C+-HLN4F in SC505/504 Chassis

Chassis (Optimized for A2SDi-8C+-HLN4F)

Embedded Compact	1U	2U	3U	Mid/Mini-Tower	4U/Tower
				SC721TQ-250B

= Most optimized Chassis for SuperServer Configuration

Blue color = Compatible

Green color = Global SKU & Compatible

Red dot & green color = Optimized + Global SKU

EAN: 672042268498

Doplňkové parametry

Kategorie:	Mini ITX
Záruka:	3 roky
Hmotnost:	1.28 kg
EAN:	672042268498
Kód výrobce:	MBD-A2SDI-8C+-HLN4F-O
