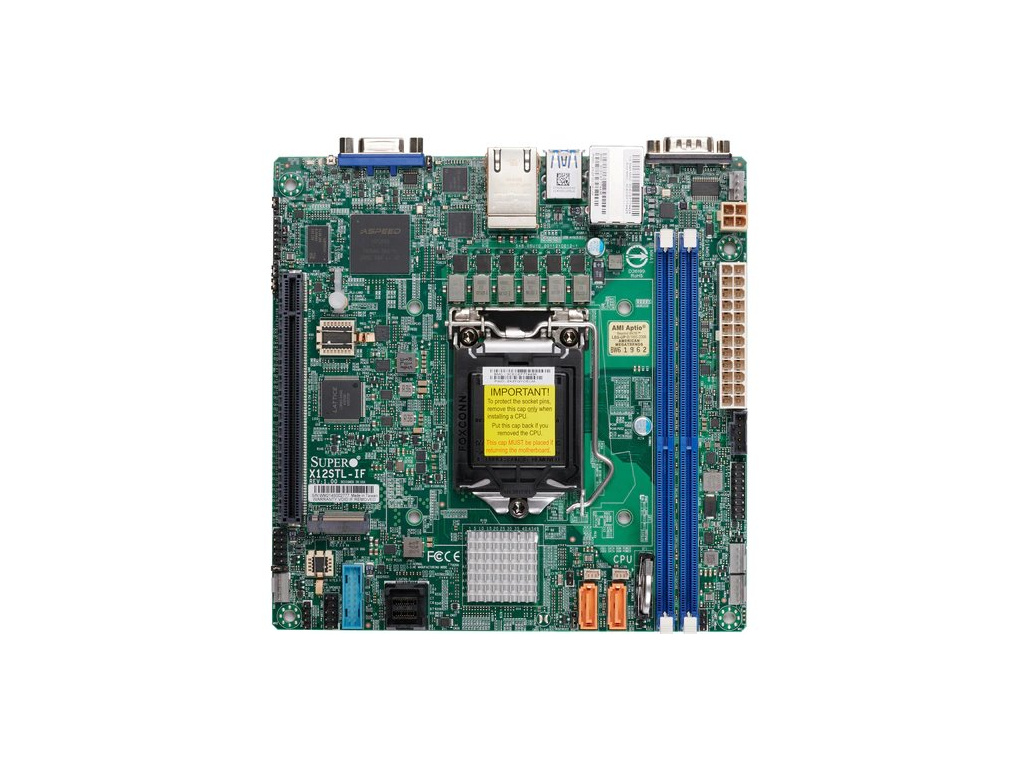

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 2xDDR4, 6xSATA3, M.2, 1xPCIe4.0 x16, VGA, 2x LAN, IPMI, mini-ITX, MBD-X12STL-IF-O

Kód: ALIASBSRMBDX12STLIFO

Neohodnoceno

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 2xDDR4, 6xSATA3, M.2, 1xPCIe4.0 x16, VGA, 2x LAN, IPMI, mini-ITX, MBD-X12STL-IF-O

7 999 Kč 6 611 Kč bez DPH

(1 ks)

Můžeme doručit do: 20.12.2024 Možnosti doručení

Detailní informace

Ověřený obchod

Více než 23 let na trhu s IT

Sklad

20 000 produktů připraveno skladem

Široká síť výdejních míst

Více než 7 000 výdejních míst v ČR

Doprava zdarma

Při nákupu nad 10tis. Kč doprava zdarma

Detailní popis produktu

Key Features

Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel® C252

Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots

1 PCI-E 4.0 x16

M.2 Interface: 1 PCI-E 3.0 x4

M.2 Form Factor: 2280

M.2 Key: M-Key

Dual LAN with Intel® i210 Gigabit Ethernet Controller

Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 VGA D-Sub Connector port

2 SuperDOM with built-in power

4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)

Specifications


Product SKUs

MBD-X12STL-IF	X12STL-IF



Physical Stats

Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)



Processor

CPU	10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core	Up to 8 cores



System Memory

Memory Capacity	2 DIMM slots Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type	3200/2933/2666MHz SDRAM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors



On-Board Devices

Chipset	Intel® C252
SATA	Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	ASPEED AST2600 BMC
Network Controllers	Dual LAN with Intel® i210 Gigabit Ethernet Controller



Input / Output

SATA	6 SATA3 (6Gbps) port(s)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 port(s) (2 rear; 2 via header) 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header


Expansion Slots

PCI-E	1 PCI-E 4.0 x16
M.2	M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280 Key: M-Key



System BIOS

BIOS Type	256MB UEFI
BIOS Features	ACPI 6.0 SMBIOS 3.3 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0



Management

Software	SuperDoctor® 5, SUM, SPM, SSM, IPMI2.0, Watchdog
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management



PC Health Monitoring

Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	4x 4-pin fan headers (up to 4 fans) Thermal control tachometer fan connectors Fan speed control 4 fans with tachometer monitoring Overheat LED indication
Other Features	WOL UID M.2 NGFF connector Dual Cooling Zones CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss Chassis intrusion detection ACPI power management



Operating Environment

Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)

Parts List

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X12STL-IF	1	X12STL-IF Motherboard
I/O Cables	CBL-0044L •	2	-
I/O Shield	MCP-260-00042-0N •	1	-

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X12STL-IF	1	X12STL-IF Motherboard
I/O Cables	CBL-0044L •	2	-
I/O Shield	MCP-260-00042-0N •	1	-
QRG	MNL-2368-QRG	1	-

EAN: 672042461677

Doplňkové parametry

Kategorie:	Mini ITX
Záruka:	3 roky
Hmotnost:	1.28 kg
EAN:	672042461677
Kód výrobce:	MBD-X12STL-IF-O
