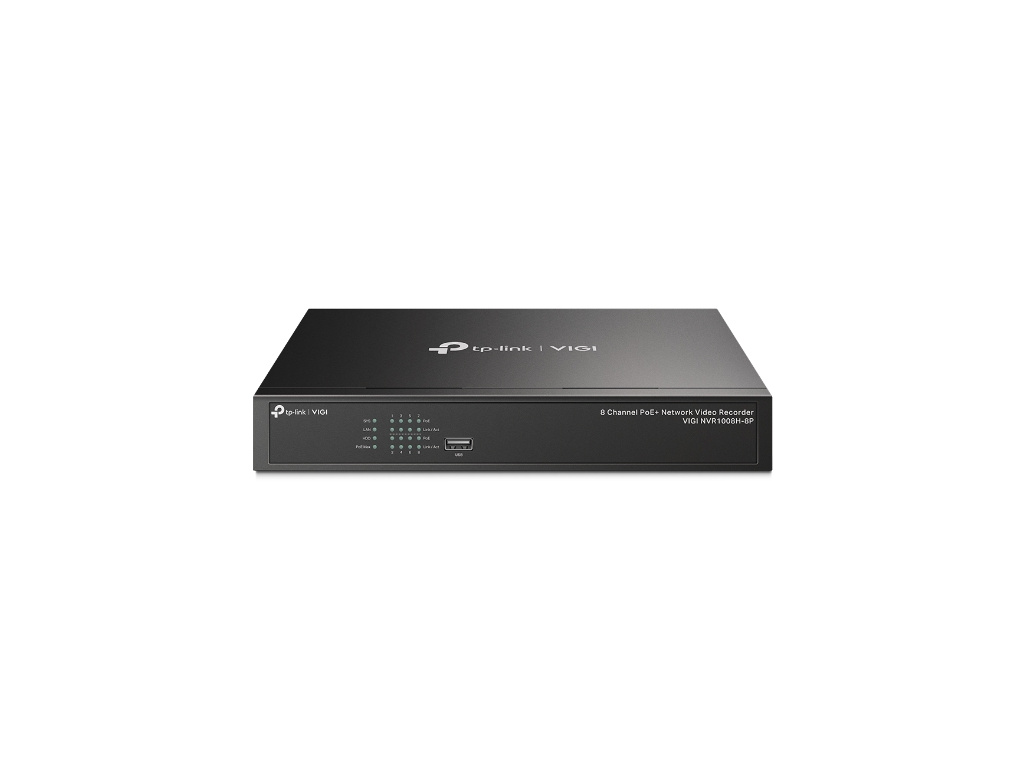

VIGI NVR1008H-8P 8 Channel PoE Network Video Rec., VIGI NVR1008H-8P

Detailní popis produktu

VIGI NVR1008H-8P

---

Shows more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels.
Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

---

Features
4K HDMI Video Output & 16MP Decoding Capacity
Simplified Deployment with PoE+
8-Channel Simultaneous Playback
H.265+
ONVIF Ensures Compatibility
Plug & Play
24/7 Continuous Recording
Remote Monitoring
Flexible Installation
Two-Way Audio

---

Specifications
NETWORK Protocol
TCP/IP, DHCP, DNS, NTP, UPnP Incoming Bandwith
80 Mbps Outgoing Bandwidth
60 Mbps
GENERAL Package Contents
VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide Operating Temperature
-10–55 °C Dimensions( W X D X H )
294 × 180 × 44 mm PoE
Standard: 802.3af/at
PoE Ports: Ports 1-8
PoE Budget: 53 W External Power Supply
53.5V DC/1.31 A Power Consumption
2.38 W (without disk)
12.94 W (with disk)
VIDEO/IMAGE Video Input
8-Channel IP Video Input, up to 8 MP Resolution Recording Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF HDMI Output Resolution
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA Output Resolution
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,
DECODING Decoding Format
H.265+/H.265/ H.264+/H.264 Live View/Playback Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback
8 Channel Capability
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
HARD DISK SATA
1 SATA Interface Capacity
Up to 10 TB
INTERFACES Network Interface
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface
2× USB 2.0

EAN: 4895252503111
